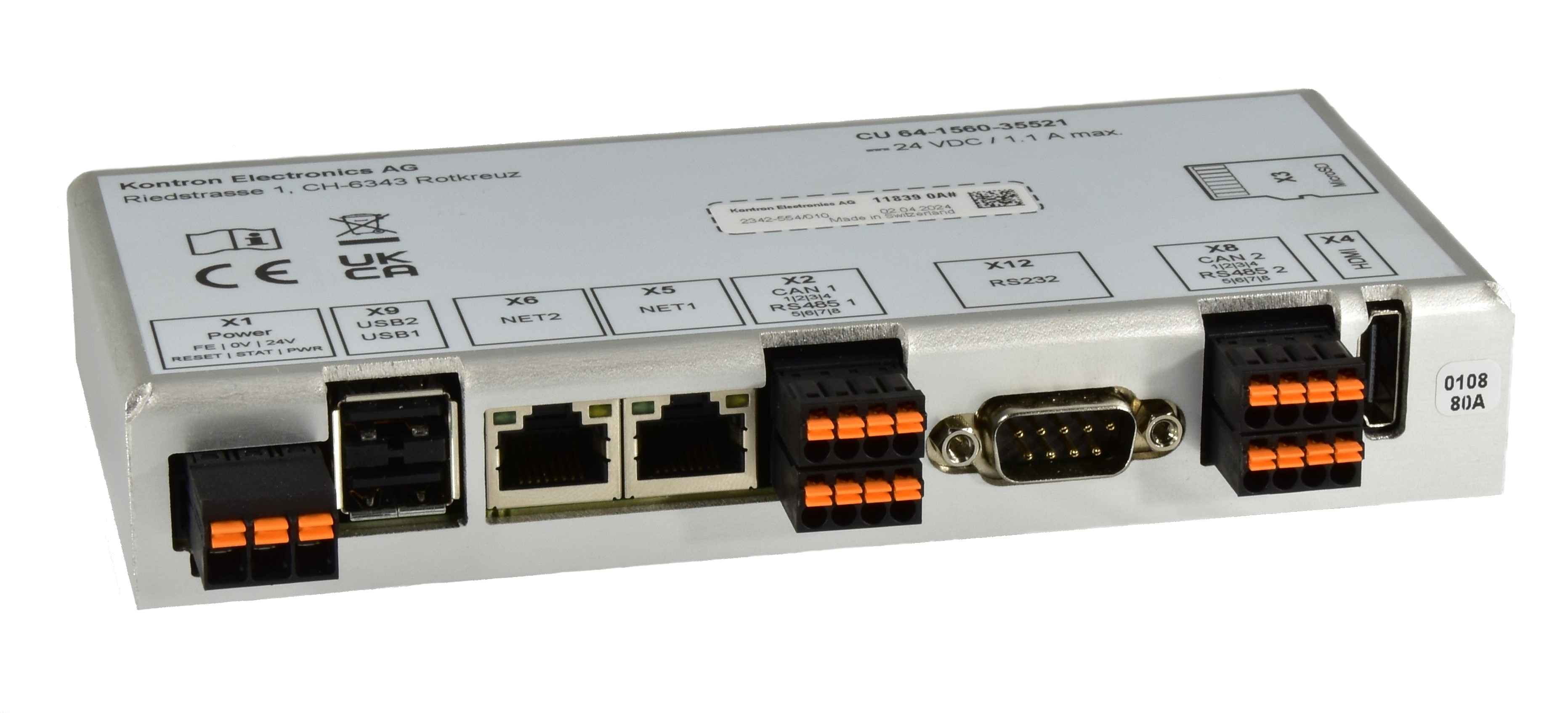

CU Control Unit 6x

Robust industrial PC based on NXP Arm® i.MX8M Plus

Specifications

NXP Arm® i.MX8M Plus Quad Core, 1.6 GHz
Optional internal, plugable Extensions for various requirements
Operating System: Embedded Linux (Yocto Distribution), Optional CODESYS® SoftSPS

Download Datasheet

Features

CPU	NXP Arm® i.MX8M Plus Quad Core, 1.6 GHz

DRAM DDR4

1 GByte, soldered (up to 4 GByte)

eMMC	4 up to 32 GByte

NOR-FLASH

2 MByte (up to 16 MByte)

FRAM	32 kByte (up to 512 kByte)

SD CARD

microSD slot (up to SDXC-format)

USB	2x USB 2.0 (Host)

Ethernet

2x Ethernet (10/100/1000)
independent, 1x TSN capable

CAN	1x CAN-FD (isol.), optional: 2x CAN FD

Serial Ports

1x RS485 (isol.), optional: 2x RS485
1x RS232

Display

1x HDMI 1.4

INTERNAL, PLUGGABLE EXTENSIONS (OPTIONAL)

GPIO, HDMI, SPI, i²C, Audio 2x 2W,
MIPI CSI 4-lane, M.2 Slot (Key E, B)

Security

TPM

Real Time Clock

RTC with SuperCAP (>5 days)

System

2x status LED, Reset-button

Construction

IP20, aluminium

Cooling

Fanless

Mounting

For mounting on 35mm mounting rail acc. to EN 60715

Certification

CE (UL/cUL planed)

Power Supply

24 VDC +/- 20 %

EMC	EN 61000-6-2 (immunity), EN 61000-6-4 (emission)

Operating Temperature

0 °C … +55 °C (optional -20 °C … +55 °C)

Storage Temperature

-20 °C … +70 °C

SHOCK (EN 60068-2-27)

15G 11ms (half sine)

VIBRATION (EN 60068-2-6)

10-500Hz 1G/3 axis

Humidity

10%-90%, non-condensing

Altitude

Up to 9.800 ft (3000 m)

Operating System

Embedded Linux (Yocto Distribution)

SoftPLC (Option)

CODESYS® V3

Protocols (Option)

EtherCAT, Modbus TCP/RTU, Profinet,
Ethernet IP, CANopen, OPC UA,
IIoT Libraries (MQTT, HTTPS; Azure,
AWS, Google..)
