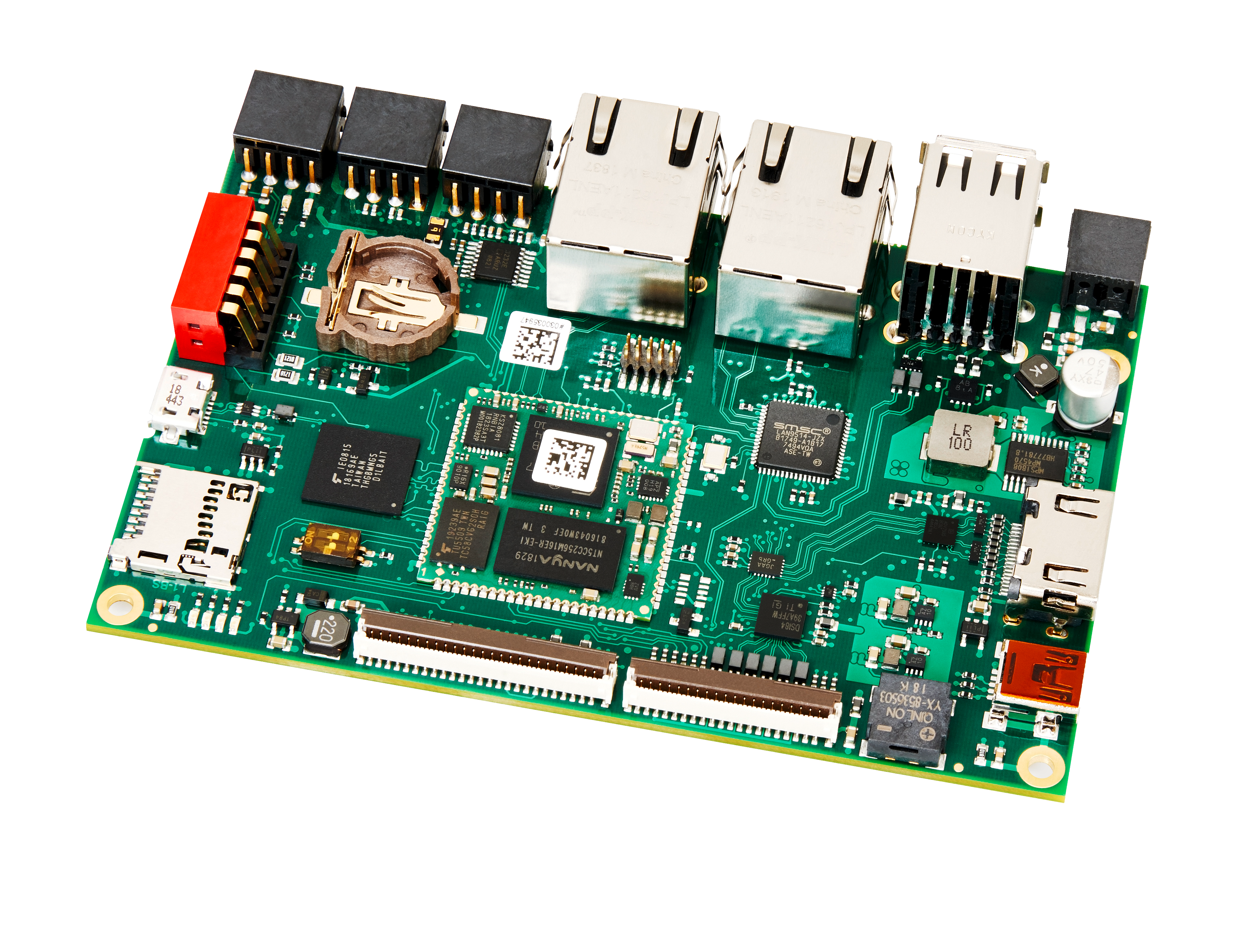

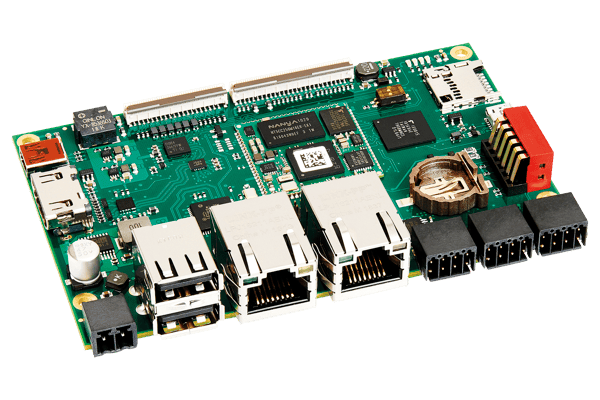

Baseboard BL STM32MP157

The BL STM32 MP157 CPU board from Kontron Electronics is a versatile embedded solution designed for demanding professional applications. It focuses on high performance, a wide variety of interfaces, and easy integration into a broad range of applications. The combination of powerful hardware and pre-installed embedded Linux makes the board an ideal choice for control, visualization, and communication tasks in the context of Industry 4.0 and IoT.

Performance & Architecture

The architecture of the board is based on the STM32 MP157A, which unites multiple integrated processor cores: two Arm® Cortex®-A7 cores running at up to 650 MHz for demanding tasks. The memory configuration includes 512 MB RAM, supplemented by 512 MB NAND Flash, up to 64 GB eMMC, and a microSD card slot, allowing scalable memory configuration. Its compact design simplifies installation in a variety of systems, while the pre-installed embedded Linux operating system serves as a stable foundation for a wide range of software solutions.

Communication Interfaces

Modern display connections are available via HDMI, LVDS, and RGB. Touchscreen integration is enabled through I²C and USB touch, and the variety of interfaces allow for the straightforward connection of external modules and peripherals.

Application Areas & Advantages

The BL STM32 MP157 board is typically used in industrial control systems, HMI/MMI systems, communication solutions, visualization, as well as IoT and Industry 4.0 applications. The broad range of interfaces and high cost-effectiveness enable flexible use for a diverse array of tasks.
