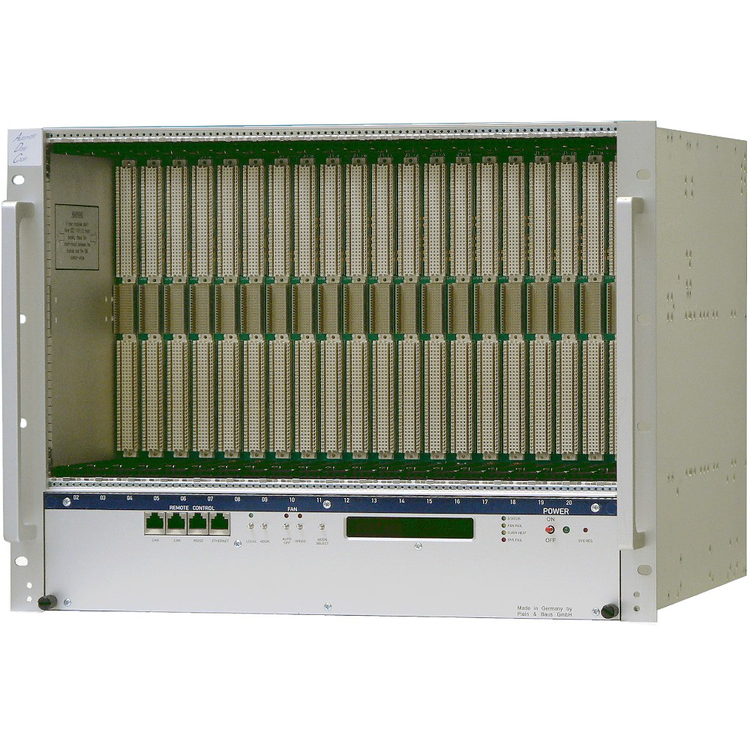

6U VME64x 6021 Full Size Chassis

High-performance 21-slot 6U VME/VME64 crate with modular design, low-noise high-power supply, and advanced monitoring and cooling systems.

Specifications

Mechanics: 6U × 160 mm, IEEE 1101.10 compliant, EMC/ESD-protected
Slots: 21 VME/VME64 (J1/J2 backplane)
Power Supply: UEP 6021 series, modular, up to 3 kW, ultra-low-noise VHF switching
Ripple: typ. < 10 mV(pp) (< 3 mV(rms) for <12 V outputs)
Interfaces: Ethernet, CAN-bus for remote monitoring and control
Cooling: UEL 6020 fan tray with individually controlled DC fans, temperature-controlled

Download Datasheet

"The VME6021 full-size crate series represents the latest generation of WIENER’s integrated 19″ VME/VME64 packaging systems for 6U × 160 mm boards. Built for demanding applications in data acquisition, control, and test instrumentation, it combines rugged mechanical construction with ultra-low-noise power delivery and intelligent cooling. The chassis features a monolithic 21-slot backplane with active termination and daisy-chain management, free rear access for transition modules, and options for rear transition cages in multiple depths.
The modular system consists of the UEV 6021 bin, UEL 6020 fan tray, and UEP 6021 power supply, enabling flexible configurations and upgrades. The microprocessor-controlled power supply offers programmable voltage and current limits, multiple protection mechanisms, and delivers up to 3 kW of output power. Cooling is provided by a bottom-to-top airflow via long-life, speed-controlled DC fans with integrated monitoring. Full local and remote monitoring is available through high-visibility LED displays, Ethernet, and CAN-bus interfaces, ensuring reliable performance in critical laboratory or industrial environments."

Features

Construction

Rugged steel-aluminum chassis with 5 mm heavy-duty side plates, precision-mounted horizontal rails

Backplane

Monolithic 21-slot 6U VME/VME64 (J1/J2), 8-layer PCB, active termination, automatic daisy-chain

Rear Access

Free rear access at J2; optional 3U transition cages in depths 80–220 mm

Cooling

UEL 6020 EX fan tray with three individually controlled DC fans, MTBF > 65 000 h; adjustable 1200–3600 RPM; temperature-controlled mode with programmable thresholds

Monitoring & Control

Alphanumeric LED display for fan tray, bin, and PSU parameters; local/remote control of all crat

Power Supply

Modular UEP 6021 with “Cavity-VHF” low-noise switching technology, < 3 mV(pp) for low-voltage rails; up to 3 kW output power

Electrical Protection

Overvoltage crowbar (125% of nominal), undervoltage shutdown, overcurrent, overtemperature, fan fail detection

Modularity

Compatible with multiple PSU sizes (3U or 6U), configurable outputs, and upgradeable fan trays and bins

Compliance

CE, EN 60950, ISO 380, VDE 0805, UL 1950, C22.2.950

Environmental

Operating 0–50 °C without derating, storage –30 °C to +85 °C, MTBF electronics > 100 000 h

Compliance

CE conformity, meets EN 60950, ISO 380, VDE 0805, UL 1950, C22.2.950 standards

Operating Conditions

0–50 °C without derating, storage –30 °C to +85 °C

EMC Immunity & Emissions

Meets EN 61000-6-3 (RF emission) and EN 61000-6-2 (immunity) including ESD, burst, surge, and radiated fields

Downloads

Datasheets

6U VME64x 6021 Full Size Chassis Datasheet
[ 6u-vme64x-6021-full-size-chassis_kontron_datasheet.pdf, 443.64 KB, Aug.28.2025 ]

Manuals

General Safety Instruction
[ vpx-360-manual.pdf, 5.67 MB, Dec.02.2025 ]

Services

Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]

Variants

VME 6021-611 – Backplane		VME/VME64, +5V/115A, +12V/23A, –12V/23A
VME 6021-613 – Backplane		VME/VME64, +5V/230A, +12V/23A, –12V/23A
VME 6021-614 – Backplane		VME/VME64, +5V/345A, +12V/23A, –12V/23A
VME 6021-620 – Backplane		VME/VME64, +5V/115A, +12V/46A, –12V/46A
VME 6021-621 – Backplane		VME/VME64, +5V/230A, +12V/46A, –12V/46A
VME 6021-622 – Backplane		VME/VME64, +5V/345A, +12V/46A, –12V/46A
