6U VME64x 195-x Mini Chassis Datasheet
352.59 KB | March 26, 2026
6U VME64x 195-x Mini Chassis

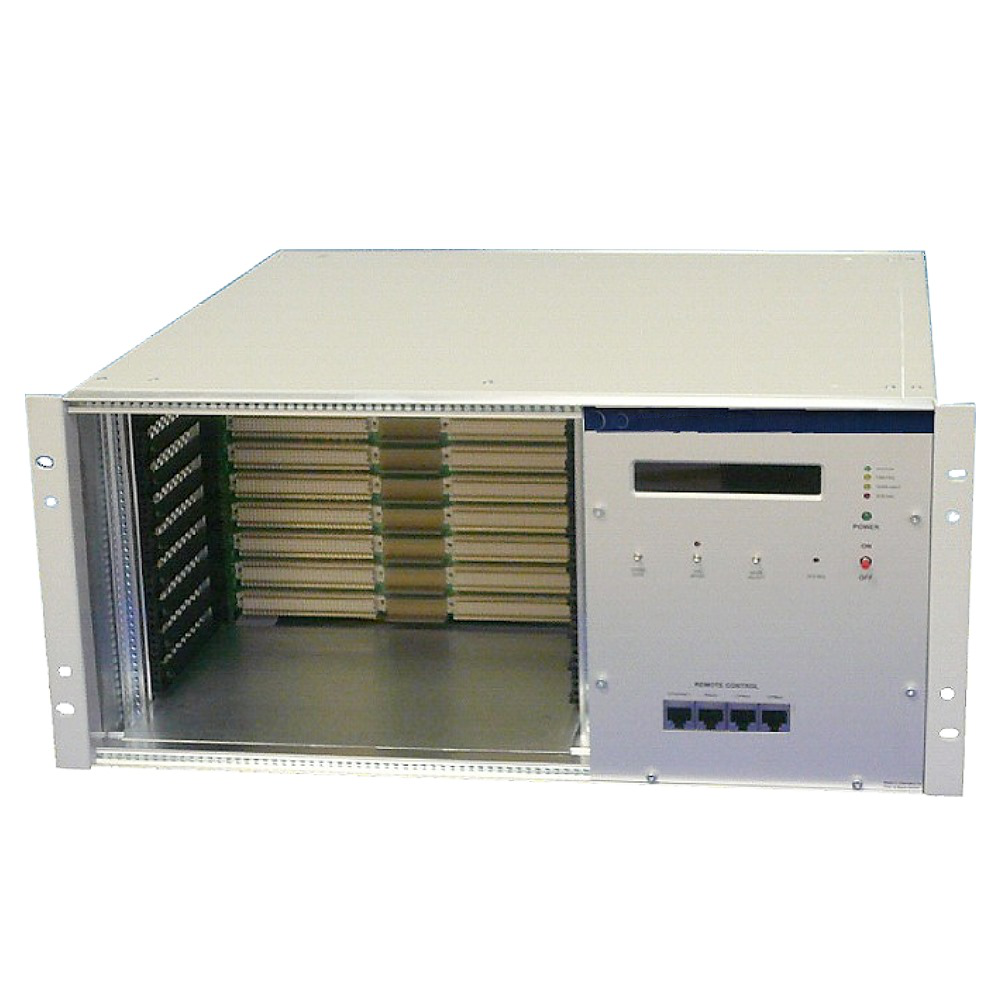

Compact 9-slot VME64x crate with integrated low-noise PSU and adaptive cooling for flexible desktop, upright, or 19″ rack use.
- Mechanics: 6U × 160 mm, IEEE 1101.10 compliant, EMC/ESD-protected
- Slots: 9 VME64x (optional P0 connectors)
- Power Supply: 650 W standard (up to 1000 W), low-noise VHF switching
- Ripple: typ. < 10 mV(pp) or < 3 mV(rms)
- Interfaces: Ethernet, RS232, CAN-bus
Product Information
The VME195-x mini crate is designed for small-scale but demanding VME64x installations. It accommodates up to nine 6U × 160 mm modules in a rugged, IEEE 1101.10 compliant chassis with enhanced EMC and ESD protection. The system integrates a microprocessor-controlled low-noise power supply, delivering up to 1000 W output power with exceptional ripple performance. Cooling is provided by an adjustable DC blower with temperature-dependent speed control, ensuring optimal airflow and low acoustic noise. The crate offers free rear access for transition modules, dedicated cable routing between front and rear card cages, and space for 2.5″ drives. With built-in remote management via Ethernet, RS232, and CAN-bus, and multiple layers of electronic protection, the VME195-x provides high reliability for both laboratory and industrial applications.
Technical data
| Mechanical Design | IEEE 1101.10 compliant enclosure with enhanced EMC/ESD shielding |
|---|---|
| Backplane | Monolithic 9-slot VME64x backplane, optional P0 connectors, free rear access for 6U transition modules |
| Transition Cage | Standard for 6U × 80 mm modules, provisions for 120 mm and 160 mm modules, custom depths on request |
| Covers & Cable Management | Front/rear covers for module protection, cable duct with space for 2.5″ hard or floppy drives |
| Monitoring & Control | Microprocessor-controlled system with alphanumeric high-visibility LED display and four status LEDs |
Variants
Select variants here
VME 195-x – Backplane
J1/J2 VME64x, +5V/45A, +3.3V/45A, +12V/11.5A, –12V/11.5A
The VME195-x mini crate is designed for small-scale but demanding VME64x installations. It accommodates up to nine 6U × 160 mm modules in a rugged, IEEE 1101.10 compliant chassis with enhanced EMC and ESD protection. The system integrates a microprocessor-controlled low-noise power supply, delivering up to 1000 W output power with exceptional ripple performance. Cooling is provided by an adjustable DC blower with temperature-dependent speed control, ensuring optimal airflow and low acoustic noise. The crate offers free rear access for transition modules, dedicated cable routing between front and rear card cages, and space for 2.5″ drives. With built-in remote management via Ethernet, RS232, and CAN-bus, and multiple layers of electronic protection, the VME195-x provides high reliability for both laboratory and industrial applications.
VME 195-xP0 – Backplane
J1/J0/J2 VME64x, +5V/45A, +3.3V/45A, +12V/11.5A, –12V/11.5A
The VME195-x mini crate is designed for small-scale but demanding VME64x installations. It accommodates up to nine 6U × 160 mm modules in a rugged, IEEE 1101.10 compliant chassis with enhanced EMC and ESD protection. The system integrates a microprocessor-controlled low-noise power supply, delivering up to 1000 W output power with exceptional ripple performance. Cooling is provided by an adjustable DC blower with temperature-dependent speed control, ensuring optimal airflow and low acoustic noise. The crate offers free rear access for transition modules, dedicated cable routing between front and rear card cages, and space for 2.5″ drives. With built-in remote management via Ethernet, RS232, and CAN-bus, and multiple layers of electronic protection, the VME195-x provides high reliability for both laboratory and industrial applications.
