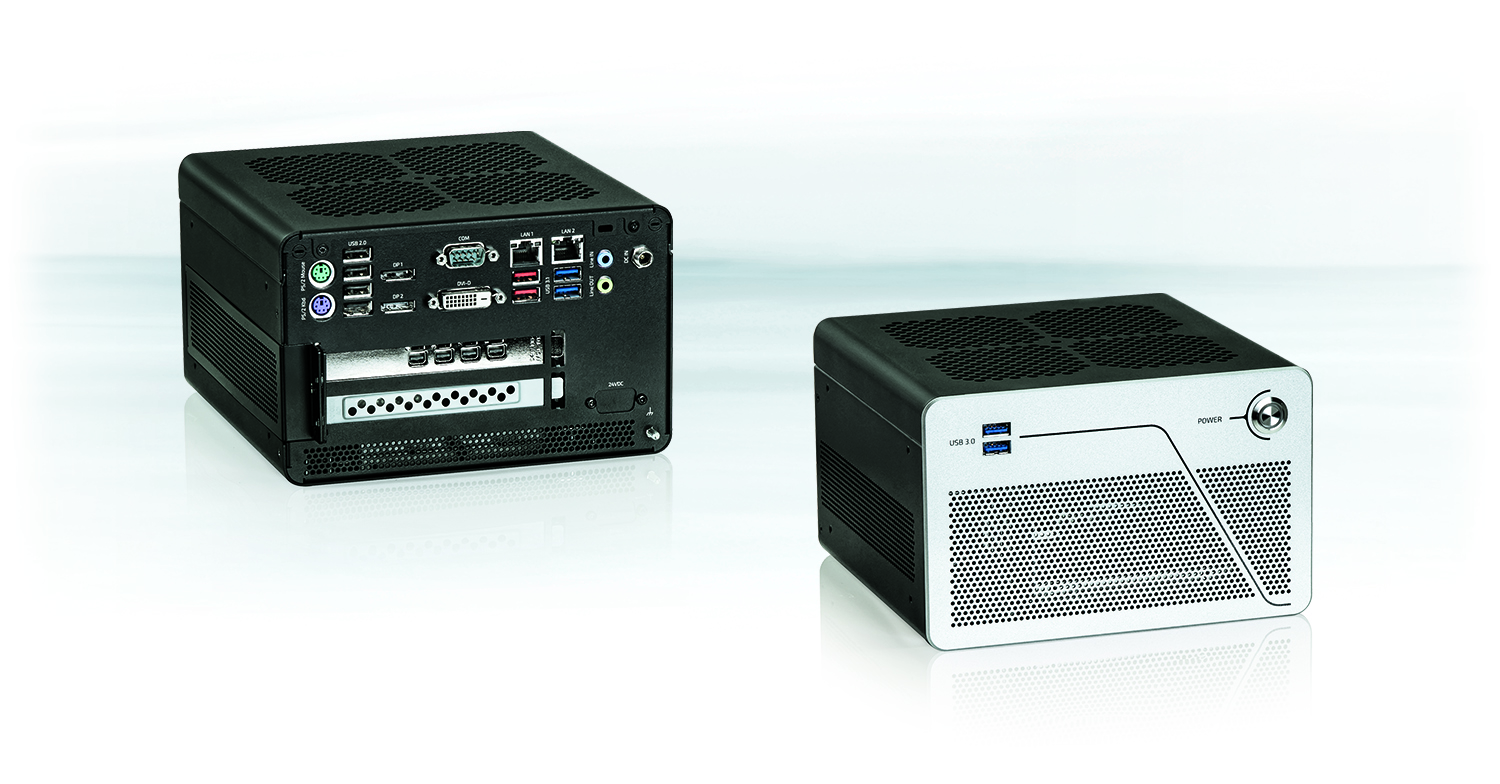

Kontron Embedded Box-PC KBox B-202-CFL now with 9th Gen Intel® Core™ processors for performance-hungry applications

Kontron Embedded Box-PC KBox B-202-CFL now with 9th Gen Intel® Core™ processors for performance-hungry applications

Strong computing performance with compact design and a maximum of expandability

Augsburg, February 13, 2020 -  Kontron, a leading global provider of IoT/Embedded Computing Technology (ECT), as of now offers its KBox B-202-CFL Embedded Box-PC with Intel® Core 9th generation processors, which with up to eight processor cores provide a performance boost with constant power dissipation. Thus, the KBox B-202-CFL effortlessly handles computationally complex processes and large amounts of data. The Embedded Box-PC is not only characterised by high performance, but also by a maximum of expandability and a low noise level (maximum 34 dB(A)). Highlights include the expansion options featuring up to two PCIe x8 cards or one PCIe x16, therefore graphics or network cards can easily be added. This makes the KBox B-202-CFL ideal for demanding applications such as high-end image processing, SCADA/MES applications, artificial intelligence and machine learning. It is also certified according to EN55032 Class B, which means it complies with stricter radio interference limits than Class A. This makes it suitable not only for use in industrial environments but also for residential and commercial applications or in their immediate vicinity. This and its modern design also make the KBox B-202-CFL the ideal computer for architecture and graphic design offices as well as music studios..

At the core of the KBox B-202-CFL is a Kontron motherboard in the mini-ITX form factor (170x170 mm) with a CPU with up to eight processor cores: Depending on requirements, Intel® Core i3/i5/i7 processors of the eighth or ninth generation can be selected.

The KBox B-202-CFL offers two Ethernet ports 10/100/1000 MBit/s (WoL), as well as various mass storage devices. As an alternative to a 2.5" SSD and an M.2 SSD, a Raid system with 2x M.2 SSD and a DVD drive can be installed. Further options with up to four mass storage devices are available on request. The system features two DisplayPorts V1.2, one DVI-D connection, numerous interfaces, such as four USB 2.0, four USB 3.1 Gen 1, two USB 3.1 Gen 2 ports, as well as a serial interface (COM1/RS232).

The supported operating system is Windows® 10 IoT Enterprise. The compact housing with the dimensions 190x120x190 mm is made of hot-dip galvanized sheet steel (EN10215) and aluminium. The Box-PC is equipped with an almost silent fan and can be operated at a temperature range from 0 to 45 degrees Celsius.

For more information, please visit: https://www.kontron.com/products/systems/embedded-box-pc/kbox-b-series/kbox-b-202-cfl.html



Follow Kontron:




About Kontron – Member of the S&T Group

Kontron is a global leader in IoT/Embedded Computing Technology (ECT). As a part of technology group S&T, Kontron offers a combined portfolio of secure hardware, middleware and services for Internet of Things (IoT) and Industry 4.0 applications. With its standard products and tailor-made solutions based on highly reliable state-of-the-art embedded technologies, Kontron provides secure and innovative applications for a variety of industries. As a result, customers benefit from accelerated time-to-market, reduced total cost of ownership, product longevity and the best fully integrated applications overall. For more information, please visit: www.kontron.com
