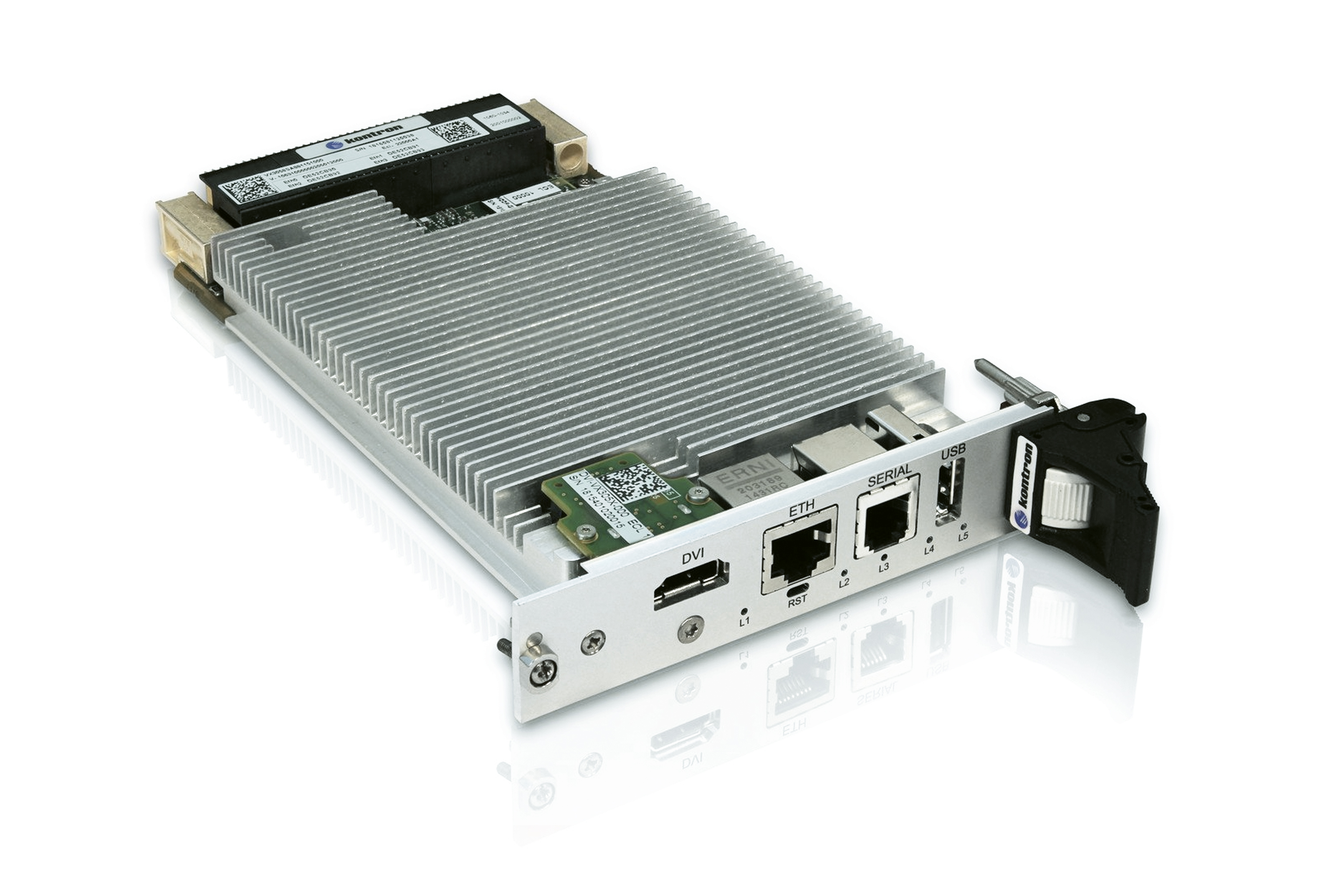

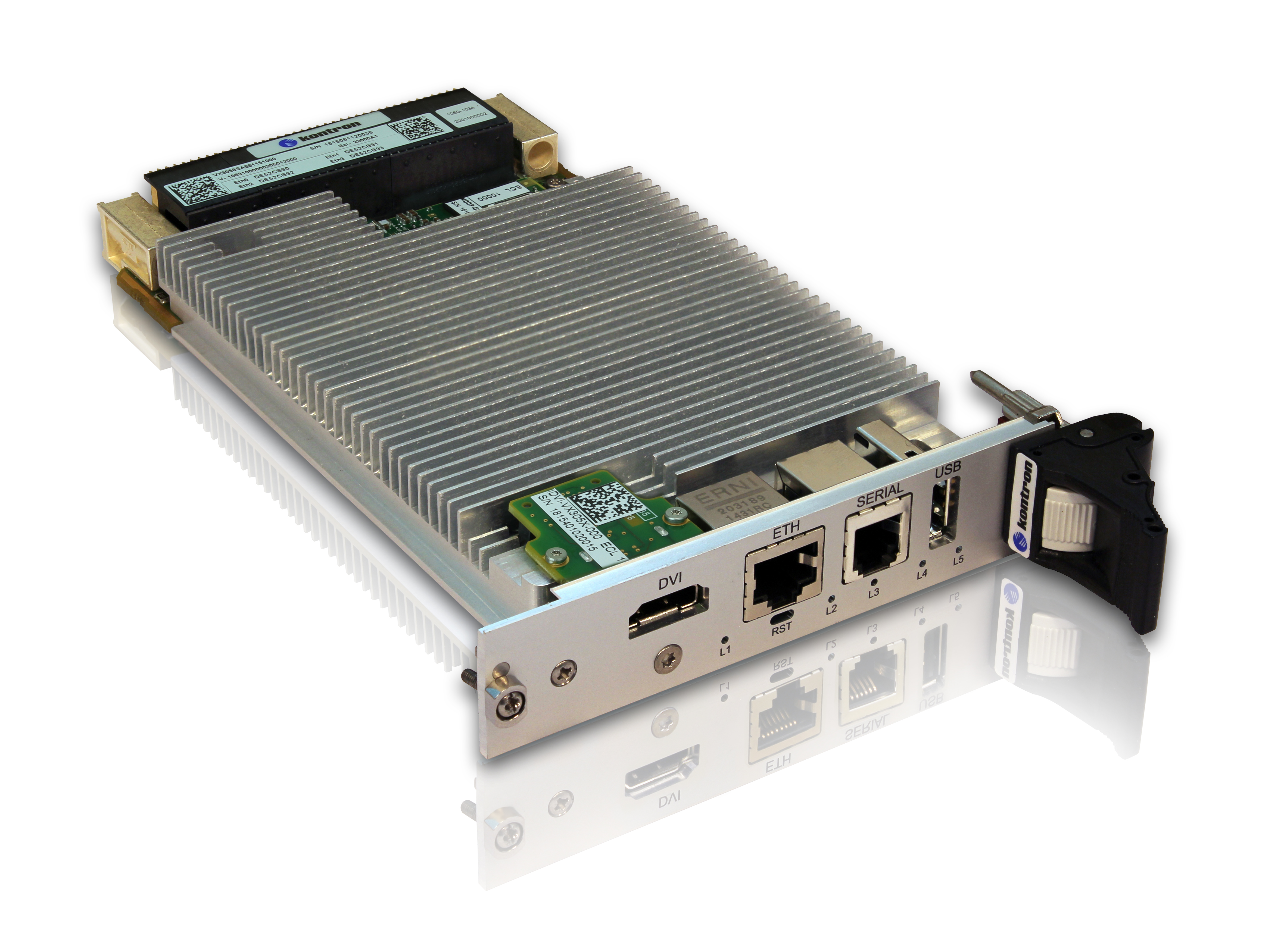

VX3058
Octo Core Intel® Xeon® Processor VPX Server Blade
Mouseover Zoom loading...
Spezifikationen
- Fit für Virtual Machines und HPEC Anwendungen
- Erweiterter Life Cycle und 10 Jahre Chip-Zuverlässigkeit
- Zweifaches 10 Gigabit Ethernet, x8 PCI Express Gen3
- 8 Core Xeon® Processor D, 16 GB DDR4 mit ECC
Kontron's 3u VPX Single Board Computer VX3058 is based on the highly integrated 8-core Intel® Xeon® D architecture, supporting Dual 10 Gigabit Ethernet, high bandwidth PCI Express 3.0, and high speed DDR4 memory. It is consequently SWaP-C optimized with versatile mezzanine options for XMC, storage, graphics, M.2, and I/O. Combined with Kontron's advanced switch technologies and VxFabricTM for significantly higher I/O bandwidth, and combined with centralized health management, VX3058 is simply the best choice for high performance embedded computing platforms.
VX3058 brings server class applications into the battlefield
Typical programs are :
- radar, sonar
- imaging systems
- airborne fighter and UAV radar
- long term programs in harsh environments
VX3058 and leading edge architecture for Multi-CPU computing nodes
VX3058 provides two 10 GBASE-KR ports and 8 lanes Gen3 PCI Express to the backplane. A 10 Gigabit Ethernet switch and a PCI Express Switch can be complemented with two respective single star data planes. Thanks to Kontron VxFabricTM, a unique API extends the TCP/IP protocol over the PCI Express infrastructure. Kontron’s sample turnkey system StarVX implements this architecture, enabling a significantly higher I/O bandwidth. While computing power has been continuously increasing in the past, and I/O bandwidth did not, the balance of both is back again by Kontron StarVX. VX3058 makes it a powerful, leading edge Multi-CPU computing node architecture.
Long term programs: high reliability and low Total-Cost-of-Ownership
Kontron provides a Long Term Supply program service (LTS) for over 15 years. Intel communicates silicon reliability is 10 years. A comprehensive Health Management is optionally available to support easy field maintenance. All this makes the VX3058 the ideal candidate for long term programs.
Eigenschaften
| Processor | Intel® Xeon® D-1500 Octa Core™, TDP 35W, 1.6/1.7 GHz (8 execution cores, 16 threads) |
| Cache | 12Mbyte |
| DRAM DDR4 | Up to 32 GB dual channel DDR4 SDRAM running at 2133 MT/s, with ECC, soldered |
| Available I/Os | Front Panel USB: 1x USB 2.0 port GIGABIT ETHERNET: 1x RJ-45 connector: 10/100/1000BASE-T Ethernet Note: This port is configurable from the BIOS to be routed to the VPX rear connector HDMI (OPTION): HDMI connector as option. This includes a HDMI front-I/O module and a M.2 mezzanine for 2D graphics. Remark: HDMI front I/O and XMC support are exclusive. SERIAL: 1x RJ-11 connector: Two EIA-232 interfaces or one EIA-485 interface without hardware flow control LEDS: 5 LEDs reporting the board CPU health status and activity RESET: Push button Backplane PCIe: x8 PCIe 3.0, non-transparent capability, on P1. Configurable as 1 x8, 2 x4, or 4 x2 SATA: 2 SATA 6 Gb/s links on P1, 2 additional SATA 6 Gb/s links on P2 USB: 2 USB 2.0 and 1 USB 3.0 port on P1, 1 additional USB 2.0 link on P2 UART: Two serial lines (Rx, Tx only) on P2, for RS-232 or RS-422/485 dynamically configured Ethernet: Two 10GBASE-KR or 1000BASE-KX on P1, one 1 1000BASE-T on P1, 2nd 1000BASE-T on P2 (both front/rear switchable, onboard magnetics) GPIO P1: GPIO1, GPIO2/Maskable reset, OpenVPX GDISCRETE1, VBAT GPIO P2: SYSCON. 2x multiplexed GPIO3/4 or SFI I2C Video: DVI port on P2 as option. This includes a M.2 mezzanine for 2D graphics. |
| Expansion Slots | XMC |
| Backplanes | SLT3-PAY-2F2U-14.2.3, SLT3-PAY-1F1F2U-14.2.4 & SLT3-PAY-1F1U-14.2.10 Slots Profiles |
| I/O Features | x8 PCIe Gen3 Dual SATAIII Dual USB2.0 USB3.0 Dual serial lines Dual 10GBASE-KR and one 1000BASE-T DVI Graphic port Utility Plane: GPIO1, Maskable reset, GDISCRETE1, VBAT, SYSCON |
| Cooling | VITA 47 Standard air-cooled (0/+55°C) VITA 47 Conduction-Cooled CC-4 (-40/+85°C) |
| Storage | 60GB SATA SSD boot storage (M.2 slot) |
| Frontpanel | 1x 10/100/1000Base-T(X) on RJ-45 connectors. 1x RS-232 UART interfaces on RJ-12 connector 1x USB 2.0 port One Reset button HDMI port |
Downloads
Datasheets
VX3058 Datasheet
Octo Core VPX Server Blade
[ vx3058-datasheet-09-2015-1.pdf, 1.8 MB, Aug.31.2017 ]
VME-VPX shortform catalog
[ shortform-vme-vpx.pdf, 889.98 KB, Mar.20.2025 ]
Kontron Modular Computers S.A.S. Service and Support Offering
This data sheet contains a detailed description of all the support and service offering from Kontron Modular Computers S.A.S, including the Long Term Supply (LTS) Services.
[ long-term-supply-offering.pdf, 2.35 MB, Feb.25.2025 ]
Manuals
VX3058 User's Guide
[eingeschränkter Download]
[ cadtb25-0e-vx305x-ug-preliminary.pdf, 4.17 MB, Sep.11.2017 ]
VX305x AMI BIOS User Reference Manual
[eingeschränkter Download]
[ sddtg50-5e-vx305x-bios.pdf, 3.68 MB, Feb.12.2018 ]
VX305x PBIT User's Manual
[eingeschränkter Download]
[ sddtg51-0e-vx305x-pbit-ug.pdf, 1.06 MB, Sep.11.2017 ]
General Safety Instruction
[ vpx-360-manual.pdf, 5.67 MB, Dec.02.2025 ]
White Papers
VXFabric White Paper
[ whitepaper_en_vxfabric-v2-final.pdf, 5.87 MB, Nov.27.2013 ]
Services
Kontron Modular Computers S.A.S. Service and Support Offering
This data sheet contains a detailed description of all the support and service offering from Kontron Modular Computers S.A.S, including the Long Term Supply (LTS) Services.
[ long-term-supply-offering.pdf, 2.35 MB, Feb.25.2025 ]
