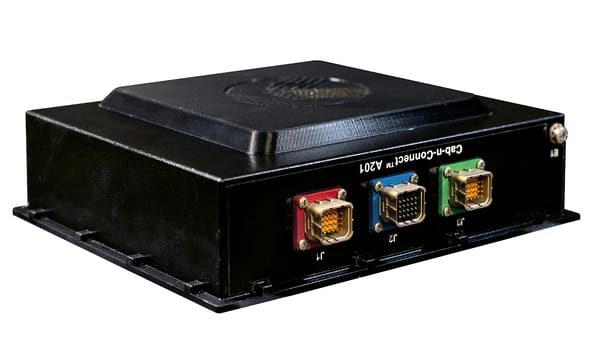

Cab-n-Connect™ A201

Cabin Wireless Access Point - 802.11ax / WiFi 6
Mouseover Zoom loading...
  • Advanced Tri-Radio Technology including internal integrated antennas, Adaptive Intelligent RF Monitoring & Management features
  • Backwards compatible to 802.11 a/b/g/n/ac
  • Dedicated Smart Sensor Radio for continuous security and performance
  • Highest Level of Security with WPA3 security certifications
  • Qualified to DO-160G
  • ARINC 628 Compliant
Datenblatt herunterladen

Cab-n-Connect™ A201


The latest generation Cab-n-Connect A201 provides the highest level of efficiency and performance based on 802.11ax WiFi 6 technology, optimized for video streaming in dense multi-client applications within the aircraft cabin. With aggregated data rates up to 4.8 Gbps in the 5 GHz band and concurrent 2.4 Gbps in the 2.4 GHz band, this next gen A201 CWAP is optimally suited for high density environments, providing intelligent edge capabilities with the highest level of client services without compromising security monitoring. The A201 is the only avionics certified CWAP that provides a dedicated, dual-band sensor that continuously scans and can detect security threats real-time eliminating the risk of vulnerability or attacks, while also optimizing RF performance automatically. The A201 delivers the highest level of security services, beginning with support for the Wi-Fi Alliance WPA3 security certifications and also provides a stateful L2-L7 DPI firewall for context based access security.


The onboard WiNG 7 Enterprise software provides the most comprehensive and robust services in the industry. Its SMART-RF module intelligently adapts to the aircraft environment to provide the best client performance by automatically adjusting power and channel as needed. Smart load balancing distributes clients evenly across the access points and bands on the aircraft which improve the overall network performance. Its Intelligent beamforming creates the most efficient path for data transmission between an access point and a client device creating an optimized communication path for stronger and faster data transmission. This improves throughput performance and results in battery power savings on the client device.


With more users, more devices, more things, more applications and more threats straining the aircraft infrastructure, the A201 was engineered to meet those ongoing challenges in the aircraft cabin. The A201 combines powerful 802.11ax Wi-Fi 6 technology, advanced security and ML/AI management capabilities together into an enterprise class solution that allows you to deploy high speed, highly secure Wi-Fi into the toughest aircraft environments.
