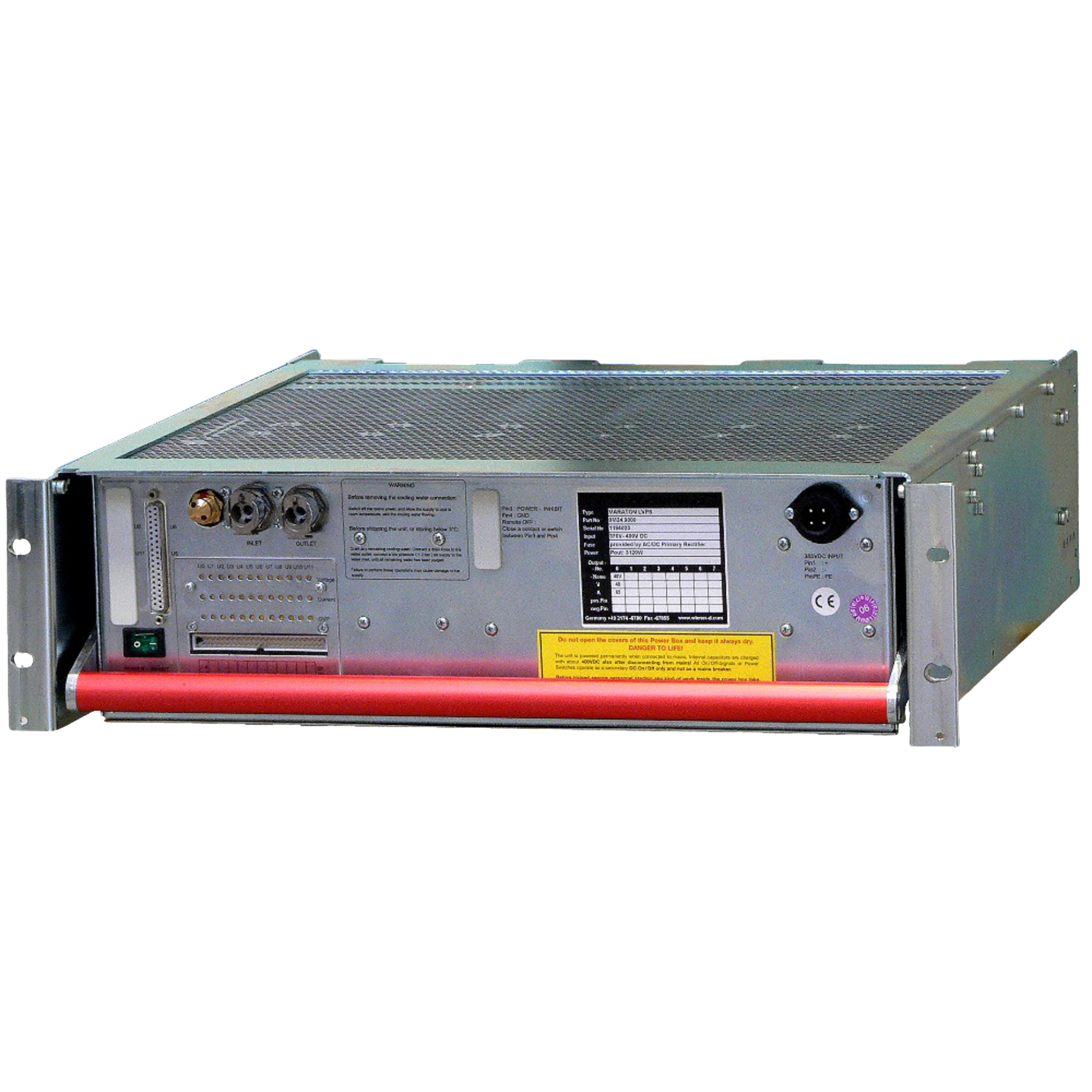

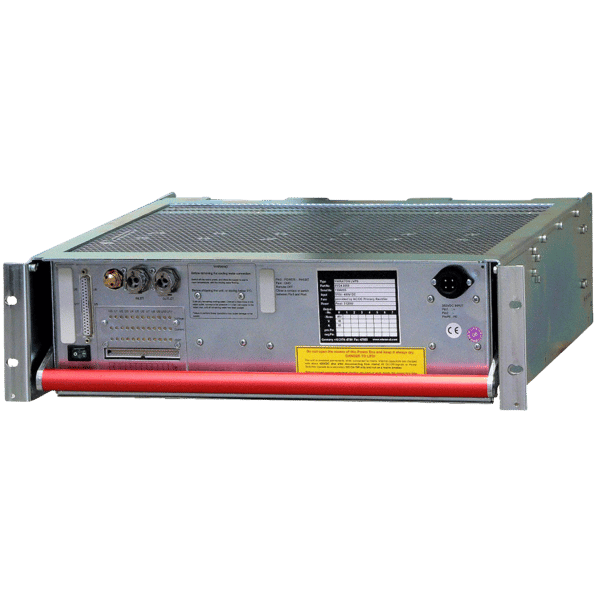

MARATON Hazardous HE
The MARATON hazardous HE is a high-density, radiation- and magnetic field-tolerant low-voltage power supply developed for demanding environments like CERN's LHC.
Spezifikationen
- 12-channel LV DC outputs
- 3.6 kW output power (water cooled)
- Water/air cooling
- Remote RCM controller via VME
- Magnetic field tolerance up to 1200G
- Remote input module for hazardous areas
With up to 12 potential-free outputs, modular construction, and robust remote monitoring via VME-based RCM, it ensures long-term reliable operation in radiation- and magnetically-hostile environments.
Originally developed for CERN’s LHC detectors, the MARATON hazardous HE system powers ultra-low noise electronics in radiation- and magnetism-intense environments. Its unique separation of radiation-sensitive components, advanced cooling options, and programmable multi-channel control via remote RCM interface make it a reliable solution for critical research infrastructure.
Eigenschaften
| Compliance | CE EN 60950, EN 50081-1, EN 50082-1/2, UL 1950 |
| Power & Efficiency | Up to 3.6 kW output (water cooled) 65–90% module efficiency depending on voltage |
| Protection | Over-/undervoltage, overtemp, current limiting Trip-off: global, group, or channel-wise |
| Control & Monitoring | 12-channel VME remote controller (RCM) Ethernet (TCP/IP), USB, SNMP, LEDs Programmable trip levels, status detection |
| Design & Components | Modular plug-in design, easy maintenance Shielded and remote-placed sensitive electronics Water-cooled power bin recommended |
| Mechanical | Dimensions: 434 × 132 × 325 mm Weight: 31.5 kg Air or water cooling, rear terminal access |
Downloads
Datasheets
Maraton Hazardous HE Datasheet
[ maraton-hazardous-he-datasheet.pdf, 344.16 KB, Aug.07.2025 ]
Manuals
Maraton Hazardous Manual
[ maraton-hazardous-manual.pdf, 9.4 MB, Aug.07.2025 ]
General Safety Instruction
[ vpx-360-manual.pdf, 5.67 MB, Dec.02.2025 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
Varianten
|
MDC-02/07 AL Type (up to 300G) |
|
2x 2–7V, 2x 55A or 1x 110A, 660W total | |
|
MDC-07/16 AL Type (up to 300G) |
|
2x 5–16V, 2x 22A or 1x 44A, 660W total | |
|
MDC-07/24 AL Type (up to 300G) |
|
2x 7–24V, 2x 11.5A or 1x 23A, 550W total | |
|
MDC-30/60 AL Type (up to 300G) |
|
2x 30–60V, 2x 6.6A or 1x 13.2A, 660W total | |
|
MDM-02/07 FE Type (up to 1200G) |
|
2x 2–7V, 2x 55A or 1x 110A, 660W total | |
|
MDM-07/16 FE Type (up to 1200G) |
|
2x 5–16V, 2x 22A or 1x 44A, 660W total | |
|
MDM-07/24 FE Type (up to 1200G) |
|
2x 7–24V, 2x 11.5A or 1x 23A, 550W total | |
|
MDM-30/60 FE Type (up to 1200G) |
|
2x 30–60V, 2x 6.6A or 1x 13.2A, 660W total |
