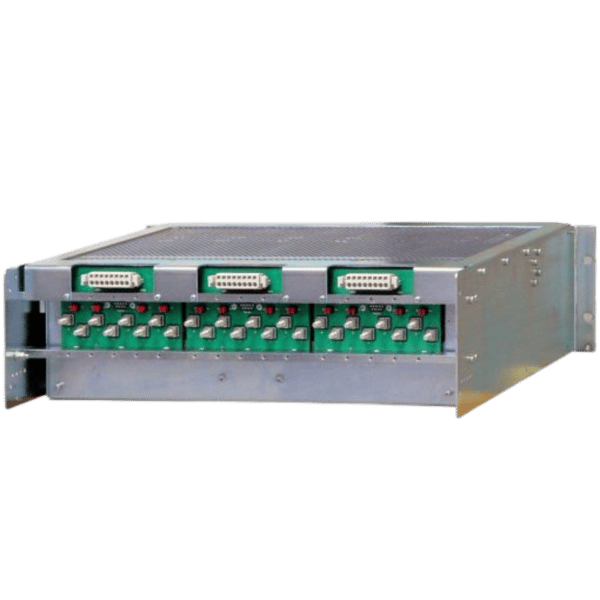

PL512 3U 12 Outputs 3000W
The PL512 is a high-density, programmable 12-channel floating low-voltage power supply system delivering up to 3 kW of total output power.
Spezifikationen
- Up to 12 independent, floating DC outputs at 250 W each
- Total output power up to 3 kW (in a 3U chassis)
- Remote control and monitoring via USB, Ethernet, Web interface, SNMP
- Dynamic load compensation (short/medium/long) programmable via USB
- Voltage, current, temperature and trip parameters fully programmable
- Optional features: display, interlock, power-fail reset, water cooling
It features ultra-low noise, dynamic regulation adjustment, and full remote control via USB or Ethernet, making it ideal for high-load, long-distance applications.
The PL512 system combines high channel density and advanced control capabilities in a modular 19″ rack-mounted package.
Its plug-in power box allows tool-less replacement and simple maintenance. Each of the 12 outputs is fully floating and programmable in terms of voltage, current, and operational behavior.
Channels can be paralleled in Master-Slave mode for current boosting, while safety and shutdown logic is managed by a robust internal processor.
Designed for quiet operation and maximum reliability, the PL512 features active PFC, closed-loop regulation, and dynamic behavior adaptation based on cable length.
Remote sense feedback, integrated temperature sensing, and optional digital interlock or system reset features ensure precise and secure control under all conditions.
Optional water cooling maintains the same form factor as the air-cooled variant for easy integration.
Eigenschaften
| Compliance | CE: EN 50081-1 (EN 55022-B), EN 50082-1/2, EN 60950 EMC: EN 61000-6-2/3, EN 55022 Class B Immunity: EN 61000-4 series (ESD, surge, burst, HF, etc.) |
| Power & Efficiency | Up to 3 kW total output power (250 W per channel) Universal AC input: 94–265 VAC, 50/60 Hz, with active PFC Efficiency: 75% (2 V), >83% (>5 V), >90% (>48 V) Ultra-low ripple & noise (<15 mVpp short wire, <3 mVpp at 10 m cables) Temperature coefficient <0.2%/10 K; long-term stability <0.3% in 6 months MTBF >100,000 h (electronics), >65,000 h (blower) at 40 °C |
| Protection | Overvoltage protection at 125% of nominal (factory setting) Programmable current/voltage limits Fast trip-off within 3 ms on deviation, overload, or thermal event Temperature shutdown: 90 °C (mains), 110 °C (modules), 70 °C (ambient) Optional interlock disables all outputs when triggered |
| Control & Monitoring | USB and Ethernet with Web/SNMP interface Programmable dynamic behavior (short/medium/long sense) Output regulation via closed-loop sense feedback Per-channel ramp control, voltage/current mode switching Optional display, power-fail and system reset integration |
| Design & Components | Modular design with 3U rack-mountable bin and tool-less power box Output terminals: M4 (80 A), 9-pin Sub-D for sense/temp Master-Slave parallel operation mode for current boosting Optional direct water cooling in same footprint |
| Mechanical | Dimensions: 430 mm (W) × 133 mm (H, 3U) × 325 mm (D) Weight: 9.6–19 kg depending on installed modules Operating temperature: 0 – 50 °C, storage: –30 – 85 °C Noise filtering up to 300 MHz Stability: <5 mV or 0.1% in 24 h, <25 mV or 0.3% in 6 months |
