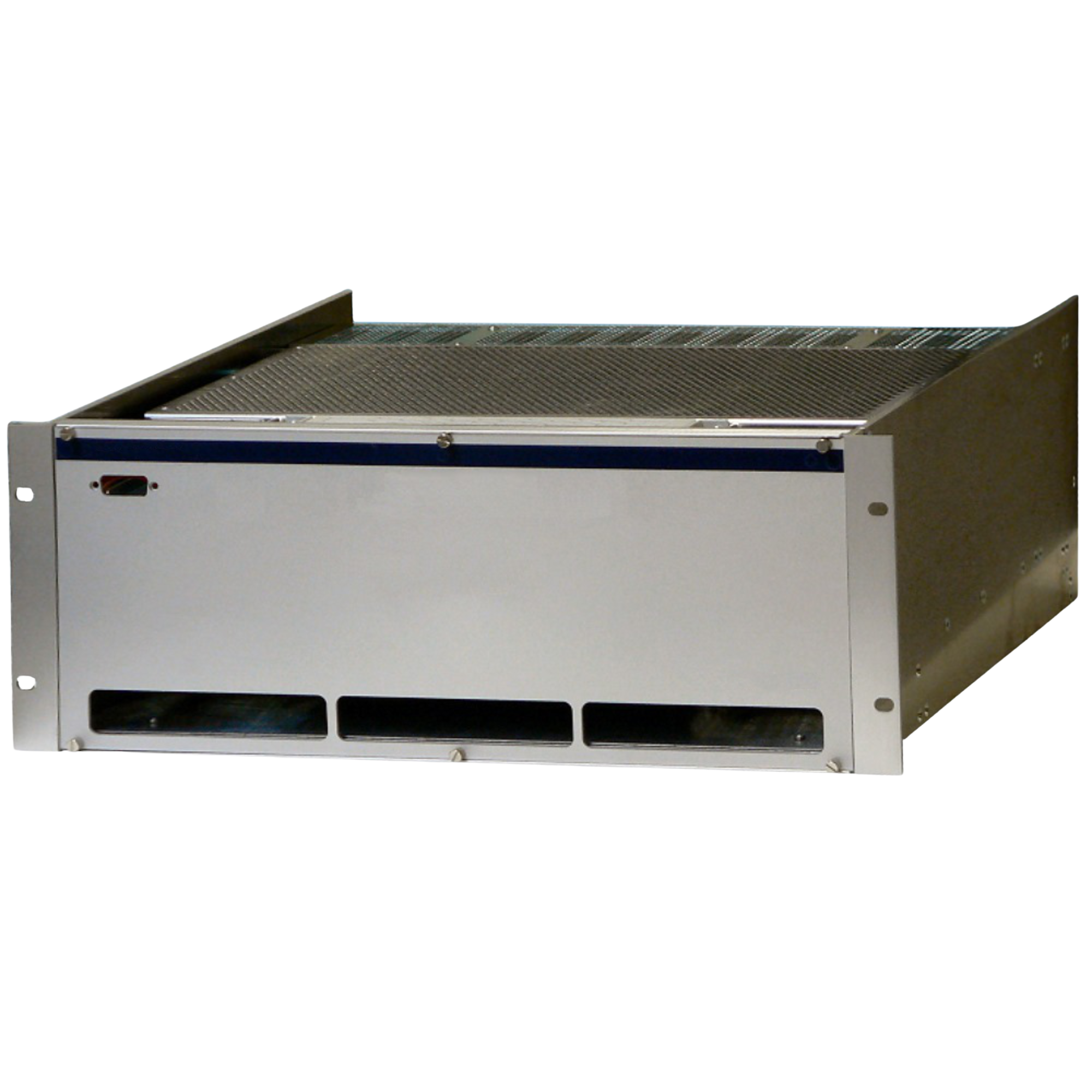

PL508 3-6U 10 Outputs 6000W
The PL508 is a high-density, programmable 8-channel low-voltage power supply system delivering up to 6 kW total output power.
Spezifikationen
- Up to 10 independent, floating DC outputs, up to 3/6 kW total output power
- Fully self-controlled with programmable voltage, current, and protection limits
- Low ripple and noise performance
- Auto-ranging AC input (94–265 VAC) with PFC
- CAN-bus interface for remote control and monitoring
- Optional water cooling and system reset/power-fail signals
It supports long-distance cable compensation, remote monitoring via CAN-bus, and features low ripple, modularity, and customizable regulation.
The PL508 system features a modular 19″ rack-mountable design with plug-in power supply units that can be hot-swapped without tools. It includes intelligent sensing for distance-based regulation (short/medium/long) and allows tight control of voltages, currents, and temperatures. Recovery times and noise levels are optimized for precision loads. All channels are potential-free and regulated via a closed-loop control system with programmable ramp rates and fault protection.
The unit is compatible with demanding environments through integrated thermal protections, high MTBF electronics and configurable overload behavior. System configurations can include water cooling, interlock logic, and other custom options.
Eigenschaften
| Compliance | CE: EN 50081-1, EN 50082-1/2, EN 60950 EMC: EN 61000-6-2/3, EN 55022 Class B Immunity: EN 61000-4 series (ESD, surge, burst, HF, etc.) |
| Power & Efficiency | Up to 6 kW total, 550–650 W per module Universal AC input (94–265 VAC) with active PFC Efficiency: 75% (2 V), >90% (>48 V) Ripple & Noise: <15 mVpp at 0.5 m wires, <3 mV at 10 m wires Temp. coefficient: <0.2% / 10 K Long-term stability: <0.3% over 6 months MTBF: >100,000 h (electronics), >65,000 h (blower) |
| Protection | Overvoltage trip at 125%, current limits programmable Shutdown on overload, overheat, or voltage deviation within 3 ms Temperature cutoffs: 90 °C (input), 110 °C (modules), 70 °C (ambient) Optional interlock input disables all outputs |
| Control & Monitoring | CAN-bus interface, status-controlled outputs, programmable ramping Sense feedback and regulation adaptation for long cables Optional power-fail signal, display integration |
| Design & Components | Toolless hot-swap power boxes in 19″ bin Optional direct water cooling Closed-loop feedback with 10 V sense range Regulation adaptable to cable length |
| Mechanical | Operation: 0–50 °C, Storage: –30–85 °C Noise Filtering: up to 300 MHz Stability: <5 mV within 24 h Current slope support: up to 1000 A/ms |
