MPOD Controller LV, HV or both
Half‑slot controller for MPOD crates—manages internal power and modules via CAN‑bus; Ethernet, dual CAN, USB2 interfaces; built‑in web server and SNMP support; interlock and LEDs for safe monitoring.
Spezifikationen
- Controls all MPOD modules via internal CAN-bus
- TCP/IP 10/100 Mbit/s Ethernet port (auto-ranging)
- Built-in HTTP web server for browser-based monitoring
- Supports DHCP or static IP
- SNMP v2c for full remote control of module parameters
- 2 parallel CAN-bus ports for daisy-chaining
- USB2 interface for setup and firmware updates
- 3 status LEDs for diagnostics
- Interlock connector: 9-pin DSUB
- Form factor: Half-slot module

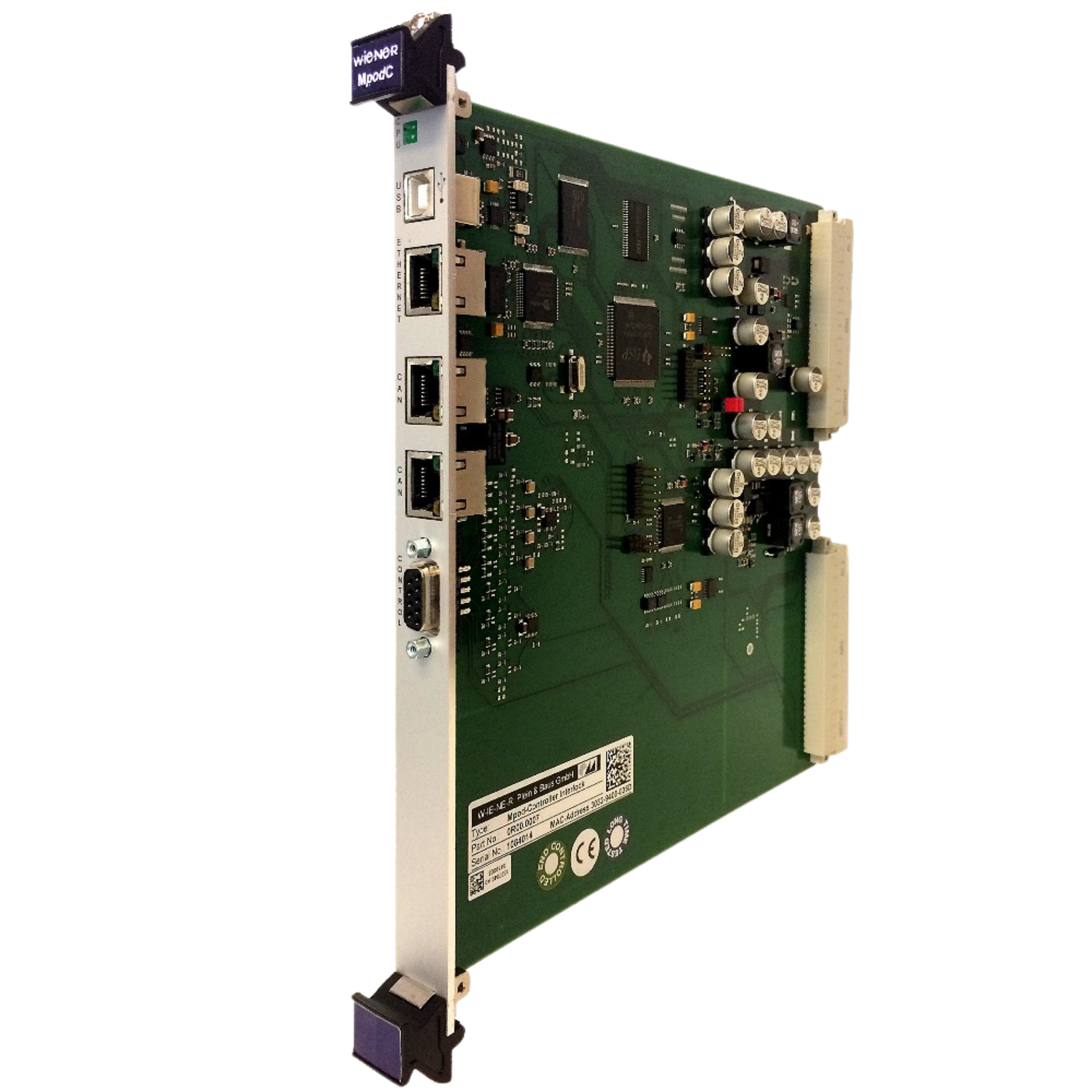

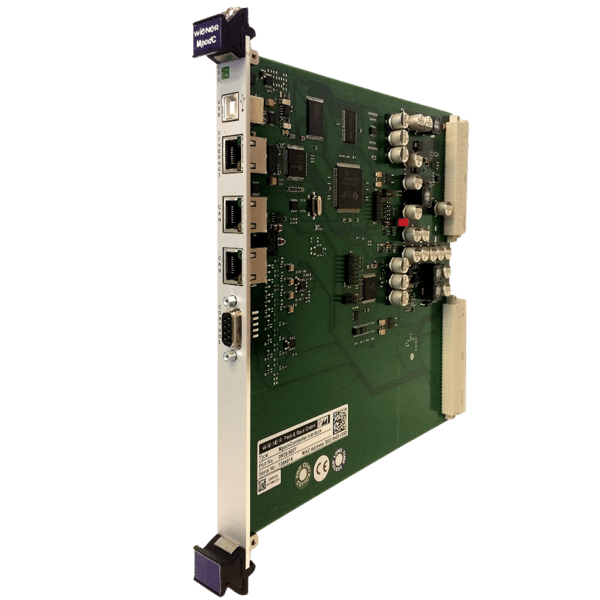

Half-slot communication controller for MPOD/MMS systems. The MPOD-C manages internal power supply and all HV/LV modules via internal CAN-bus. Enables user communication through Ethernet, USB2, and dual CAN-bus ports, with remote access via SNMP and web interface.
Eigenschaften
| Compliance | Module and crate comply with CE/EN 60950 and other common safety standards Safety-Loop (Interlock) is hardware-based and mandatory for operation |
| Power & Efficiency | Up to 48 HV channels per module, max. 20 kV / 15 mA per channel; typically 1–40 W per channel Patented sinusoidal resonance inverter technology for high efficiency and very low interference Module powered via crate power supply (300–1200 W HV, 600 W LV backplane, PFC, EMI filter) |
| Protection Features | Per-channel hardware voltage and current limits with fast cut-off Safety Loop (Interlock) shuts down HV upon opening Module monitoring via SNMP/crate: various supervisory functions – OVP (overvoltage protection), OCP (overcurrent protection), OTP (overtemperature protection), fault group control Management & Control Full channel control (constant voltage/current, ramps, trips) via SNMP (Ethernet), CAN bus, USB, and web interface MPOD controller and ISEG CC24 support web UI, SNMP server, EPICS, Python scripting Optional local control via graphical LCD and encoder on crate (e.g., MPOD LX) |
| Design & Components | Modules with 4–48 HV channels, resolutions: 16–21 bit for voltage and current Very low ripple values: < 10 mVpp (standard), < 5 mVpp (high precision) Connection via SHV, ReDel, or Kings HV connectors — depending on number of channels and voltage |
| Mechanical | Format: 6U × 8 HP, 220 × 100 mm, approx. 2 kg per module Crate: 8U (standard) or 9U (with front dust filter), 19″ rack, 10 slots for HV/LV modules, modular fan and power supply trays Variable output position: front or rear, depending on crate version |
Downloads
Datasheets
MPOD Controller Datasheet
[ mpod-controller-datasheet.pdf, 797.48 KB, Aug.04.2025 ]
Manuals
General Safety Instruction
[ vpx-360-manual.pdf, 5.67 MB, Dec.02.2025 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
