Kontron Chassis Control KCC
The Kontron Chassis Control (KCC) offers a robust and flexible ecosystem for advanced chassis management, particularly in ruggedized or high-availability environments.
- Modern Interoperability and Security: While it supports legacy standards like IPMI, the KCC prioritizes Redfish, a modern RESTful API that utilizes HTTPS/TLS encryption and JSON for secure, scalable, and human-readable integration with data center infrastructure.
- Rapid Deployment and Intuitive UI: The KCC is designed to be usable within minutes with minimal programming knowledge, supported by a state-of-the-art web application for real-time data visualization and logging.
- VITA 46.11 Compliance: The KCC adheres to the ANSI/VITA 46.11-2022 standard for Tier-2 Chassis Managers, ensuring full compatibility with VPX systems for monitoring health and status.
Product Information

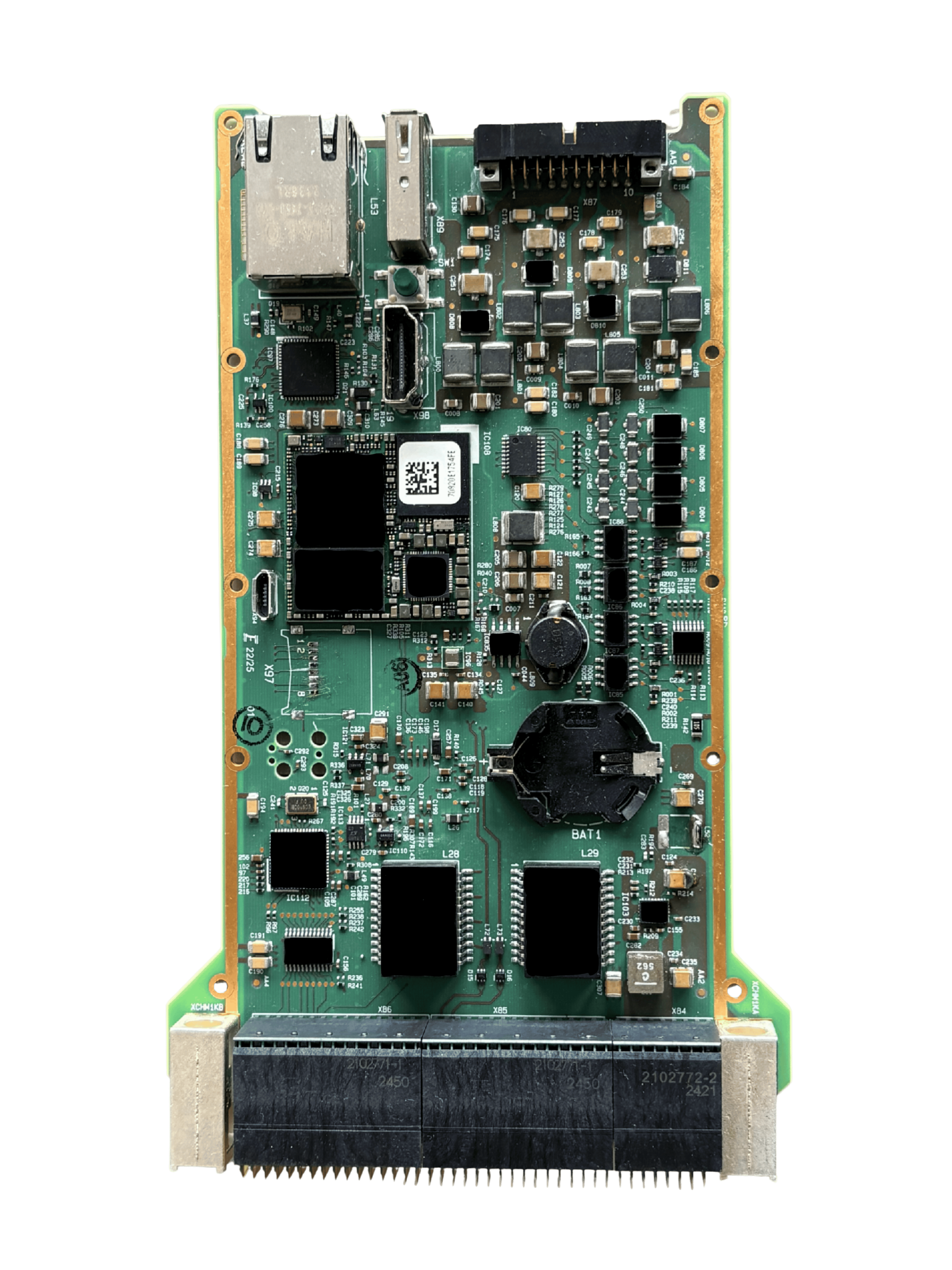

Kontron Chassis Control (KCC)
The Gold Standard in Secure, VITA-Compliant System Management.
The KCC is a centralized management powerhouse built for VPX and modular systems. Combining a dual-core ARM processor with redundant communication, it delivers elite health monitoring, power management, and cooling control in a secure, scalable package.
Why Choose KCC?
- VITA 46.11 Certified: Native Tier-2 Chassis Management ensures seamless compatibility and status monitoring for all VPX ecosystems.
- ▪Next-Gen Security (CRA Ready): Built "Secure-by-Design" to meet Cyber Resilience Act standards, featuring robust vulnerability management (SBOM) and automated security updates.
- ▪Modern API Integration: While supporting legacy IPMI, the KCC prioritizes Redfish (RESTful API) with HTTPS/TLS encryption for human-readable, data-center-ready integration.

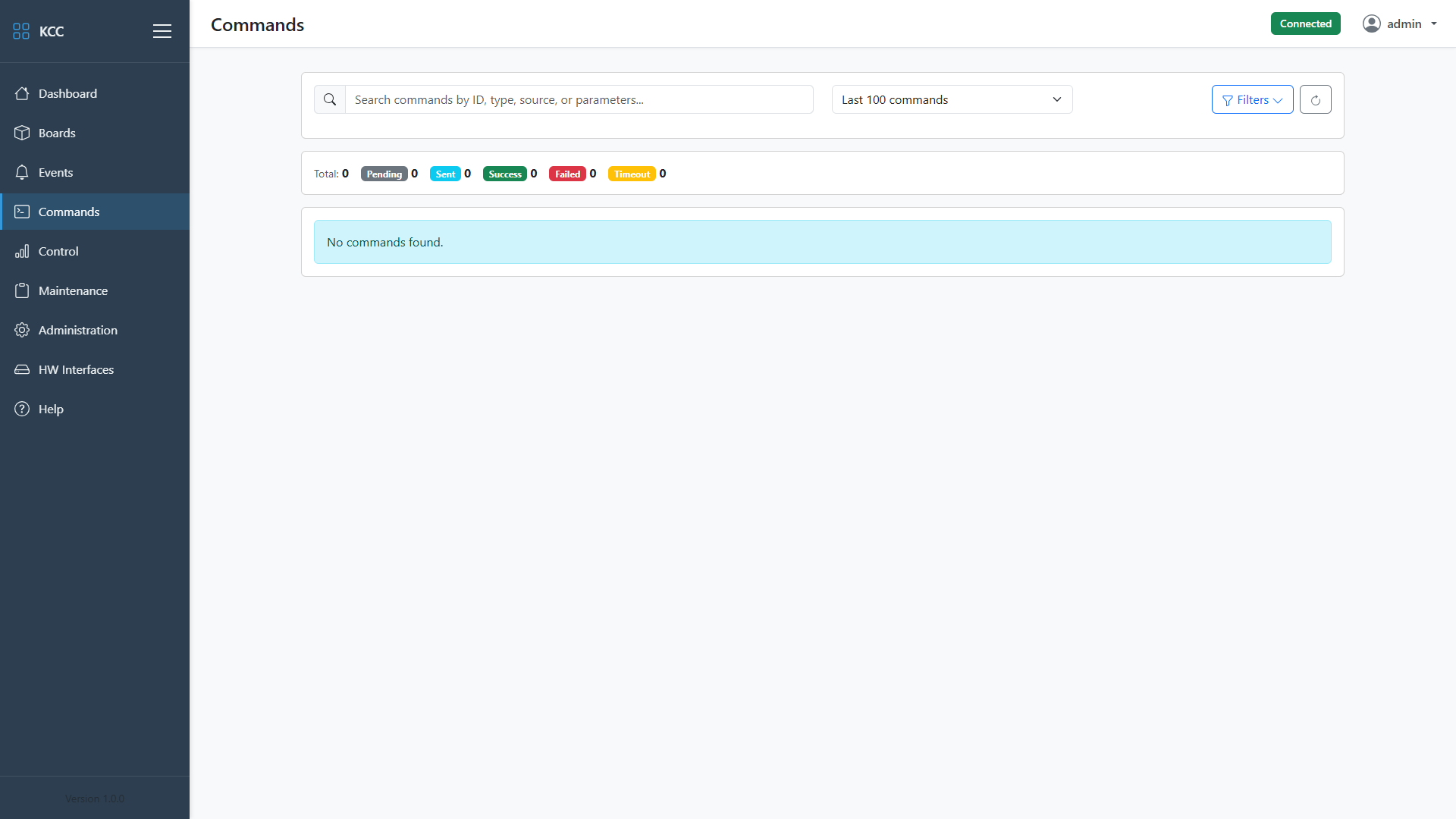

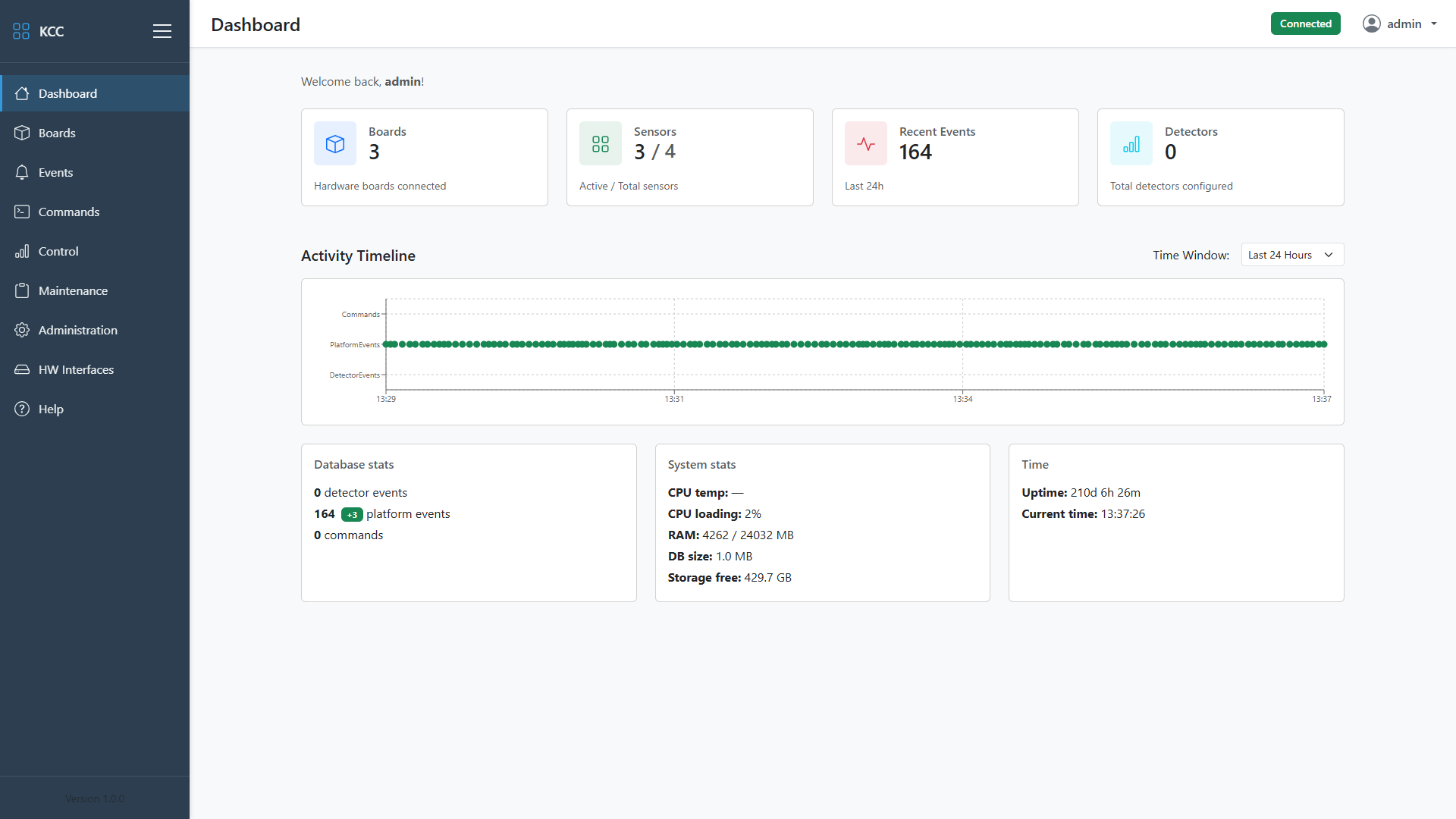

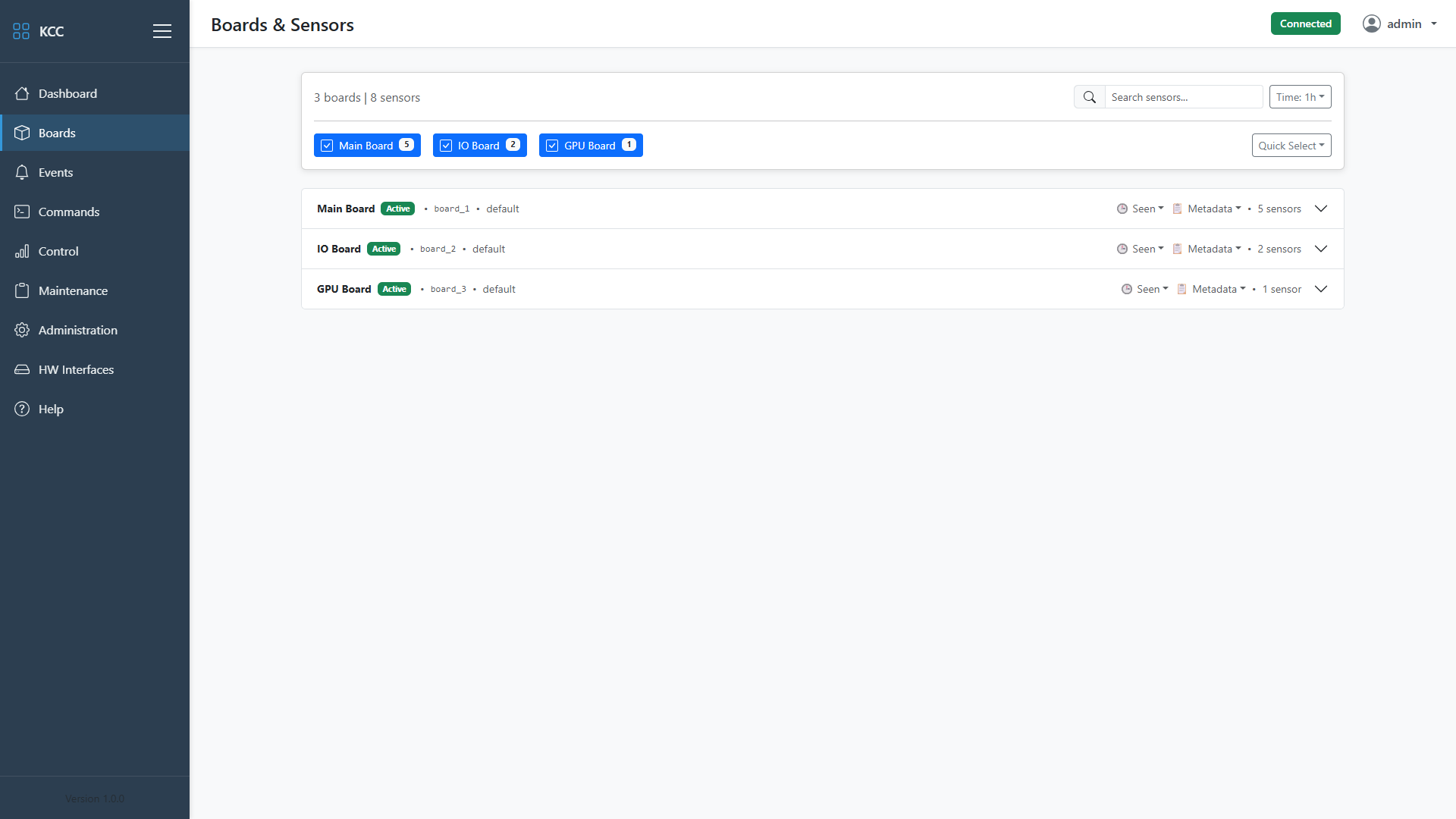

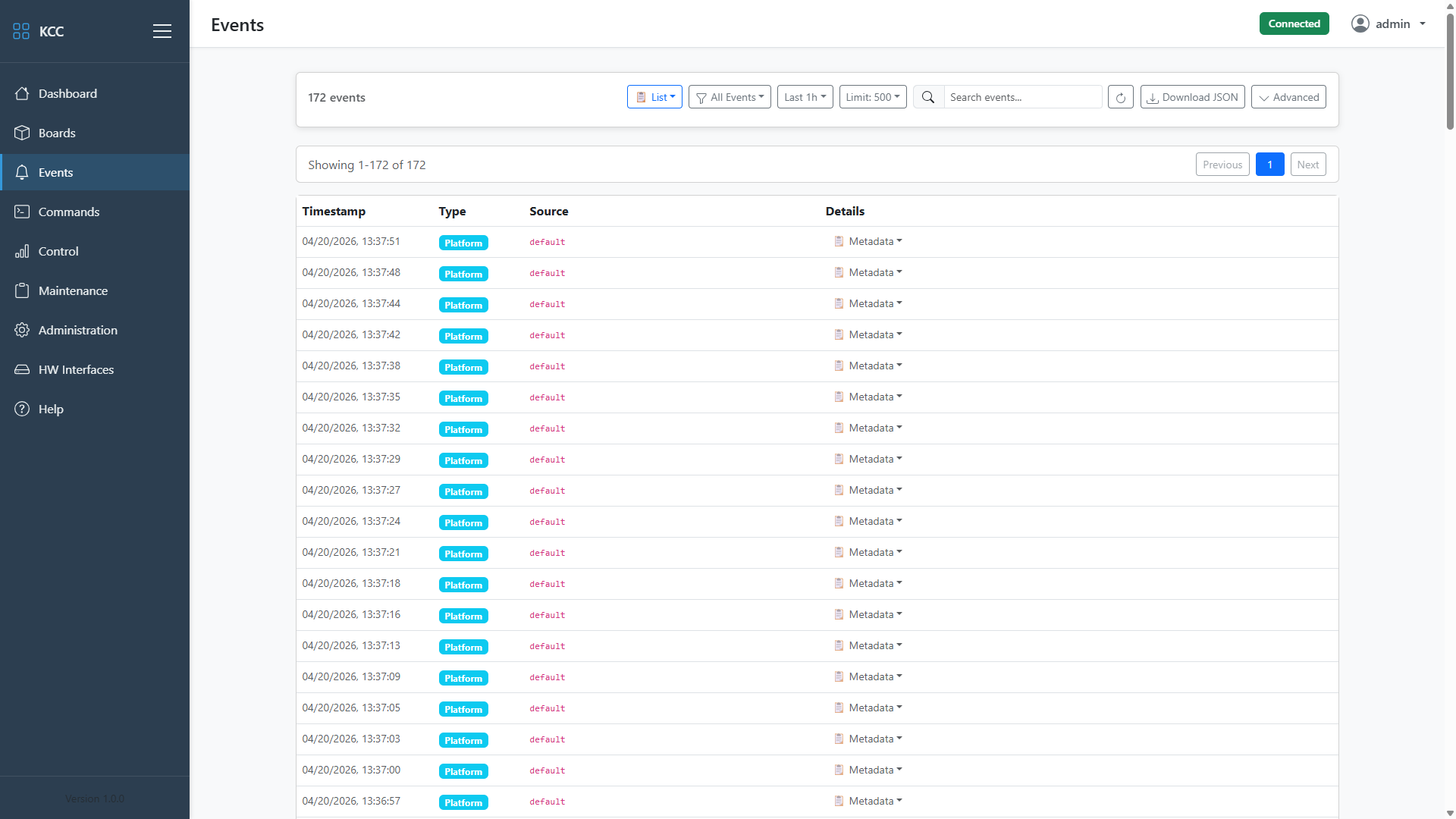

- ▪Zero-Lag Deployment: Go live in minutes. Our state-of-the-art web UI provides real-time visualization and event handling without requiring deep programming expertise.
- ▪Scriptable Automation: Use our integrated configuration language to define custom event triggers and complex logic for automated exception handling.
Technical Data
Interfaces :
- two IP capable interfaces.
- IP connection with 1 GBASE-T and 1 GBASE-KR possible.
- up to 32 GPIOs.
- IPMB-B interface intended for connection to the System IPMB.
- IPMB-A interface intended for connection to the System IPMA.
- analog temperature signal inputs.
- analog voltage measurement inputs.
Technische Daten
| Modern secure Redfish interface Standardized, API-driven management with encrypted remote access. | |
| Intuitive GUI: zero training period Streamlined user experience for immediate, error-free operation. | |
| VITA 46.11 Certified Rigorous, industry-standard compliance for mission-critical system health. | |
| Next-Gen Security (CRA Ready) Future-proof protection aligned with the latest Cyber Resilience Act mandates. |
