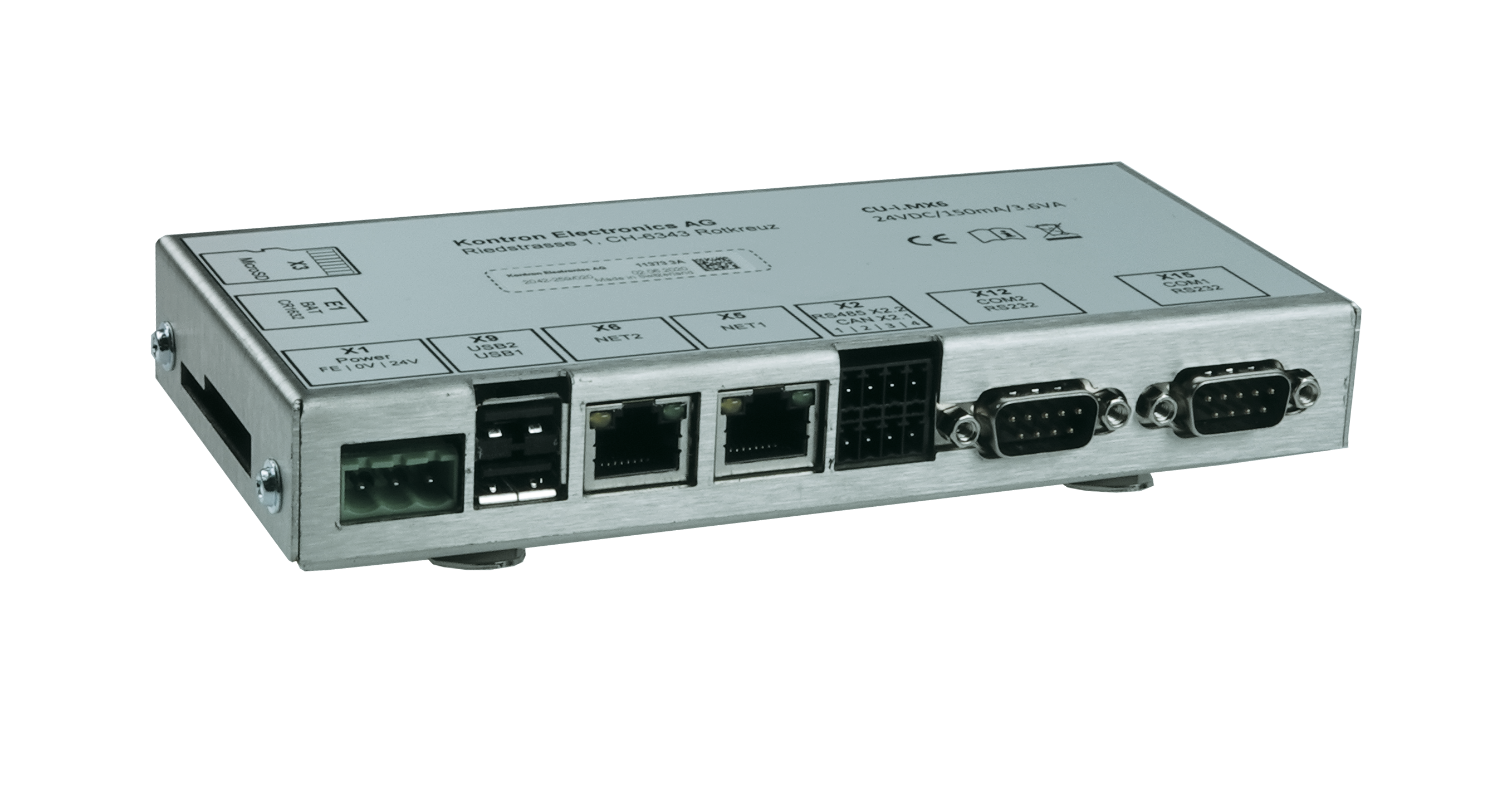

CPU | NXP Arm® i.MX6 2 Cores, 800 MHz |
DRAM DDR3L | 1 GByte, soldered |
NAND/NOR-FLASH | 512 MByte/1 MByte |
SRAM | 128 kByte |
SD CARD | microSD slot (up to 32 GByte) |
USB | 2x USB 2.0 (Host) |
Ethernet | 2x Ethernet (10/100) independent |
CAN | 1x CAN (isol.) |
Serial Ports | 2x RS232, 1x RS485 (isol.) |
RTC | Battery buffered RTC |
Construction | IP20, stainless steel |
Cooling | Fanless |
Dimensions (H x W x D) | 174 x 78 x 26 mm |
Weight | 0.40 kg |
Mounting | For mounting on 35mm mounting rail acc. To EN 60715 |
Power | 24 VDC ±20 % |
Power Consumption | Typ. 3.6 W |
EMC | EN 61000-6-2 (immunity), EN 61000-6-4 (emission) |
Operating Temperature | 0 °C ... +55 °C |
Storage Temperature | -20 °C ... +70 °C |
Humidity | 10 %-90 % @ 39 °C, non-condensing |
Altitude | Up to 6.500 ft (2000 m) |
Operating System | Embedded Linux (Yocto) |
Softplc (Option) | CODESYS V3, Target Visu, Web Visu |
Protocols (Option) | EtherCAT, Modbus TCP/RTU, Profinet, Ethernet IP, CANopen, OPC UA, IIoT Libraries (MQTT, HTTPS; Azure, AWS, Google..) |
Certifications | CE |
