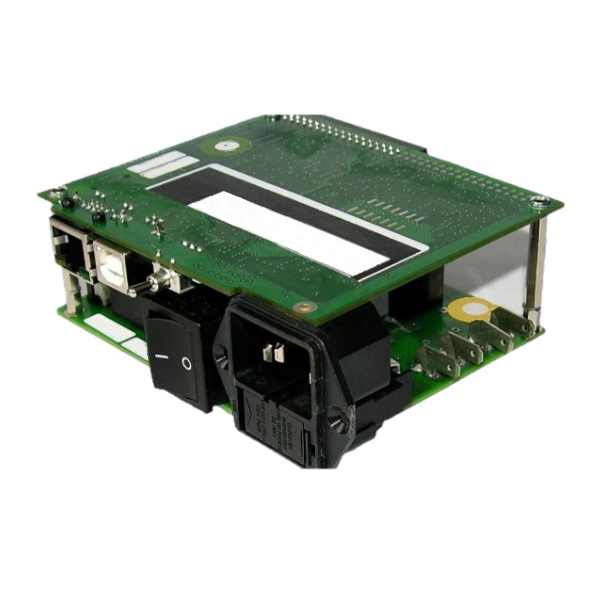

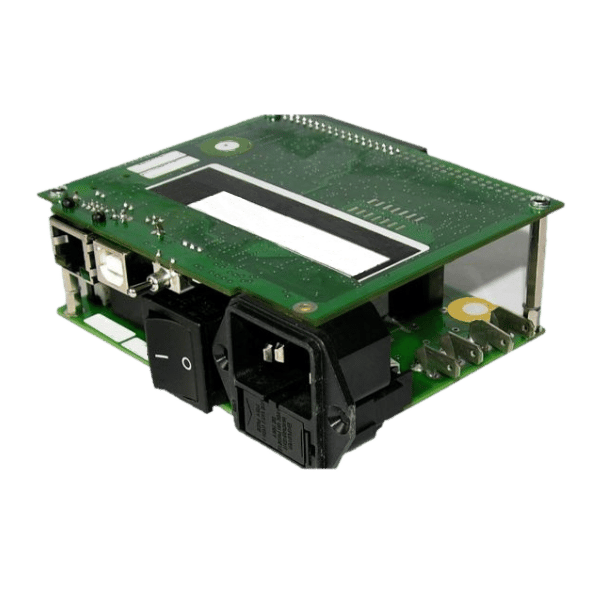

CML00
The CML00 is a modular controller for remote monitoring, measurement, and control (slow control) of electronic systems and power crates. It enables logging, supervision, and remote actuation of power, temperature, and system signals via Ethernet or USB
Spezifikationen
- DSP-based real-time processing of measurements
- Multicolored status LED for indication
- Local or remote ON/OFF main switch (if powered externally)
- Fan measurement and speed regulation for up to 6 fans in up to 3 groups
- Programmable trip thresholds (min/max) for voltage & temperature
- Generation / detection of RESET, ACFAIL, SYSFAIL, and derating/failure signals
- Ability to switch on/off cPCI power supplies
- Ethernet + USB interface with web server and SNMP control
- Configuration stored in EEPROM
- Firmware update via USB
- • Optionally supplied with auxiliary power supply for independent operation
The CML00 module is designed to provide remote control, monitoring, and logging capabilities to systems and power crates that may not already have embedded intelligence. It samples voltages, currents, temperatures, fan speeds, and status signals; compares these with programmable thresholds; and responds by issuing control actions or generating alarms. It supports networked access (Ethernet or USB) and integrates fan management, power control, and system supervision in a compact 3U, 8HP form. For crates using cPCI or VME-style power rails, CML00 can generate / detect reset or fail signals and switch power supplies on or off. The module also supports data logging and firmware updates.
Eigenschaften
| Features | Board size: 86 mm × 110 mm Mounting size: 3U, 8HP (with front-panel version) Analog Inputs: 18 channels (8 for voltage, 6 for temperature probes, 4 for general analog) Digital I/O: 8 × TTL inputs, 8 × TTL outputs Fan control & measurement: up to 6 fans, with speed regulation, up to 3 independent fan groups Voltage measurement: supports VME / cPCI voltages 3.3 V, 5 V, 12 V, –12 V rails Temperature measurement: via 1-wire bus for up to 6 digital sensors Supervision: programmable min/max thresholds for voltages and temperature, with automatic shutdown on threshold violation Control functions: Generation / detection of RESET, ACFAIL, SYSFAIL signals; controllable on/off of power supplies in crates (cPCI) Interfaces: Ethernet (10BASE-T / 100BASE-TX), USB (galvanically isolated) Embedded web server and SNMP support; security levels; network configuration via DHCP or static IP Firmware update: via USB Power supply: normally powered from 5 V bus; optional auxiliary power supply possible Configuration memory: EEPROM, retains settings across restarts |
