CP347

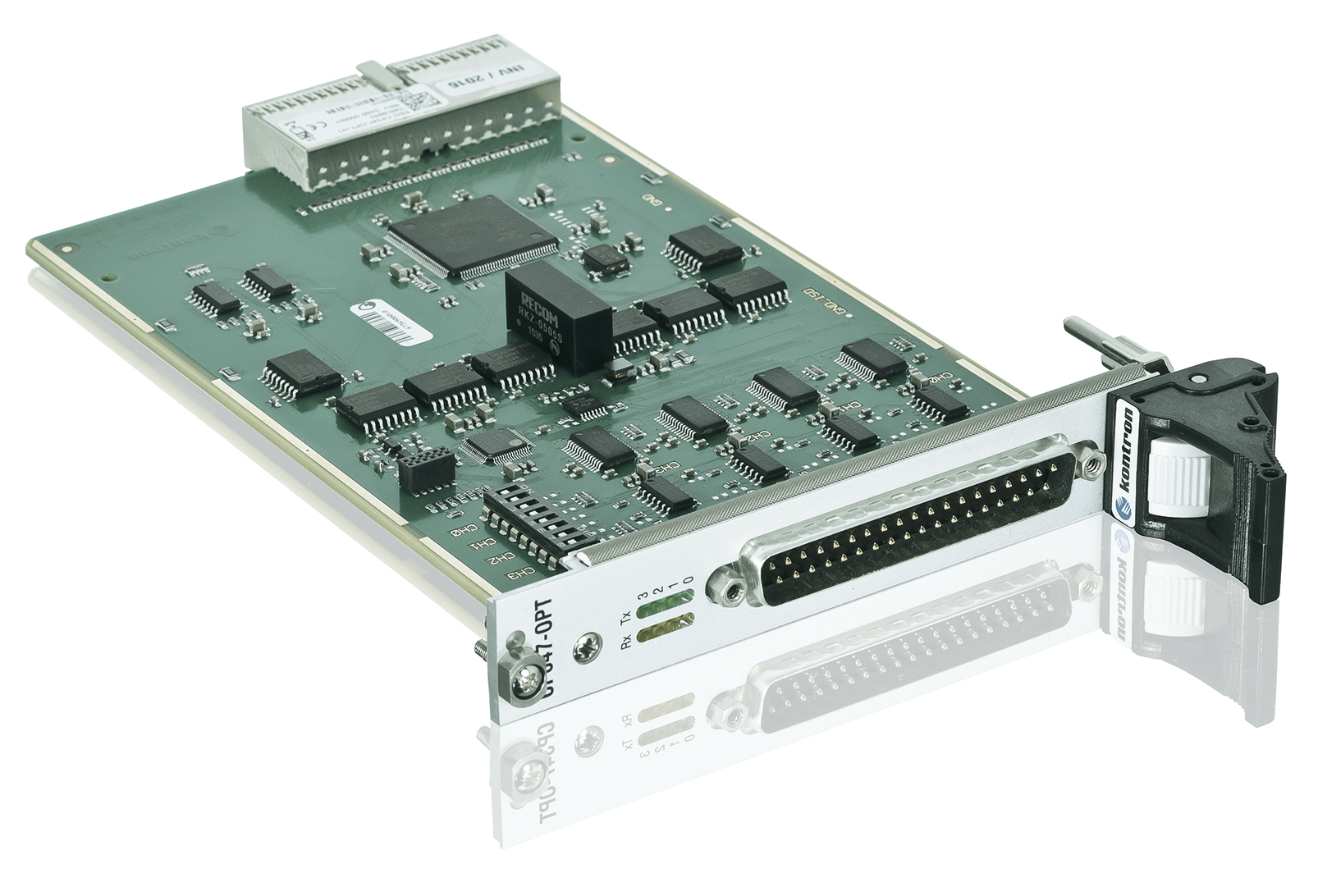

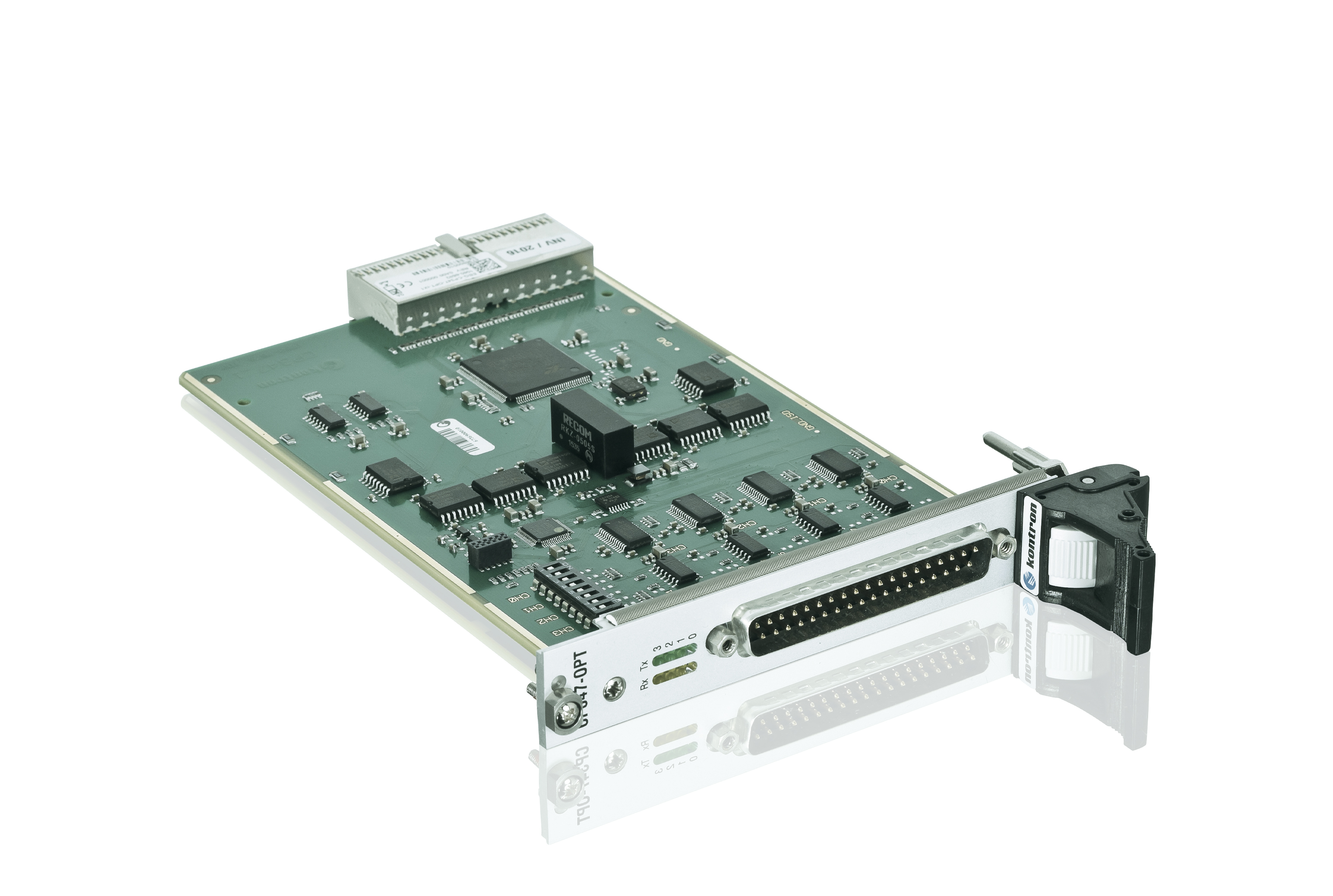

Quad serial 3U CompactPCI controller board
- Cost effective with Exar Quad UART controller
- RS232, RS422 or RS485, per channel configurable
- Isolated
- Broad OS support
4 channels, UART 16550 compatible
Serial channels in an application are required very often to transfer data, get a COM port, control all common industrial serial devices, such as test and measurement projects, function generators, etc., or even to connect a modem, mouse, etc. to the system. The CP347 provides the up-to-date Exar technology to achieve these classic tasks, but still remains very cost effective.
►High Performance Quad UART XR17D154
►4 independently implemented serial channels
►RS232, RS422 or RS485 modes (full duplex and half duplex) per channel configurable
►37PIN DSUB connector
►Galvanically isolated
►Windows® 8.1, Windows® ES 7, Windows® 7, Linux, VxWorks®, more to come
Technical data
| Controller | Quad UART XR17D154 |
|---|---|
| Characteristics | 16550 UART compatible |
| Channels | 4 independently controlled |
| Function | RS232, RS422, RS485 |
| Frontpanel | 37-pin DSUB connector |
