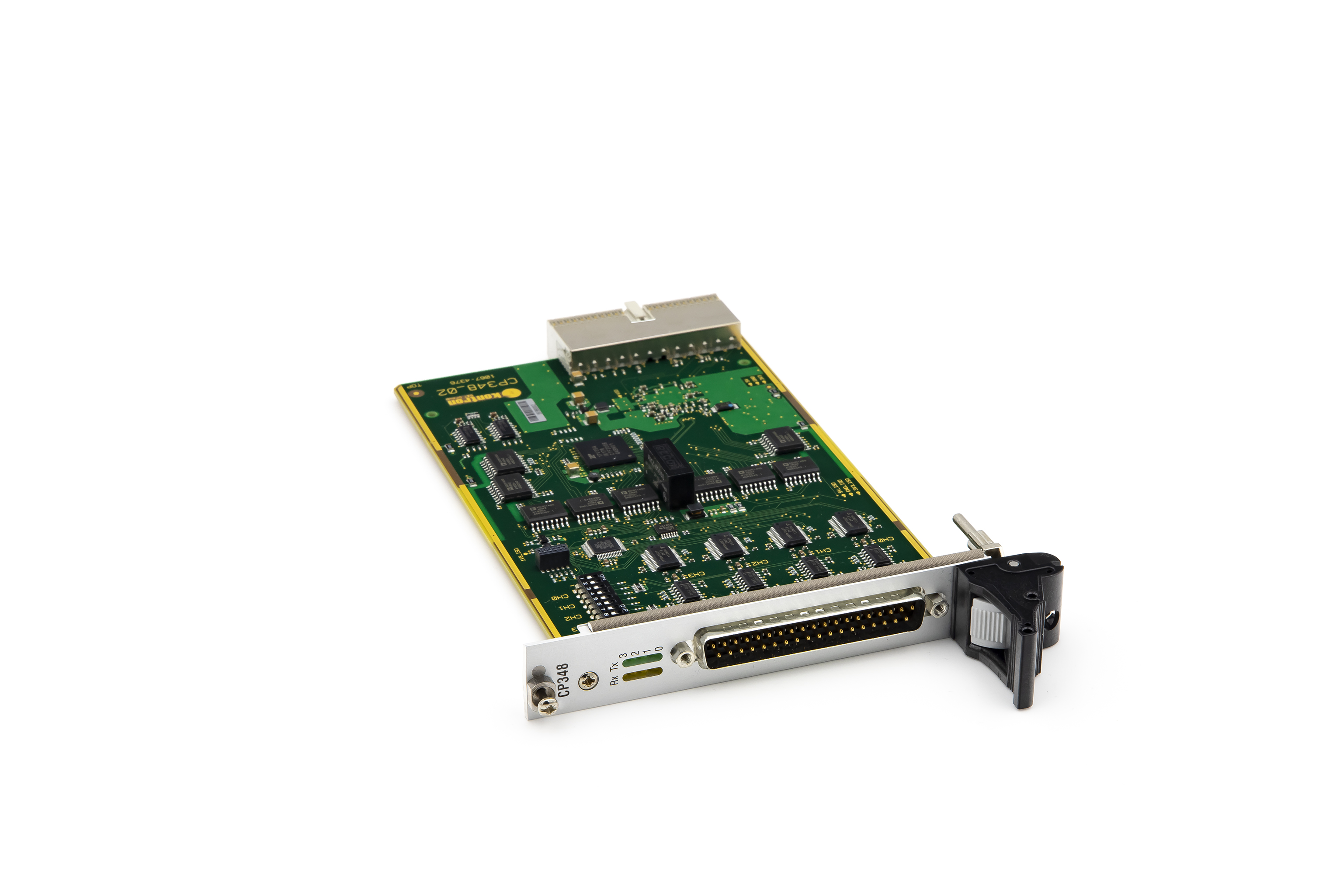

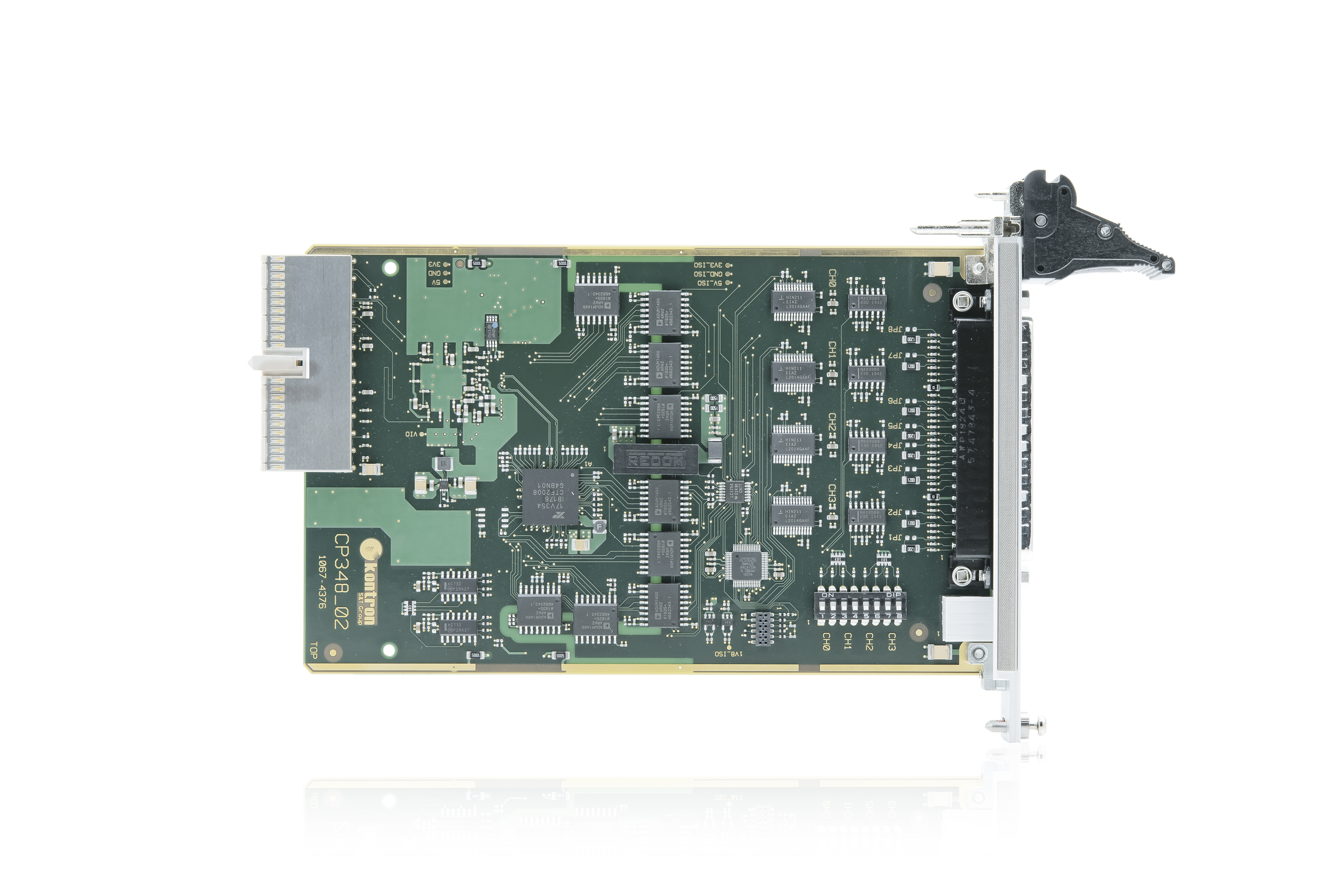

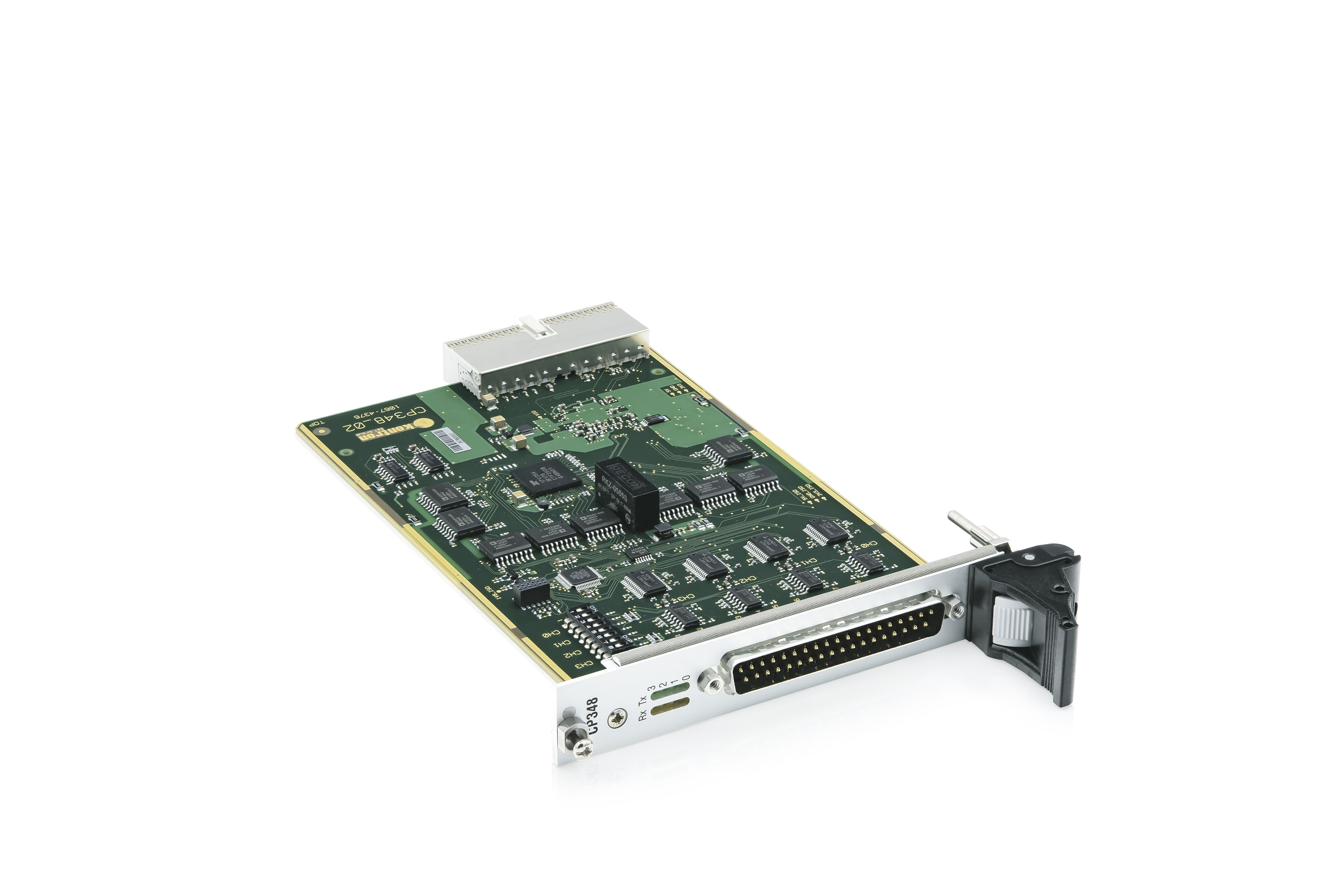

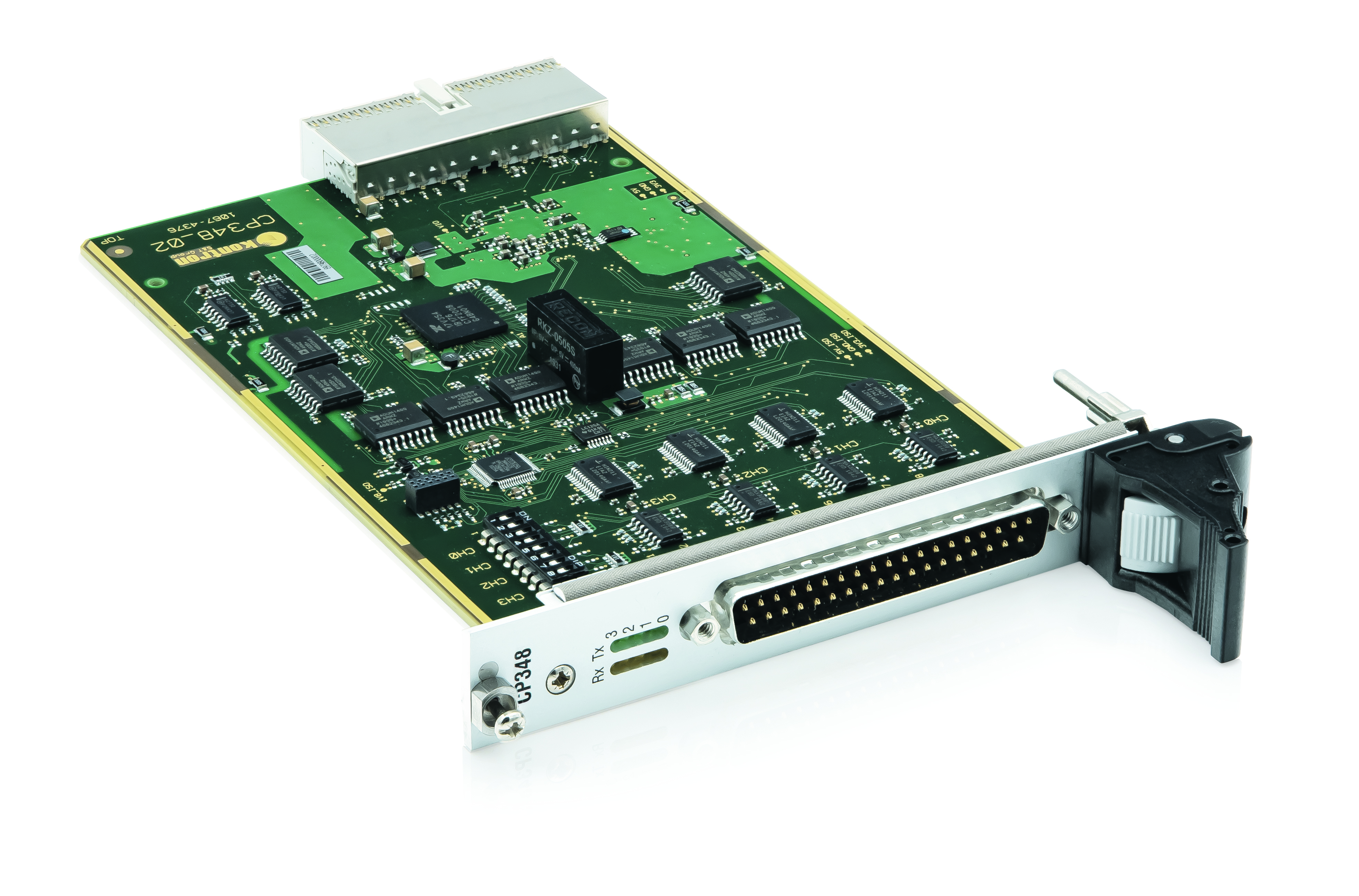

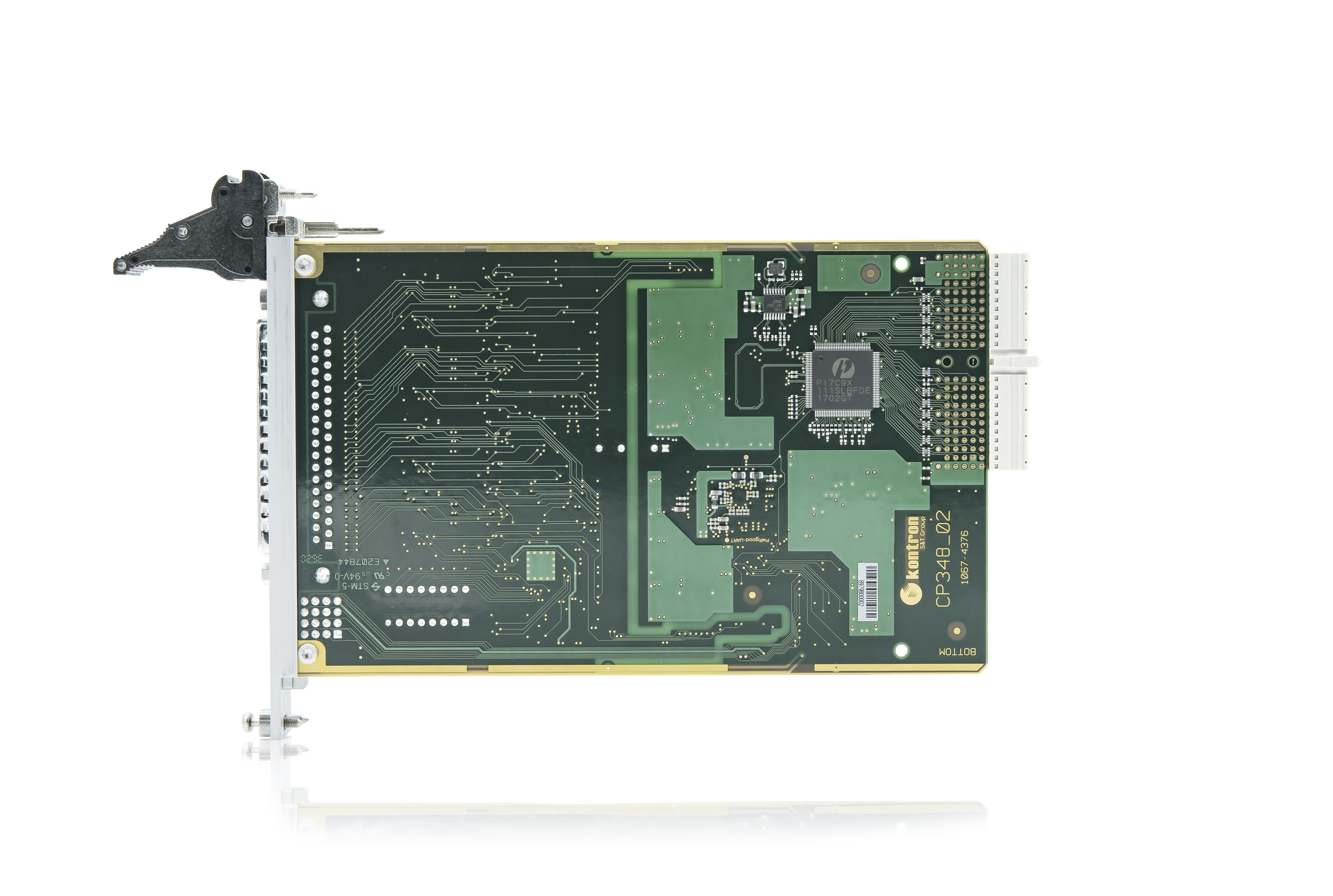

CP348
Quad serial 3U CompactPCI controller board
- Exar Quad UART with broad OS support
- RS232, RS422, RS485, per channel configurable
- Isolated
- Widely compatible to CP347
4 channels, UART 16550 compatible
CP348 is optimized for plug&play use, based on Exar's fully UART compatible low power chip.
- High Performance Quad UART XR17V354
- 4 independently implemented serial channels
- RS232, RS422 full duplex, RS485 half duplex, per channel configurable

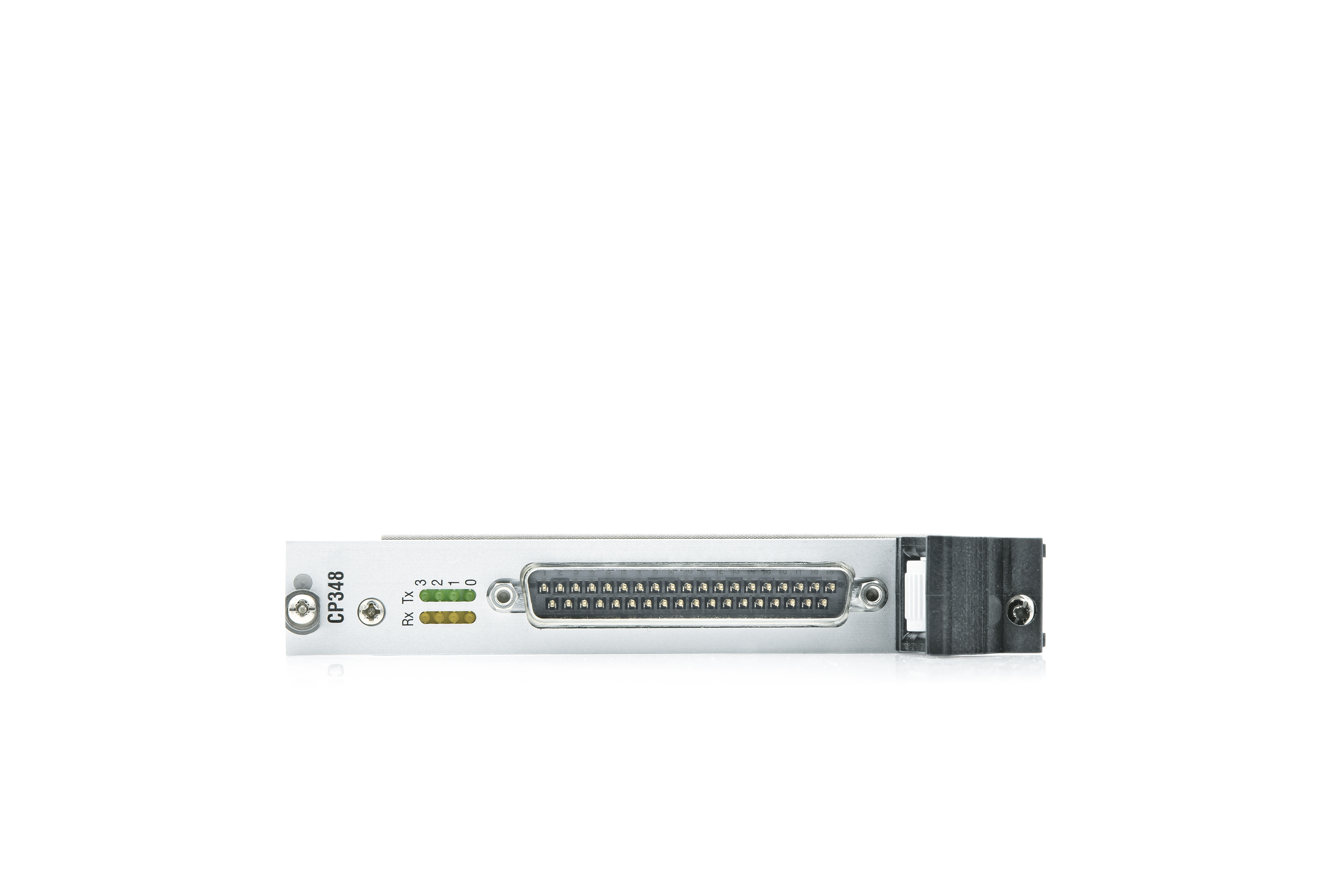

- 37PIN DSUB connector
- Isolation 2 kV between I/O and system
- Windows® 10, Linux®, VxWorks®, other OS on request
Standard and extended temperature versions are available. A serial port adapter cable DSUB37 to 4x DSUB 9 is provided as accessory.
CP348 connectors and API are compatible to CP347, just a driver update is needed.
Technical data
| Controller | Quad UART XR17V354 |
|---|---|
| Characteristics | 16550 UART compatible |
| Channels | 4 independently controlled |
| Function | RS232, RS422, RS485 |
| Frontpanel | 37-pin DSUB connector |
