This product is not recommended for new designs.Replacement product: VM6062
Not recommended for new designs

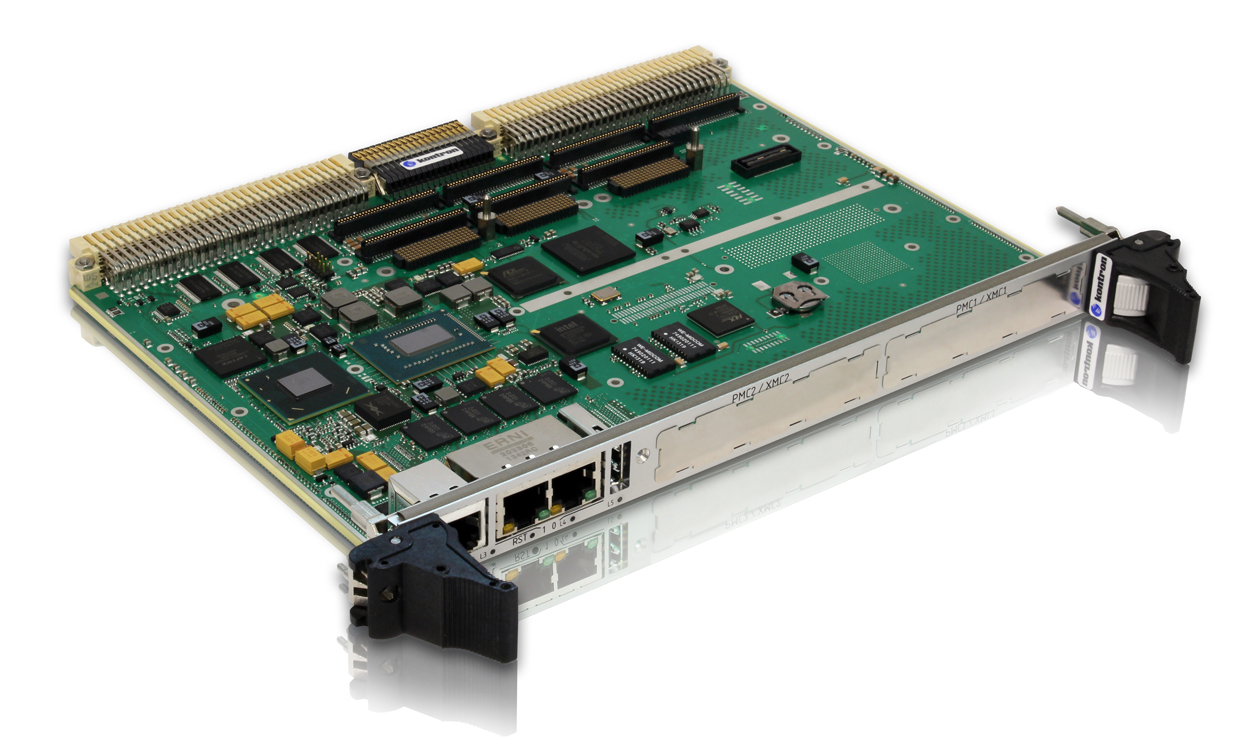

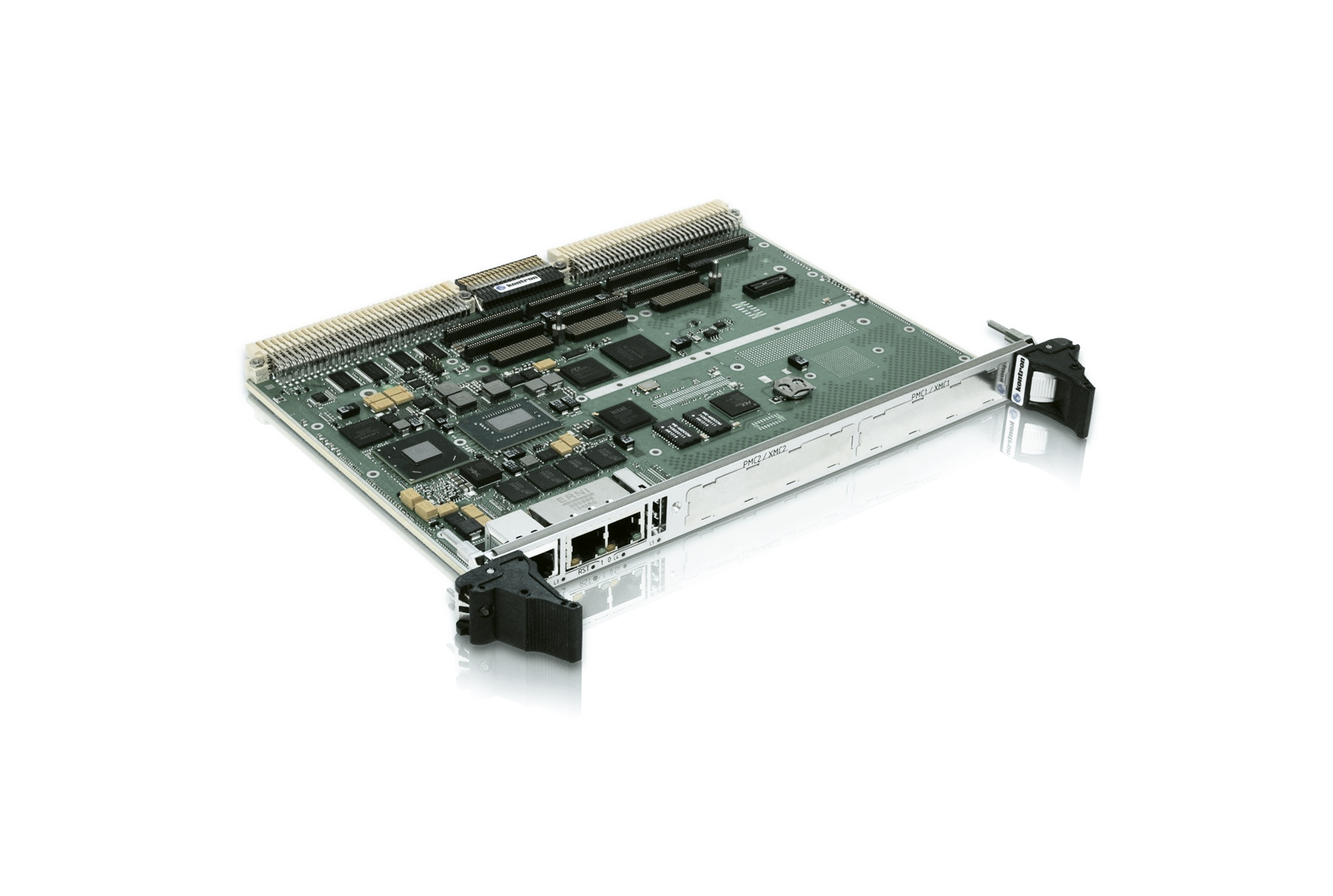

VM6052
6U VME 3rd Gen Intel® Core™ i7 Computer
- Dual-Core user configurable 0.8 GHz/14W, 1.7 GHz /17W , 2.2 GHz/25W
- Comprehensive I/O Capabilities - 4x Ethernet GBASE-T, Multiple Graphic Heads, USB, Serial, SATA, Personality Module, PMC/XMC, Flexible I/O
- Commercial and Rugged Versions - for the most demanding applications
- Simple Line-Placement - compatible VME eco system
- Long Term Supply - adapted to your application life cycle
Product Information
The VM6052 6U VME 2eSST Single Board Computer is built around Intel®’s state-of-the-art 3rd Generation Core™ i7 dual-core processor.
The VM6052 provides exceptional I/O capabilities onboard and outstanding flexibility by providing support for PMC and XMC including flexible I/O, storage mezzanines, and personality modules.
Accessory cards such as VME 6U dual PMC carrier and rear transition module complete the ecosystem.
Users of PENTXM2, PENTXM4 and VM6050 will find the same front and rear interfaces, making VM6052 the perfect replacement, and investment preservation with Kontron products an actual experience already spanning a decade.
Technical data
| Processor | Intel® dual-core Core i7 3517UE |
|---|---|
| CPU Clock | User configurable 0.8 GHz/14W, 1.7 GHz /17W , 2.2 GHz/25W |
| SRAM | Up to 16 GB dual channel DDR3 SDRAM, with ECC, soldered, running at 1333 MHz |
| Controller | Hub Mobile Intel® QM77 Express Chipset |
| Frontpanel | 1 or 2 x RS232/422/485, 2 x 1000BASE-T, 1 x USB 2.0, LEDS, 2 x PMC/XMC slots |
Downloads
General Safety Instruction
628.88 KB | March 26, 2026
VM6052/VM6054 User's Guide
6.8 MB | March 26, 2026
EZ1-VM6052/54 Getting Started
705.89 KB | March 26, 2026
VM6052/54 - AMI BIOS User Reference Manual
5.21 MB | March 26, 2026
VM6052/VM6054 PBIT User Manual
409.05 KB | March 26, 2026
VM6052/VM6054 Hardware Release Notes
943.87 KB | March 26, 2026
Release Notes Fedora 16 on VX304x, VX3035, VM6050, VM6052 and VM6054
1.79 MB | March 26, 2026
EZ1-VM6052/54 Quick Start
172.98 KB | March 26, 2026
Vx Works 6.8 ALMA VME Bus Driver
354.16 KB | March 26, 2026
Release Notes VxWorks 6.9 on VM6052 - VM6054
927.73 KB | March 26, 2026
Fedora 25 for VME / VPX Boards
731.28 KB | March 26, 2026
All other downloads such as drivers, BIOS, drawings etc. are available on Kontron's Customer Section
Accessories

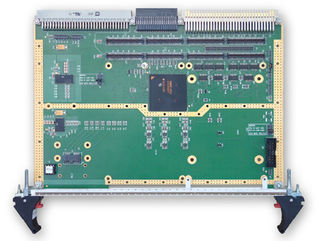

V2PMC2
V2PMC2
Dual-Slot 64-bit/66MHz PCI-X PMC Carrier

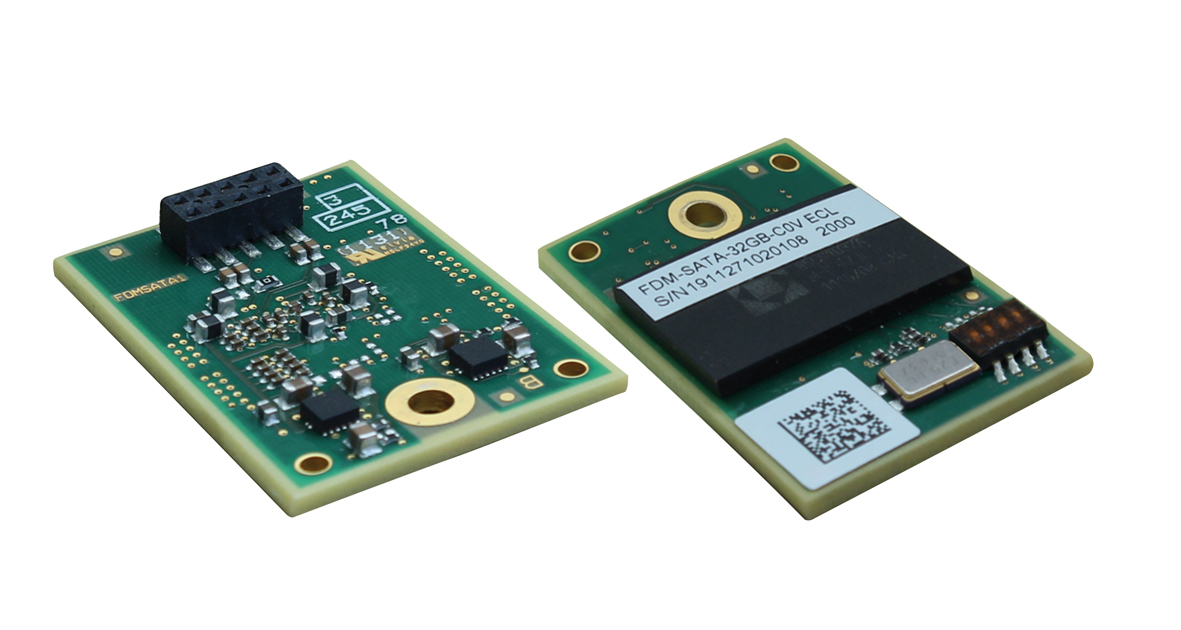

Nand Flash Modules
FDM-SATA
