VM6050 This product is legacy
6U VME High Performance Intel® Core™ i7 Computer
Mouseover Zoom loading...
Specifications
- High processing capacities
- Outstanding performance in VME format with SSE 4.2 CPU instruction set
- Exceptional I/O Versatility
- Build the solution fitting your program requirements: XMC, PMC and VITA 57 FMC support, Digital Graphics, Virtex 5 FPGA, SATA disk onboard
- Commercial and Rugged versions
- Designed for the most demanding applications
- Extended Life Cycle
- Adapted long term support program to your application life cycle

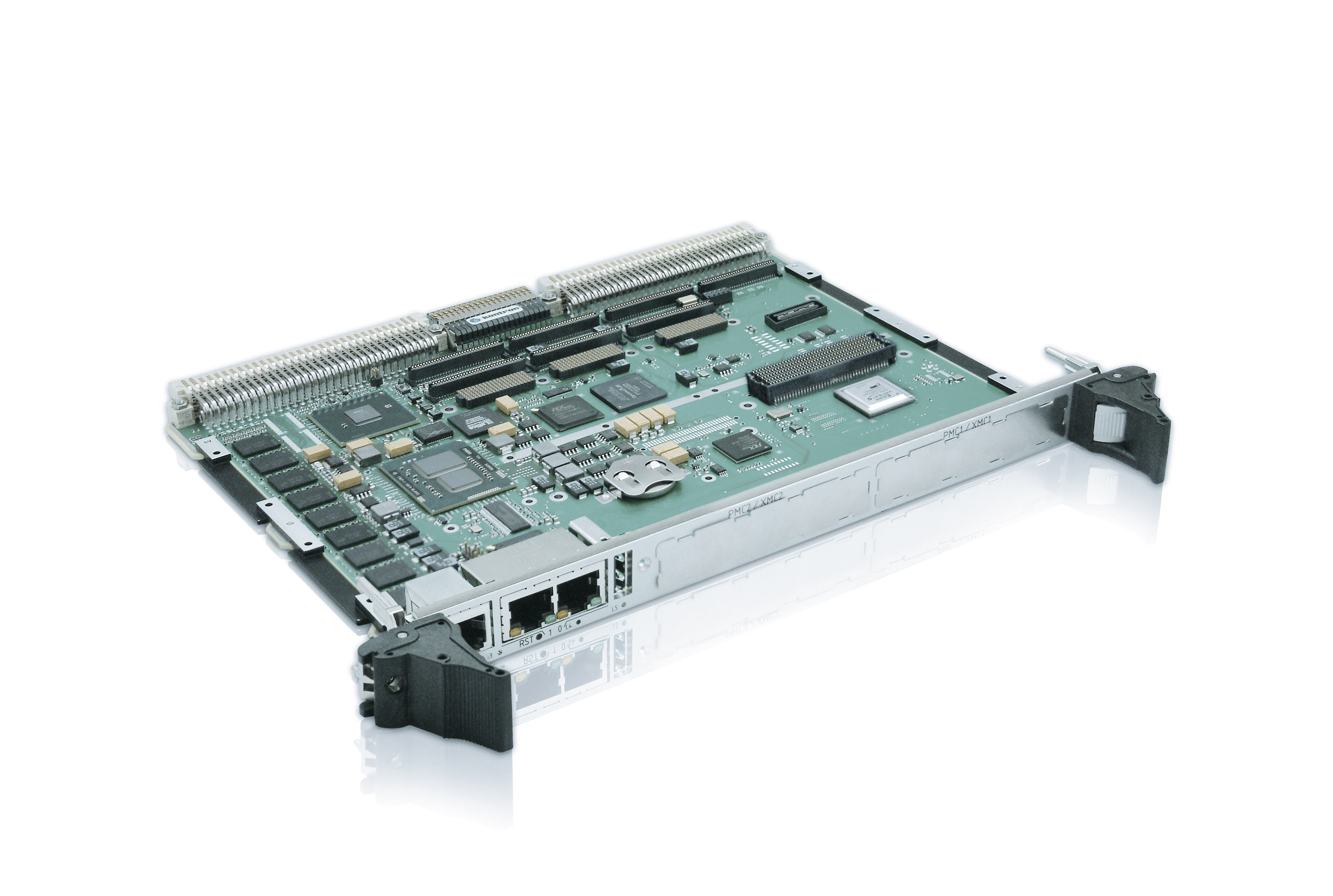

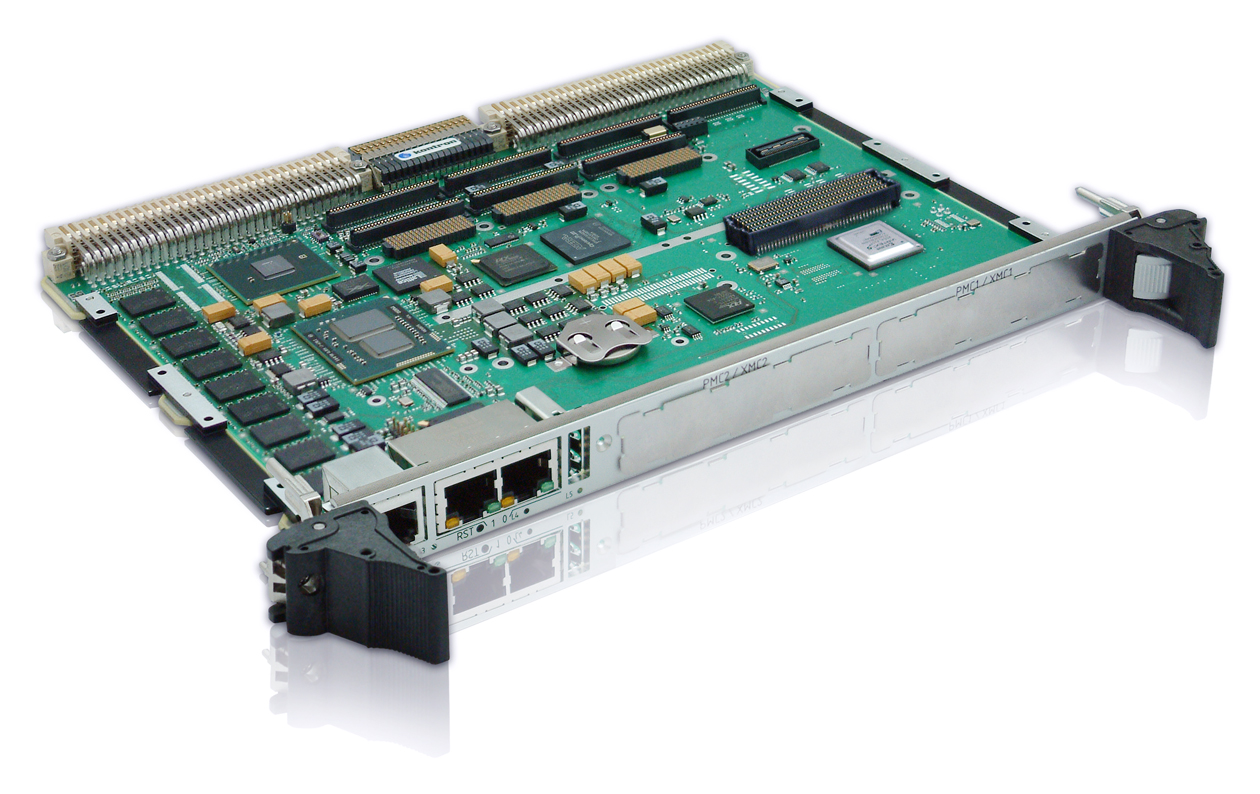

6U VME Intel® Core™ i7 SBC with XMC/PMC/FMC
The VM6050 is built around Intel®’s state of-the-art Core™ i7 dual-core processor. The VM6050 provides exceptional I/O capabilities onboard and outstanding flexibility by providing support for both PMC, XMC and FMC mezzanine cards.
The VM6050’s VME interface helps customers preserve their investment in legacy VME equipment.
Features
| Processor | Core i7-620LE |
| CPU Clock | from 1.2 GHz to 2 GHz |
| SRAM | Up to 8 GB dual channel DDR3 SDRAM running at 1066 MHz, with ECC, soldered |
| Flash | 4 MB FLASH, with recovery image and uEFI BIOS settings |
| Controller | Mobile Intel® QM57 Express Chipset |
| Frontpanel | 1 x RS232/422/485, 2 x 1000BASE-T, 1 x USB 2.0, LEDS, 2 x PMC/XMC slots |
Downloads
Datasheets
VM6050 Datasheet
[ vm6050-datasheet-02-2017.pdf, 2.3 MB, Jun.28.2018 ]
VME-VPX shortform catalog
[ shortform-vme-vpx.pdf, 4.09 MB, Jun.08.2022 ]
Kontron Modular Computers S.A.S. Service and Support Offering
This data sheet contains a detailed description of all the support and service offering from Kontron Modular Computers S.A.S, including the Long Term Supply (LTS) Services.
[ support-brochure-03-2018.pdf, 894.71 KB, Jun.28.2018 ]
Manuals
VM6050 User's Guide
[restrictions apply]
[ cadta93-4e-vm6050-ug.pdf, 6.55 MB, Sep.11.2017 ]
VM6050 AMI-BIOS User Reference Manual
[restrictions apply]
[ sddtf89-8e-vm6050-bios.pdf, 6 MB, Sep.11.2017 ]
VM6050 PBIT User's Guide
[restrictions apply]
[ sddtf88-4e-vm6050-pbit.pdf, 936.51 KB, Sep.11.2017 ]
ALMA2f - FPGA Bridge Release Notes
[restrictions apply]
ALMA2f-PCI 32-66 MHz
VME 2eSST FPGA Bridge Release Notes
[ cadia01-0e-alma2f-rn.pdf, 218.88 KB, Sep.11.2017 ]
VITA57 Development Kit User's Guide
[restrictions apply]
[ sddtf79-3e-vita57-dvpt-kit-ug.pdf, 438.44 KB, Sep.11.2017 ]
ALMA 2f-PCI 32-66 MHz
[restrictions apply]
VME 2eSST FPGA Bridge User Manual
[ cidta00-alma-2f-.pdf, 770.95 KB, Sep.11.2017 ]
Easy VM6050 Getting Started
[restrictions apply]
[ sddtf91-easy-vm6050-.pdf, 419.71 KB, Sep.11.2017 ]
Easy VM6050 Quick Start
[restrictions apply]
[ sddtf90-easy-vm6050-.pdf, 168.28 KB, Sep.11.2017 ]
Vx Works 6.8 ALMA VME Bus Driver
[restrictions apply]
[ sddtg00-1e-vxworks68-69alma.pdf, 354.16 KB, Sep.11.2017 ]
VM6050 - User's Guide for Windows XP Embedded BSP
[restrictions apply]
[ sddtf92-0e-vm6050-ug-for-windows-xp.pdf, 306.19 KB, Sep.11.2017 ]
General Safety Instruction
[ general-safety-instructions.pdf, 560.72 KB, Jan.04.2021 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
More Downloads
All other downloads such as drivers, bios, drawings etc. are available on Kontron’s Customer Section
