This product is legacy and no longer actively supported.

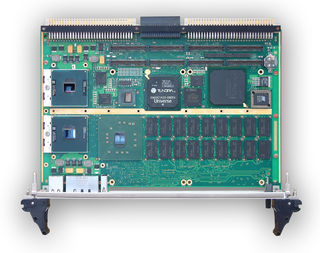

PENTXM4
Twin 1.67 GHz Dual-Core Intel Xeon (replacement product -> VM6054)
- Up to 4 GB of DDR2-SDRAM
- 4 GB soldered USB FLASH disk option
- Dual Ethernet 10/100/1000 configurable on front or rear VITA 31
- Dual USB 2.0 ports
- Dual SATA ports
6U VME Rugged Quad Core SBC with IPMI
The single slot PENTXM4 SBC is ideal for thermally constrained environments and includes all the up to date I/O standard interfaces required in a server blade PC.
Furthermore, the PENTXM4 product supports the Intelligent Platform Management Interface (IPMI) specification for easy integration in complex systems. The PENTXM4 is therefore ideal for bandwidth intensive applications both in a standalone or in a complex cluster configuration.
Learn more: Rugged & COTS Technologies
Downloads
General Safety Instruction
628.88 KB | March 26, 2026
PENTXM2 or PENTXM4 SATA HDD Mounting Kit
480.26 KB | March 26, 2026
PENTXM2 or PENTXM4 Connection Guide
1.5 MB | March 26, 2026
PENTXM2 or PENTXM4 User's Guide
2.68 MB | March 26, 2026
PENXTM2/RC or PENTXM4/RC Supplement User's Guide
647.54 KB | March 26, 2026
PENTXM2/RA or PENTXM4/RA Supplement User's Guide
739.32 KB | March 26, 2026
PENTXM2 or PENTXM4 Hardware Release Notes
925.55 KB | March 26, 2026
BIOS 1.00.60 For PENTXM2/4
244.86 KB | March 26, 2026
Conduction Cooling Techniques for Rugged Computers
