MSMST

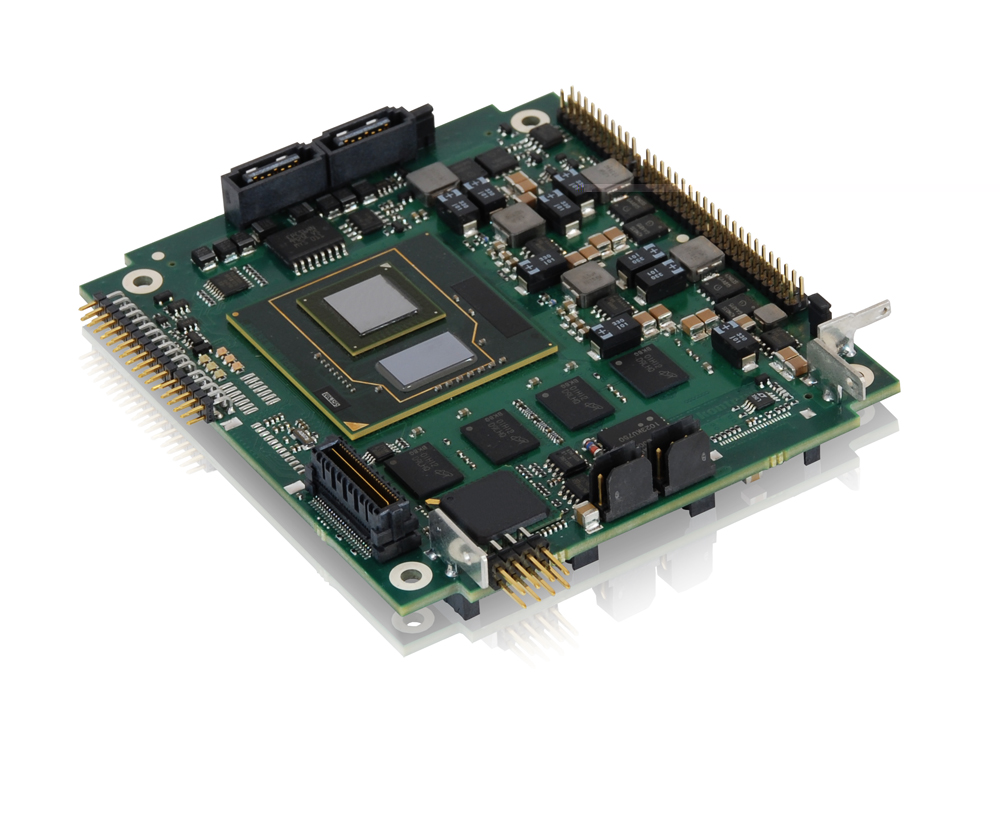

PCIe/104™ SBC with Intel® Atom™ processor E6x5CT series CPU 1.3GHz, 1GB RAM
- Flexible FPGA I/O configuration for application-specific requirements
- HSMC for custom interfaces
- Minimal space requirements
Product Information
The MICROSPACE® MSMST is based on the latest Intel® Atom™ E665CT, which consists of an Intel® Atom™ Processor and an Arria® GX 2 FPGA. It's available with a clocking speed up to 1.3 GHz and 2GB soldered RAM. The board is populated with two SATA and two USB 2.0 interfaces.Over an additional highspeed media Connector, an extension board with GbE, VGA or DVI as well as digital and analog audio is available.
In order to take full advantage of the FPGA flexibility, an HSMC slot is available on the bottom side of the board. A few single ended and high speed differential pairs are directly connected from the FPGA to the connector.
In order to take full advantage of the FPGA flexibility, an HSMC slot is available on the bottom side of the board. A few single ended and high speed differential pairs are directly connected from the FPGA to the connector.
