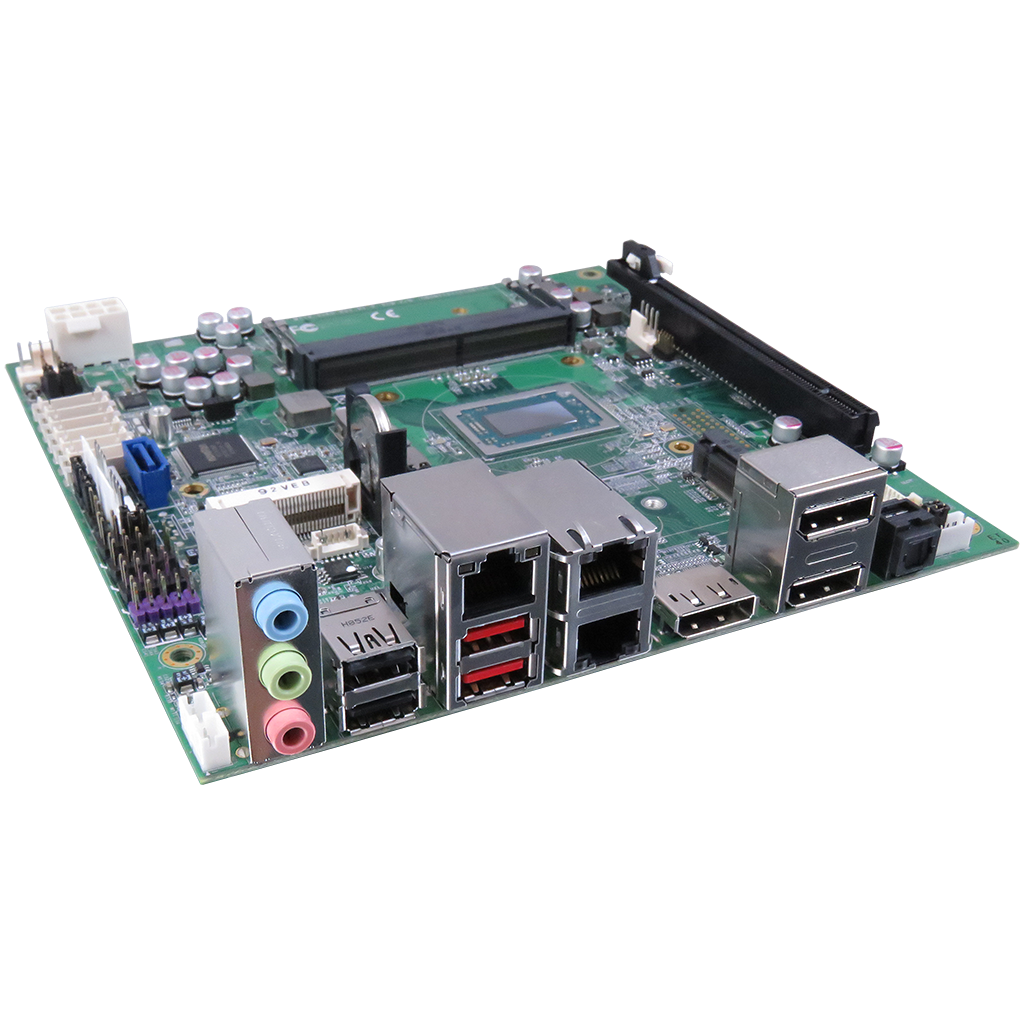

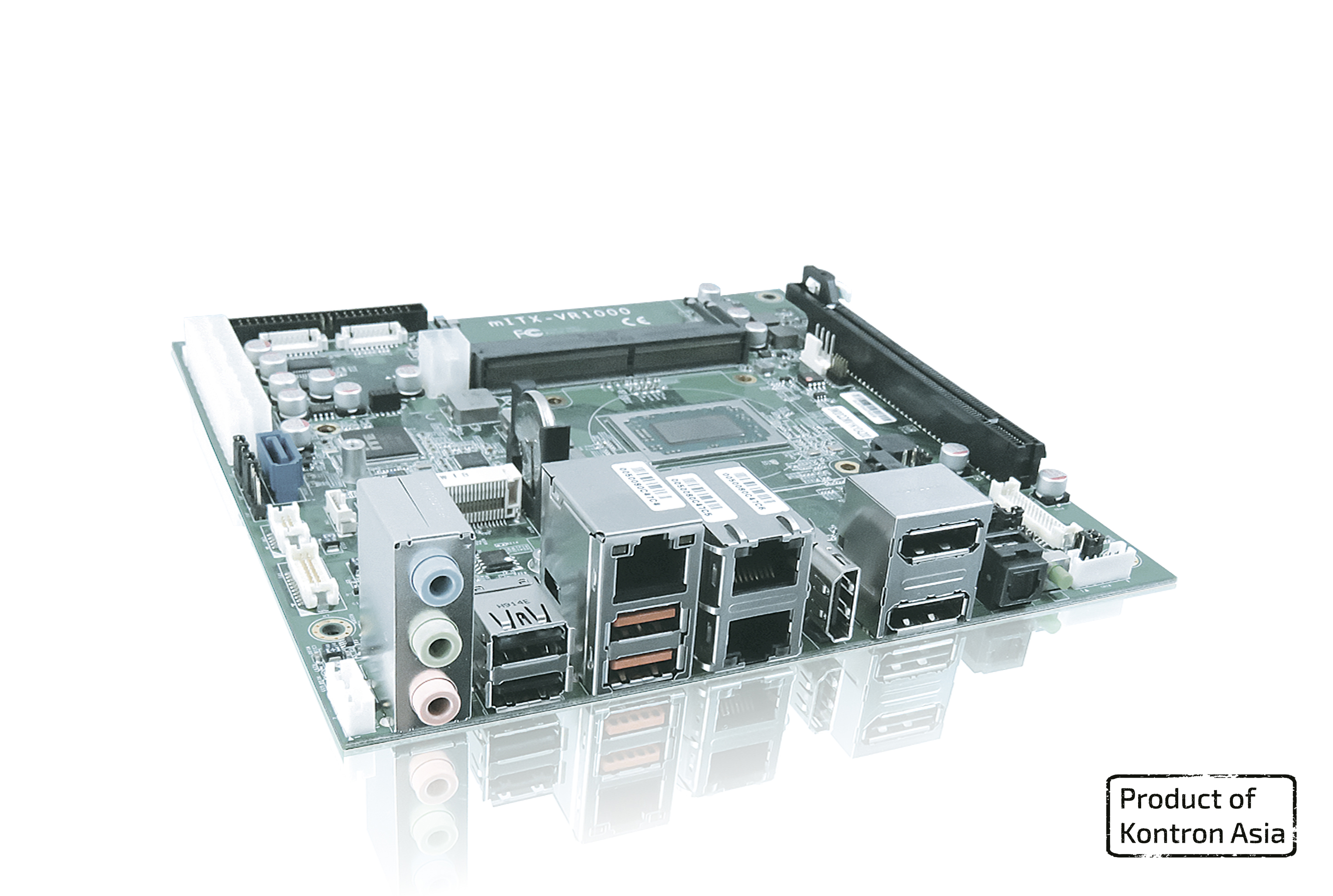

mITX-VR1000 V2.0
Mini-ITX Industrial Motherboard with AMD Ryzen™ Embedded V1000 Series Processors
- 1x DP++, 2x DP, 1x LVDS or 2x DP++, 2x DP for quadruple display support
- 3x GbE LAN for Ethernet
- 2x USB 3.1, 5x USB 2.0, 2x RS232/422/485, 4x RS232, 8-bit DIO for peripherals
- 1x SATA 3.0 for hard drive
- 1x mPCle, 1x M.2 Key B, 1x M.2 Key M, 1x PCIe x16 (x8 signal) for SSD, wireless & application-specific expansion
Quadruple Display Support
mITX-VR1000 V2.0 is a Mini-ITX form factor motherboard equipped with AMD Ryzen™ V1000 Series processors, which are perfect match for digital casino gaming, medical display, thin clients, industrial PCs and other application supported extraordinary visual interface with efficient power consumption.
Integrating a high performance of up to 4 CPU cores and 11 GPU cores, mITX-VR1000 V2.0 can power up to four independent displays in 4K resolution.
Furthermore, mITX-VR1000 V2.0 have one SATA 3.0 socket, one mPCIe socket, one M.2 Key B socket, one M.2 Key M socket and one PCIe x16 slot (x8 signal) for storage, wireless and application-specific expansion. Three GbE LAN ports help to deliver sufficient traffic flow for huge data volumes.
Technical data
| Processor | AMD Ryzen™ V1807B (Quad Core, 4M Cache, up to 3.80 GHz, FP5, 45 W TDP) AMD Ryzen™ V1202B (Dual Core, 4M Cache, up to 3.20 GHz, FP5, 15 W TDP) |
|---|---|
| Main Memory | 2x DDR4 3200 SO-DIMM up to 32 GByte (V1807B) 2x DDR4 2400 SO-DIMM up to 32 GByte (V1202B) |
| Graphics Controller | AMD Radeon™ Vega 11 (for models w/ V1807B) AMD Radeon™ Vega 3 (for models w/ V1202B) |
| Display | Configurations 1: 1x LVDS (24-bit, 2-ch, 1920 x 1200 @ 60 Hz) 1x DP++ (on rear, 4096 x 2160 @ 60 Hz) 2x DP (on rear, 4096 x 2160 @ 60 Hz) Configuration 2: 2x DP++ (on rear, 4096 x 2160 @ 60 Hz) 2x DP (on rear, 4096 x 2160 @ 60 Hz) Quadruple display support |
| Audio Controller | Realtek ALC662 |
Downloads
Technical Specification
Motherboard and SMARTCASE™ Tech Specs
8.28 MB | March 26, 2026
White Paper
Modules and Motherboards WP
