mITX-SKL Mini-ITX Motherboard Datasheet
524.44 KB | March 26, 2026
This product is not recommended for new designs.

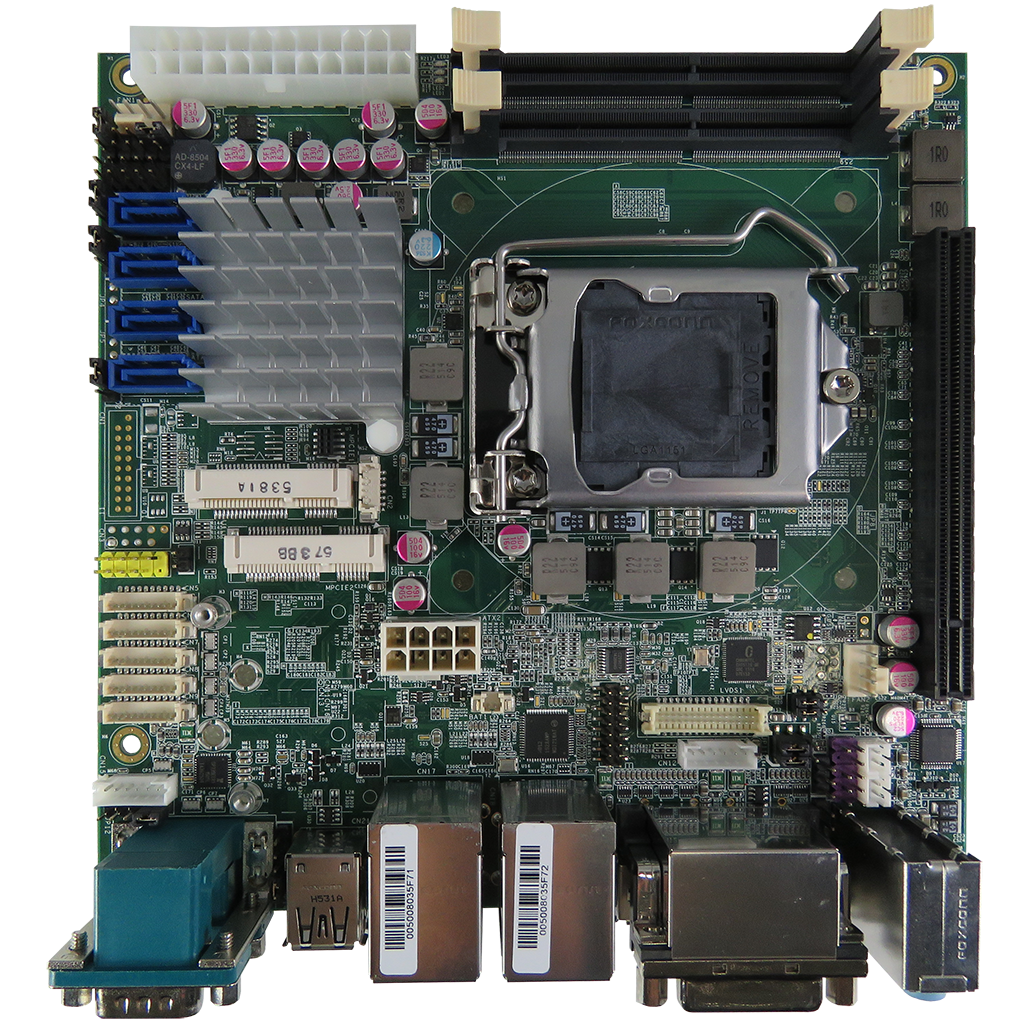

mITX-SKL
Mini-ITX Industrial Motherboard with 6th Gen Intel® Core™ / Celeron® S-Series Processors
- 1x LVDS / 1x VGA, 2x DP, 1x DVI-D for display output
- 2x GbE LAN for Ethernet
- Up to 6x USB 3.0, up to 6x USB 2.0, 3x RS232/422/485, 3x RS232, 8-bit DIO
- 4x SATA 3.0, up to 2x mSATA for storage
- Up to 2x mPCIe, 1x PCIe x16 for expansion
Extended Temperature Support
mITX-SKL is a Mini-ITX form factor industrial grade motherboard equipped with 6th Generation Intel® Core™ / Celeron® S-Series Core™ i Processors. It delivers greatly improved graphics performance, power efficiency and wireless connectivity. Additionally, it enhances computation performance with DDR4 memory support.
A Variety of Expansion Interfaces>
In addition to triple display support and a great number of USB interfaces, mITX-SKL supports 6x COM and 8-bit DIO, for industrial legacy devices connection. It has a variety of expansion slots /sockets including PCIe x16, mPCIe, SATA 3.0 and mSATA slots / sockets, for wireless, storage or other functional enhancements. Some models support RAID and allow data storage in multiple spaces to protect data against corruption as well as offering a faster data service.
Extended Temperature Support
An extended temperature model is offered allowing system integrators to develop a reliable system for use in harsh industrial environments with extreme ambient temperatures.
Technical data
| Processor | 6th Gen Intel® Core™ / Celeron® S-Series Processors (FCLGA1151 Socket) |
|---|---|
| Chipset | Intel® H110 Intel® Q170 |
| Main Memory | 2x DDR4 2133 SO-DIMM up to 32 GByte (Core™ CPU) 2x DDR4 1866 / 2133 SO-DIMM up to 32 GByte (Celeron® CPU) |
| Graphics Controller | Intel® HD Graphics 530 / 510 |
| Display | 1x LVDS (24-bit, 2-ch, 1920 x 1200 @ 60 Hz) 1x VGA (by header, 1920 x 1200 @ 60 Hz) 1x DVI-D (on rear, 1920 x 1200 @ 60 Hz) 2x DP (on rear, 4096 x 2304 @ 60 Hz) Dual display support (H110 models, LVDS and VGA are alternative each other) Triple display support (Q170 models, LVDS and VGA are alternative each other) |
