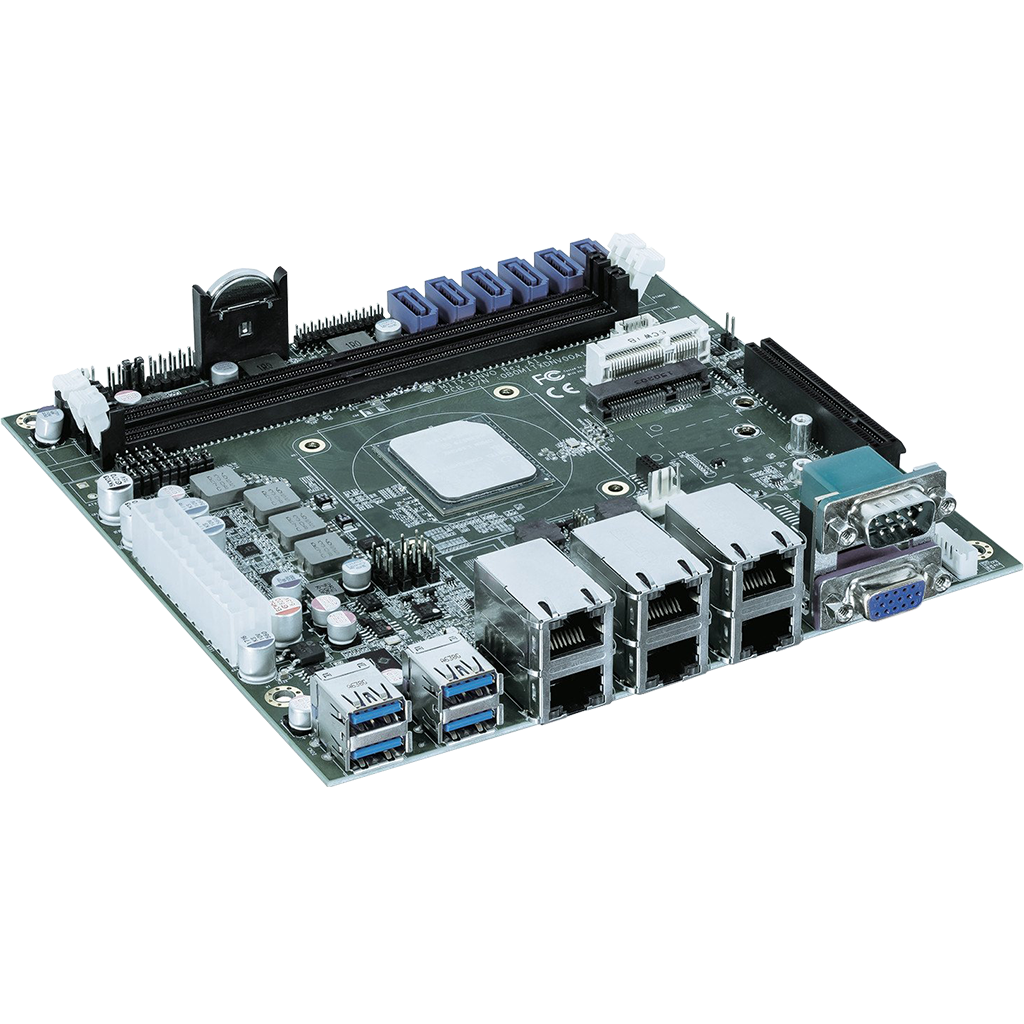

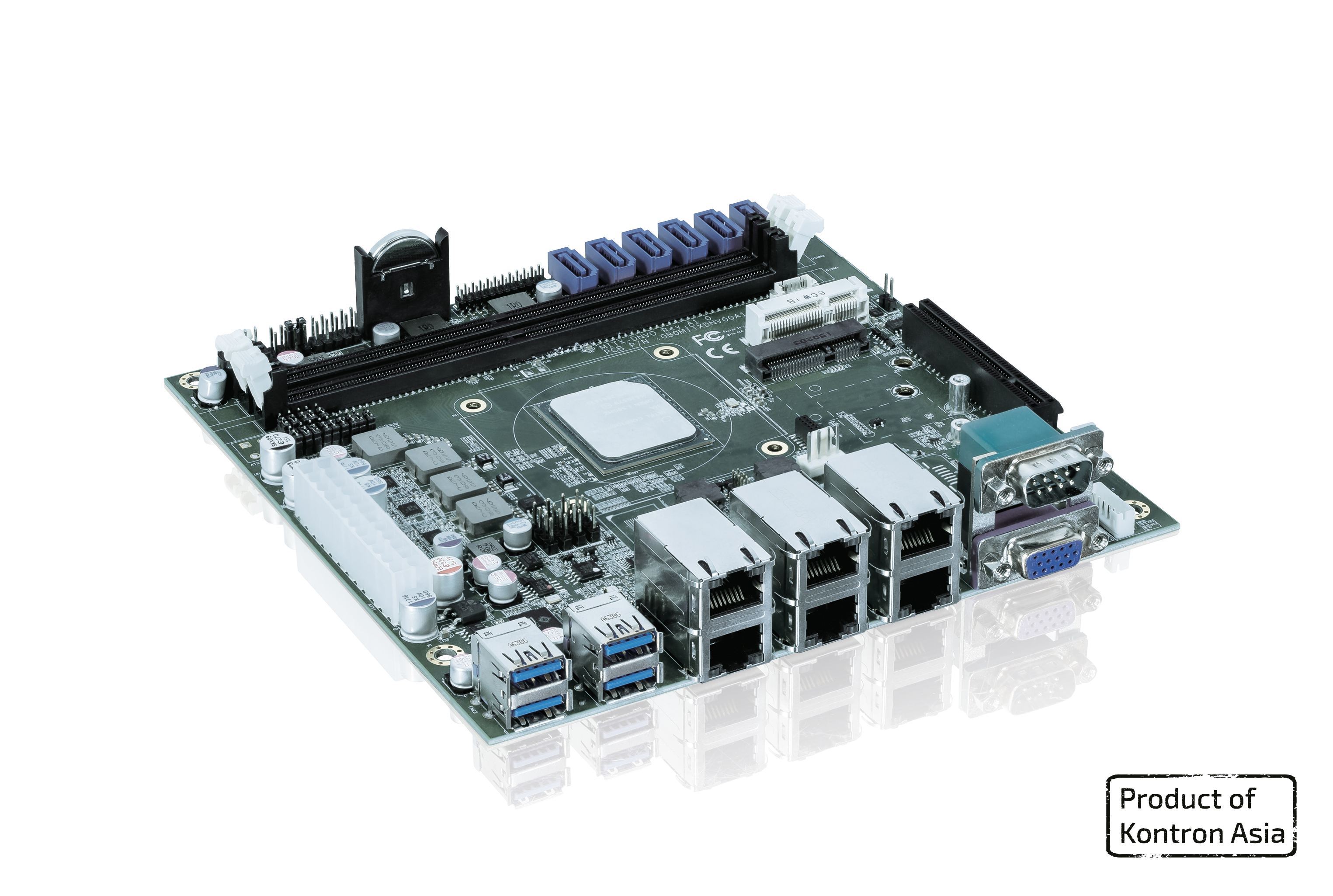

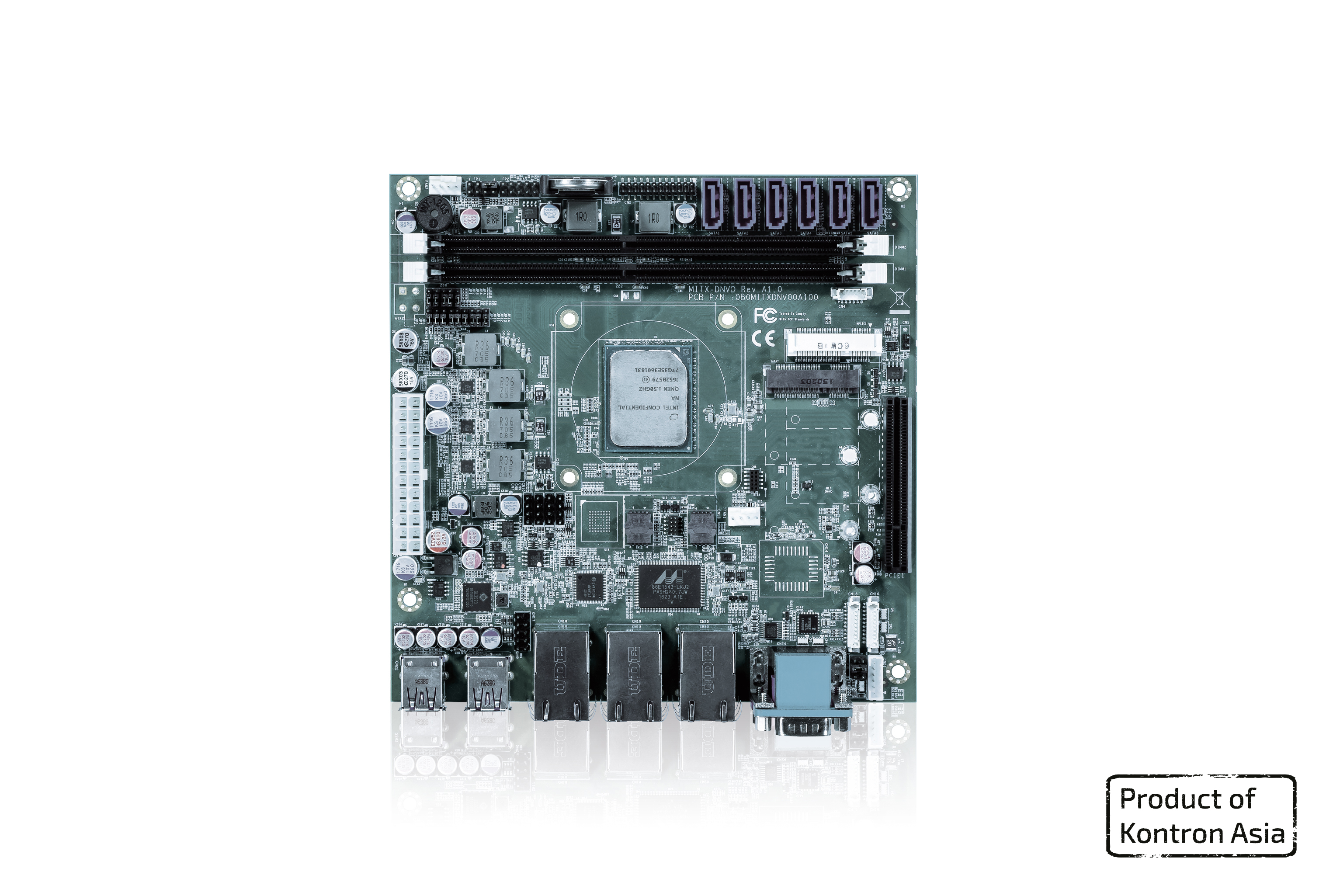

mITX-DNV
Mini-ITX Industrial Motherboard supporting Intel® Atom® Processor C3000 Series
- 1x VGA for display output
- 6x GbE LAN for Ethernet
- 4x USB 3.0, 2x USB 2.0, 2x RS232/422/485, 1x 8-bit DIO for peripherals
- 6x SATA 3.0, Up to 1x mSATA, 1x M.2 Key B, optional eMMC for storage
- Up to 1x mPCIe, 1x PCIe x8 for expansion
Ideal for Dense Low-Power Applications
Low-power Server Motherboard
Kontron's mITX-DNV is a Mini-ITX industrial motherboard equipped with Intel® Atom® C3000 Series processors, which is specially suitable for dense low-power network, storage, and IoT applications.
Large Storage and Networking Capacity
It has six SATA 3.0 sockets and one M.2 Key B socket for HDD / SSD storage device connection as well as optional eMMC drive soldered on-baord. In addition, It also supports six GbE LAN ports to deliver sufficient traffic flow for huge data volumes.
Flexible Expansion
The mITX-DNV reserves one mPCIe slot and one PCIe x8 slot, allowing users to expand specific functions such as wireless connection or additional network interface card.
Technical data
| Processor | Intel® Atom® C3338 (Dual Core, 4M Cache, up to 2.20 GHz, FCBGA1310, 9 W TDP) Intel® Atom® C3538 (Quad Core, 8M Cache, up to 2.10 GHz, FCBGA1310, 15 W TDP) |
|---|---|
| Main Memory | 1x DDR4 1866 UDIMM up to 128 GByte (Atom® C3338 model) 2x DDR4 2133 UDIMM up to 256 GByte (Atom® C3538 model) |
| Graphics Controller | RDC® C6139 |
| Display | 1x VGA (on rear) |
| Ethernet | 6x GbE LAN (RJ45 on rear, 2x Intel® I210-AT, 4x Marvell® 88E1543) |
Downloads
Technical Specification
Motherboard and SMARTCASE™ Tech Specs
8.28 MB | March 26, 2026
White Paper
Modules and Motherboards WP
More downloads
All other downloads such as drivers, BIOS, drawings etc. are available on Kontron's Customer Section
Related products & solutions
SMARTCASE™ S720
Chassis Kit Solution for D363x-S mITX
Services & Add-ons
Kontron ToolSuite
Central Management Solution for BIOS Configuration in Embedded Systems.
KontronOS
The Secure, Hardened Linux®-Based Operating System for Edge Devices
Variants
Select variants here
mITX-DNV-C3338
46013-0000-15-2
Intel® Atom™ C3338, 1x DDR4 UDIMM, Operating Temperature: 0 °C ~ 60 °C
mITX-DNV-C3538
46013-0000-21-4
Intel® Atom™ C3538, 2x DDR4 UDIMM, Operating Temperature: 0 °C ~ 60 °C
mITX-DNV-C3338-ET
46013-0000-15-2EXT
Intel® Atom™ C3338, 1x DDR4 UDIMM, Operating Temperature: -20 °C ~ 70 °C
mITX-DNV-C3538-ET
46013-0000-21-4EXT
Intel® Atom™ C3538, 2x DDR4 UDIMM, Operating Temperature: -20 °C ~ 70 °C
Accessories
Select accessories here
COM_Port Cable
1064-2427
D-SUB 9P (male) to 1x10P 1.25 pitch, L=350 mm
DIO Cable
1065-3137
D-SUB-9P(Female) to 1x10P 1.25 pitch, L=200mm
2 Ports USB 2.0 Cable
1064-2429
USB (female) ×2 to 2×5P 2.54 pitch, L=250 mm
SATA Cable with Lock
1064-2431
SATA Cable with Lock, 1X7P (1.27 pitch), L=460 mm

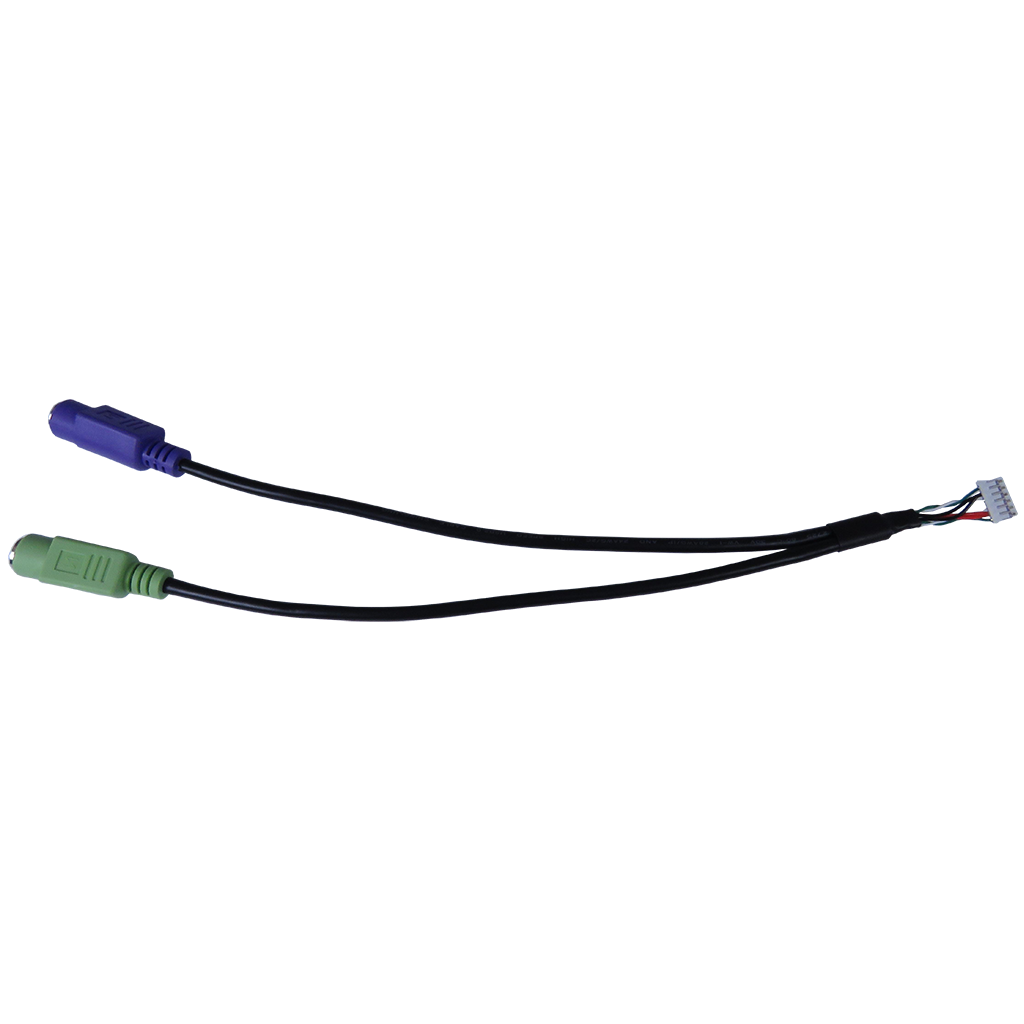

PS/2 Cable 1X6P (2 pitch), L=250 mm
1065-3151
Y-cable, wafer connector to KB&MS connector, L=250 mm Kontron Asia Art.Nr.: 0C5020002500010L Kontron Europe Art.Nr.: 1065-3151
SIM Card Holder Kit
1064-2434
with SIM card holder x1, cable x1,and screws x4

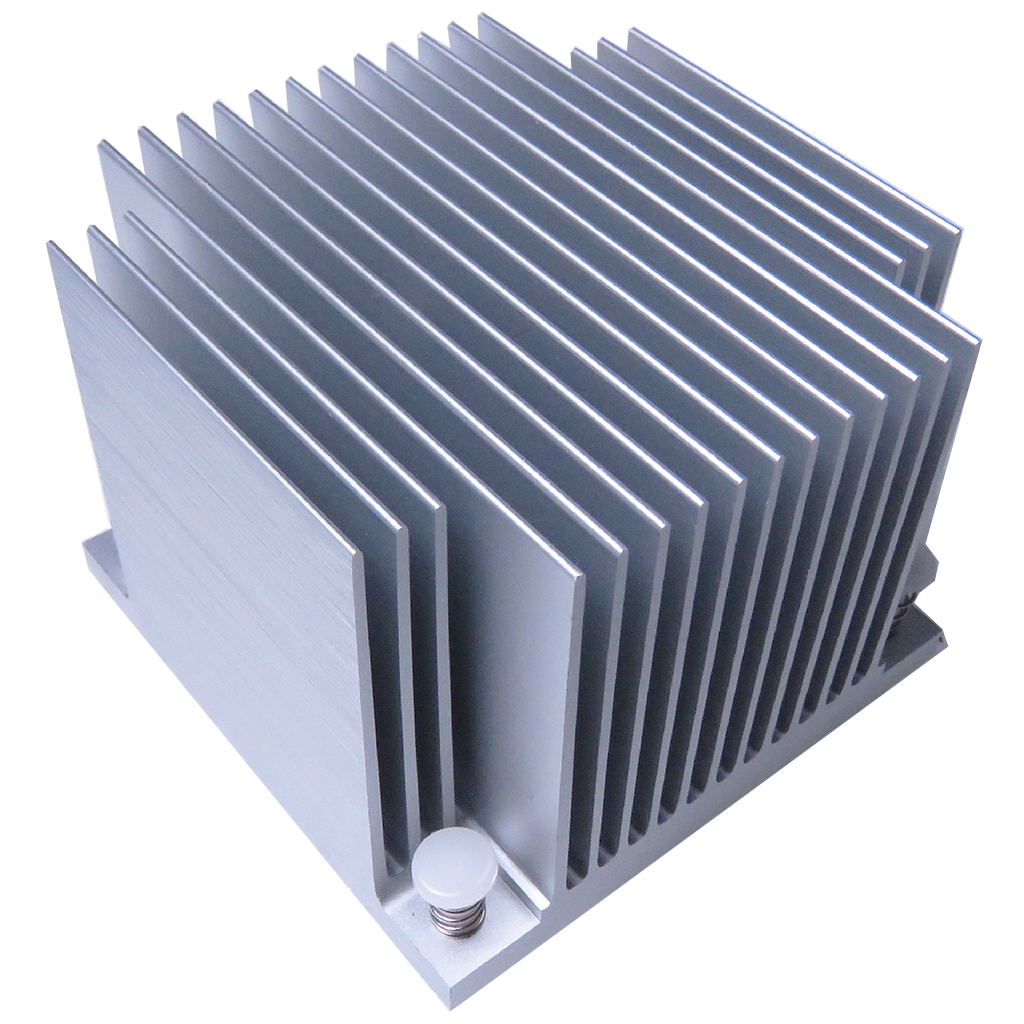

Heatsink AL6063 60×60×45 mm
1065-3265
60×60×45 mm, AL6063, Push Pin x4, Thermal Pad: TMP 35 32x32x0.2 mm Kontron Asia Art.Nr.: 0H05XX000002070L Kontron Europe Art.Nr.: 1065-3265
