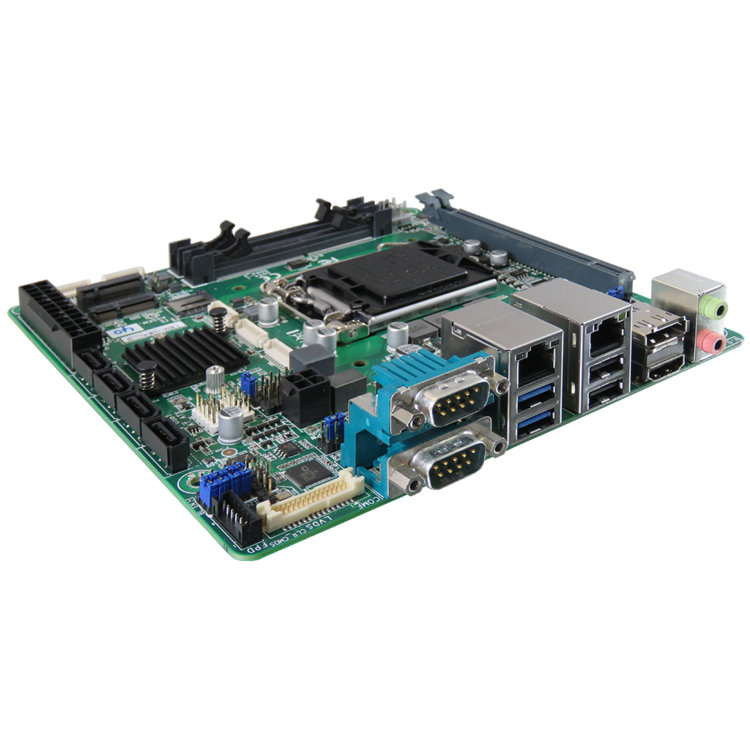

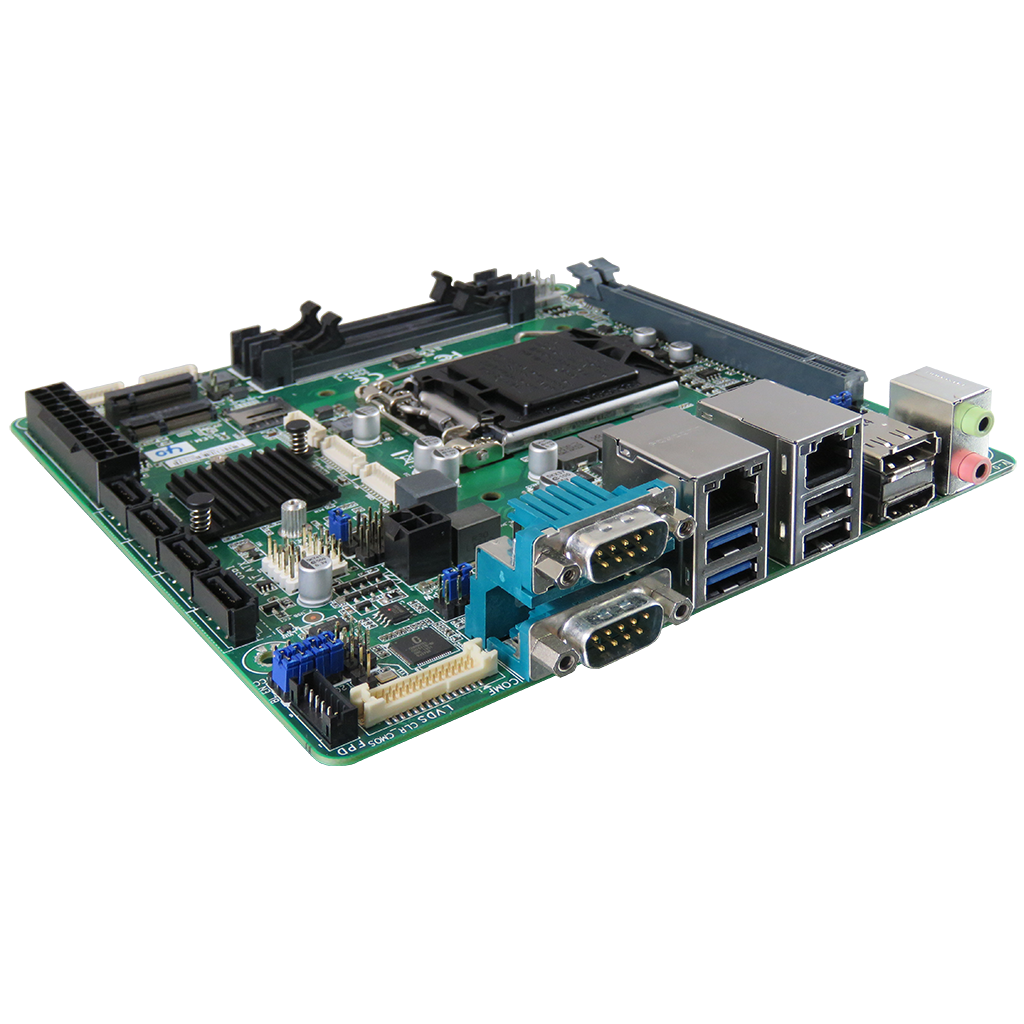

MITX-CFL0 Series
Mini-ITX Motherboard with 9th / 8th Gen Intel® Core™ / Celeron® S-Series Processors
Specifications
- 1x LVDS, 1x DP++, 1x HDMI 2.0 for video output
- 2x GbE LAN for Ethernet
- 2x USB 3.0, 6x USB 2.0, 2x RS232/422/485, 4x RS232, 8-bit DIO, 1x I2C for peripherals
- 4x SATA 3.0 for storage
- 1x M.2 Key M, 1x M.2 Key B, 1x M.2 Key E, 1x PCIe x16 for expansion
Faster Connectivity and Storage
Enhanced Performance Computing Platform
MITX-CFL0 Series, a Mini-ITX industrial motherboard powered by 9th / 8th Generation Intel® Core™ / Celeron® S-Series Processors, is designed for enhanced embedded applications in infotainment, industrial automation and process control segments.
Intel® CNVi & NVMe SSD Support
In addition to a variety of peripheral interfaces, MITX-CFL0 Series has four SATA 3.0 sockets, one PCIe x16 slot, one M.2 Key M socket, one M.2 Key B socket and one M.2 Key E socket for great storage and expansion possibilities. The M.2 Key E socket supports Intel® CNVi technology, providing faster Wi-Fi speeds for IoT-connected applications. The M.2 Key M supports NVMe SSD for higher-speed and lower-latency storage drive.
Features
| Processor | 9th Generation Intel® Core™ S-Series (LGA1151 socket, up to 65 W TDP) 8th Generation Intel® Core™ S-Series (LGA1151 socket, up to 65 W TDP) 8th Generation Intel® Celeron® S-Series (LGA1151 socket, up to 65 W TDP) |
| Chipset | Intel® Q370 Intel® H310 |
| Main Memory | 2x DDR4 2666 SO-DIMM up to 32 GByte (Core™ i9 / i7 / i5) 2x DDR4 2400 SO-DIMM up to 32 GByte (Core™ i3 / Celeron®) |
| Graphics Controller | Intel® UHD Graphics 630 (Core™) Intel® UHD Graphics 610 (Celeron®) |
| Display | 1x LVDS (24-bit, 2-ch, 1920 x 1200 @ 60 Hz) 1x DP++ (on rear, 4096 x 2304 @ 60 Hz) 1x HDMI 2.0 (on rear, 3840 x 2160 @ 60 Hz) Triple display support for Q370 Dual display support for H310 |
| Audio Controller | Realtek ALC887 |
| Audio | 2x Speaker-out (3 W, by header) 2x Line-out (1x on rear, 1x by header) 2x Mic-in (1x on rear, 1x by header) |
| Ethernet | 2x GbE LAN (RJ45, 1x Intel® I211-AT, 1x Intel® I219-LM (Q370) / I219-V (H310)) |
| USB | 2x USB 3.0 (Type A on rear) 6x USB 2.0 (2x Type A on rear, 4x by header) |
| Serial | 2x RS232/422/485 (DB9 on rear) 4x RS232 (by header) |
| Available I/Os | 1x 8-bit DIO (by header) 1x I2C (by header) |
| SATA | 4x SATA 3.0 |
| Expansion | 1x M.2 Key M (type 2242 / 2280, mixed w/ PCIe x4) 1x M.2 Key B (type 2242 / 3042 / 2280, w/ SATA / PCIe x1 / USB 3.0 for Q370) 1x M.2 Key B (type 2242 / 3042 / 2280, w/ USB 3.0 for H310) 1x M.2 Key E (type 2230, w/ PCIe x1 / USB 2.0, CNVi support) 1x PCIe x16 (one x16 signal for H310 / one x16 or two x8 signal for Q370) 1x Micro SIM Card Cage (connected to M.2 Key B) |
| Input Voltage | DC +5 V / +12 V / -12 V / +3.3 V / 5 VSB DC 12 V |
| Power connector | 2x12-pin ATX connector (DC +5 V / +12 V / -12 V / +3.3 V / 5 VSB) 2x2-pin ATX connector (DC 12 V) |
| BIOS | AMI uEFI BIOS w/ 128 Mb SPI Flash |
| Watchdog | Programmable WDT to generate system reset event |
| System Monitoring | Input & Core Voltages CPU & System Temperatures |
| Real Time Clock | Chipset integrated RTC |
| Security | TPM 2.0 support (Infineon SLB9665) |
| Cooling | 1x Wafer for CPU Smart Fan 1x Wafer for System Smart Fan |
| Operating System | Windows 10 |
| Form Factor | Mini-ITX (170 mm x 170 mm / 6.70” x 6.70”) |
| Operation Temperature | 0 °C ~ 60 °C / 32 °F ~ 140 °F |
| Humidity | 0 % ~ 95 % |
| Compliance | CE Class A FCC Class A |
