Micro Client 3 150

15“ display in 4:3 format, resolution 1024 x 768 px
Resistive touch 5-wire
Higher performance with Intel® Atom™ D2550, dual core
LED backlight for all devices (longer life time, > 50kh)
Extended interface support (e.g.4x USB rear, 1x DP)

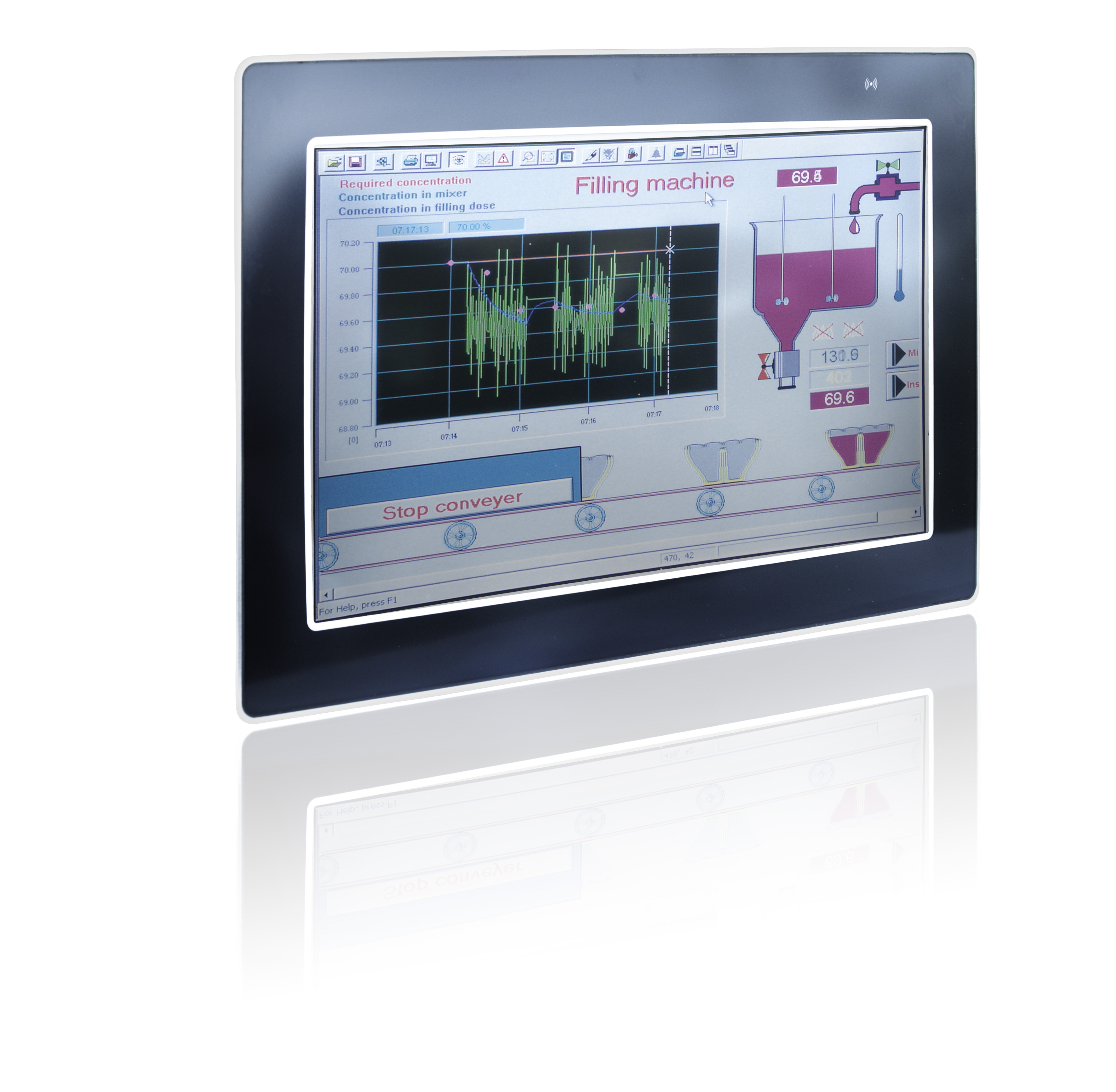

Micro Client 3 with 15.0" display

The Micro Client 3 touch panel computers are ideally suited for production line optimization and supervisory control applications. The new Micro Client 3 product family offers all the latest features required for intelligent displays in an industrial environment like multitouch functionality for operating and monitoring, modern industrial design and widescreen format.

Based on the Intel® Atom™ D2550, dual core the Micro Client 3 offers high computing performance and outstanding graphic performance. The LED backlights for all devices ensure longer lifetime and the gold cap makes the Micro Client 3 maintenance-free. Shock and vibration resistance, thermal stability and compliance with the strictest EMC standards are standard features for all Micro Clients.

Technical support

Technical data

Dimensions (H x W x D)	334x429x71 mm
Display	15.0"TFT
I/O Standard	2x USB 2.0, 2x USB 3.0, 2x LAN 10/100/1000, 1x RS232, 1x RS232/RS422/RS485 opt. 1x DP
Processor	Intel® Atom™ Cedarview D2550, dual core up to 2x 1.86GHz
Weight	ca. 6.5 kg
