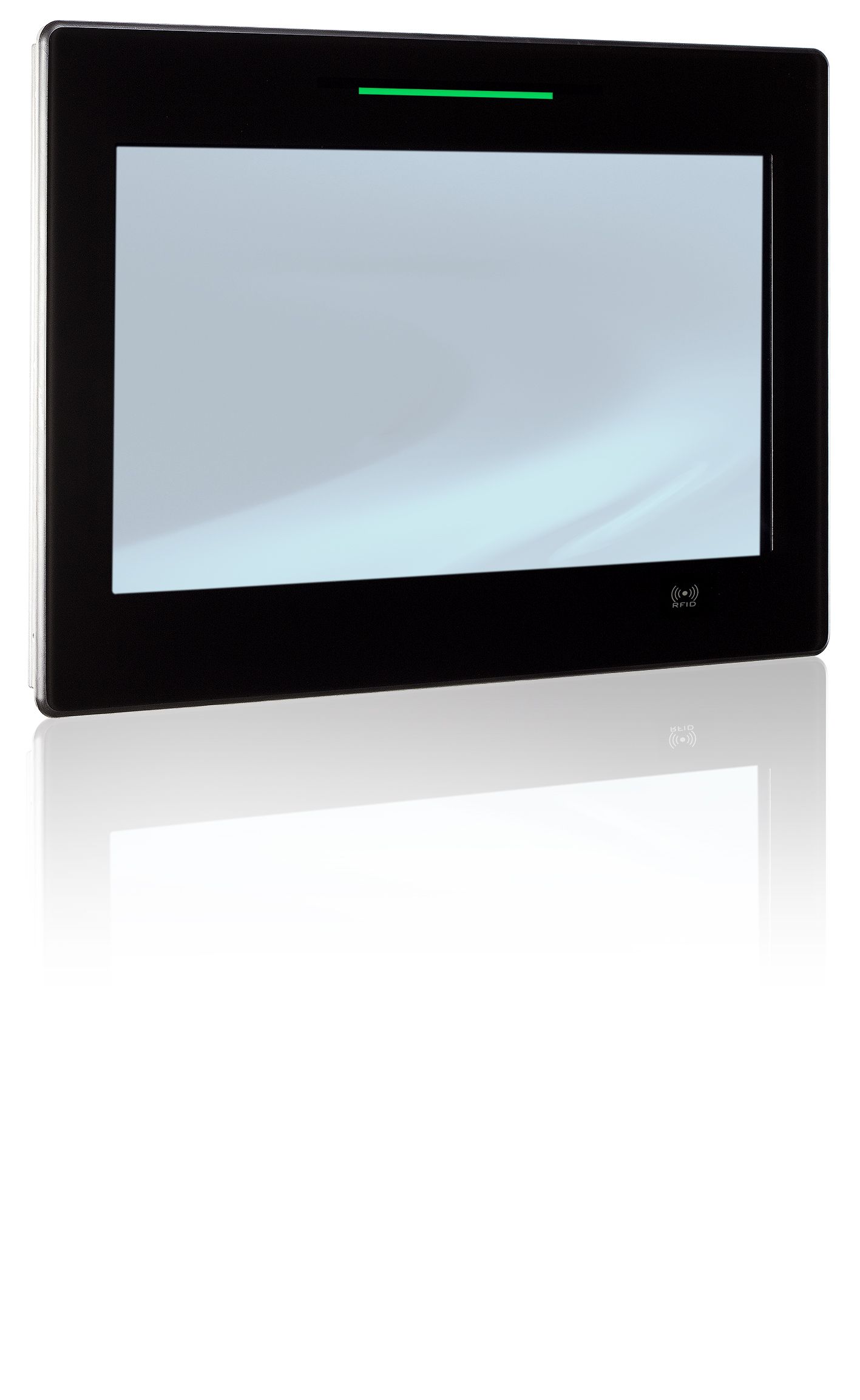

The innovative and modular FusionClient HMI series combines a frameless multi-touch interface with the performance and flexibility of the Kontron COM Express Computer-on-Module.
All FusionClient models feature an easy-clean, anti-glare and scratch-proof IP65 protected front glass. Based on the standard 16:9 wide format, FusionClient is available in four sizes (12.1”, 15.6”, 18:5” and 21.5”), which can be operated in both landscape and portrait format.
Intuitive multi-touch access to real-time actionable data makes the FusionClient the perfect fit for SCADA and Manufacturing Execution Systems (MES) monitoring and other control applications. An integrated LED alarm bar enables tracking and visual representation of machine and process status independently from monitor content and operation mode.
Due to a built-in WiFi antenna, the FusionClient can be mounted in any desired environment without having to provide an external antenna connection. An RFID reader can be mounted behind the glass and makes it possible to customize different authorization and security levels; thus providing in-depth access control.
Touch Screen | Projected capacitive touch (PCAP), multi-touch |
Mounting | Panel mount or VESA |
Processor | Intel® Atom™ E3815 or E3845 (others on request) |
RAM | Up to 8 GByte |
Interface | 2x Gbe (Intel I210 based), 2x USB 2.0, 1x USB 3.0, 1x DisplayPort, 1x RS-232 |
Internal Drives | mSATA and 2.5” SATA SSD, eMMC on selected COMe modules |
Power Supply | 24 VDC (± 25 %) |
Cooling | Fanless |
EMC | CE: EN 61000-6-2; EN 55022 Class B |
Certifications | CE, designed for UL |
Altitude | Operating: 10000 ft (3.000 m) / Storage: 15000 ft (4.572 m) |
Protection Class | IP65 front; IP20 rear |
Shock | Operating and Storage: 30 G 11 ms duration (half-sine) |
Vibration | Operating and Storage: 10-500 Hz: 2G/3 axis |
Operation Temperature | 0 °C to +50 °C |
Humidity | 5 % to 90 % non-condensing |
MTBF | > 50.000h (excluding backlight) |
Verified OS | Windows 7; Windows 10; Linux Embedded |
Datasheet FusionClient
[ fusionclient_20171002_datasheet.pdf, 703.31 KB, Oct.02.2017 ]
FusionClient User Guide Rev. 1.3
Rev 1.3, Date: May 15, 2018
[ fusionclient_user_manual_rev_1-3_2018-05-14.pdf, 5.52 MB, Apr.20.2023 ]
General Safety Instruction
[ general-safety-instructions.pdf, 560.72 KB, Jan.04.2021 ]
FusionClient WIN10 64 bit BSP R12
[ win10_64_bsp_fusion_client_r12.zip, 234.81 MB, Dec.06.2016 ]
FusionClient WIN7 64 bit BSP R12
[ win7_64_bsp_fusion_client_r12.zip, 299.9 MB, Dec.06.2016 ]
FusionClient Linux BSP R12
[ lin-bsp-falcon-r12-tar.xz, 160.83 MB, Apr.20.2023 ]
FusionClient12.1" Declaration of Conformity
[ ce-doc_hmi-fc12_keu_doc-20171208-1.pdf, 800.57 KB, Jul.03.2018 ]
FusionClient15.6" Declaration of Conformity
[ ce-doc_hmi-fc15_keu_doc-20171208-2.pdf, 808.42 KB, Jul.03.2018 ]
FusionClient18.5" Declaration of Conformity
[ ce-doc_hmi-fc18_keu_doc-20171208-3.pdf, 813.62 KB, Jul.03.2018 ]
FusionClient21.5" Declaration of Conformity
[ ce-doc_hmi-fc21_keu_doc-20171208-4.pdf, 825.92 KB, Jul.03.2018 ]
