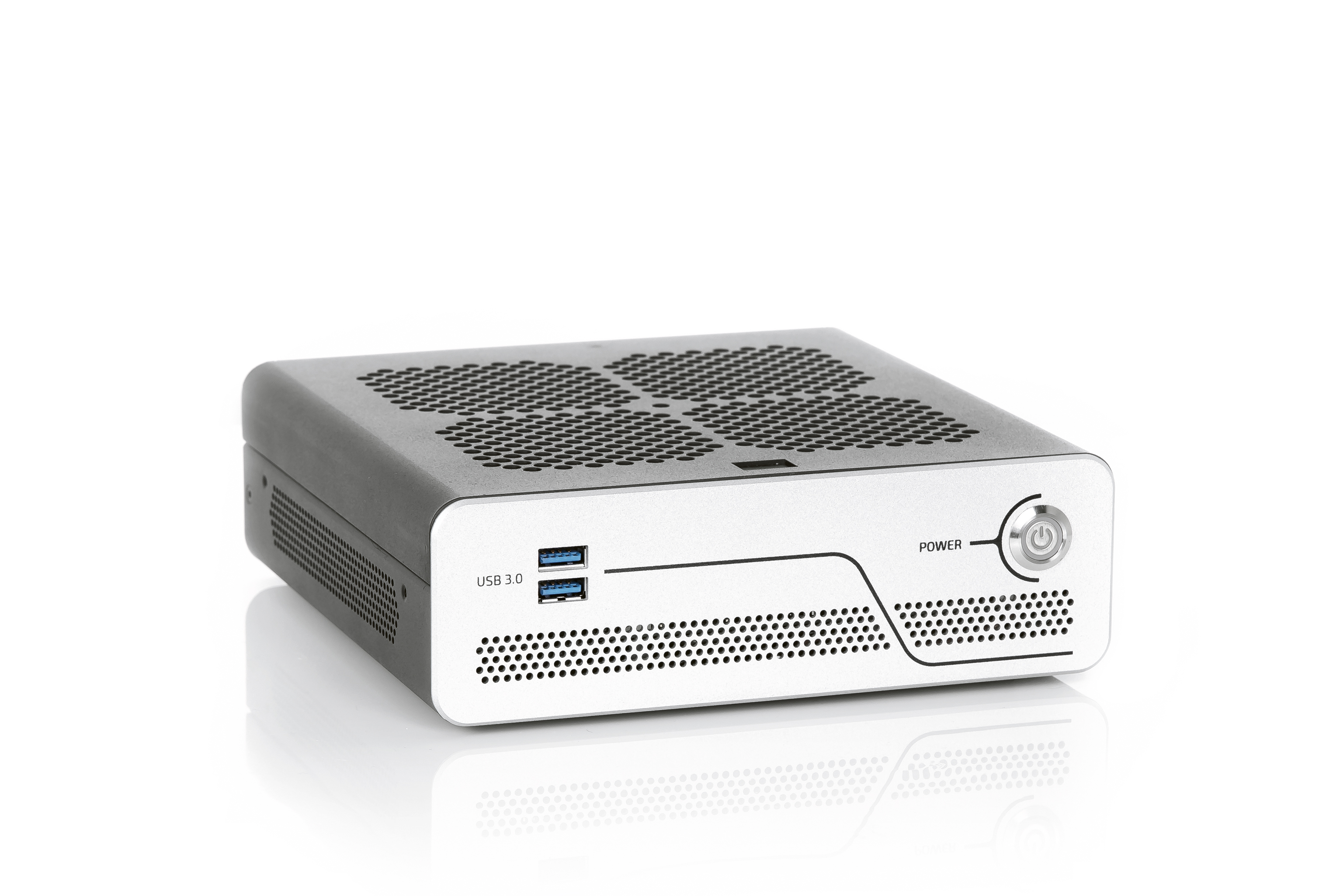

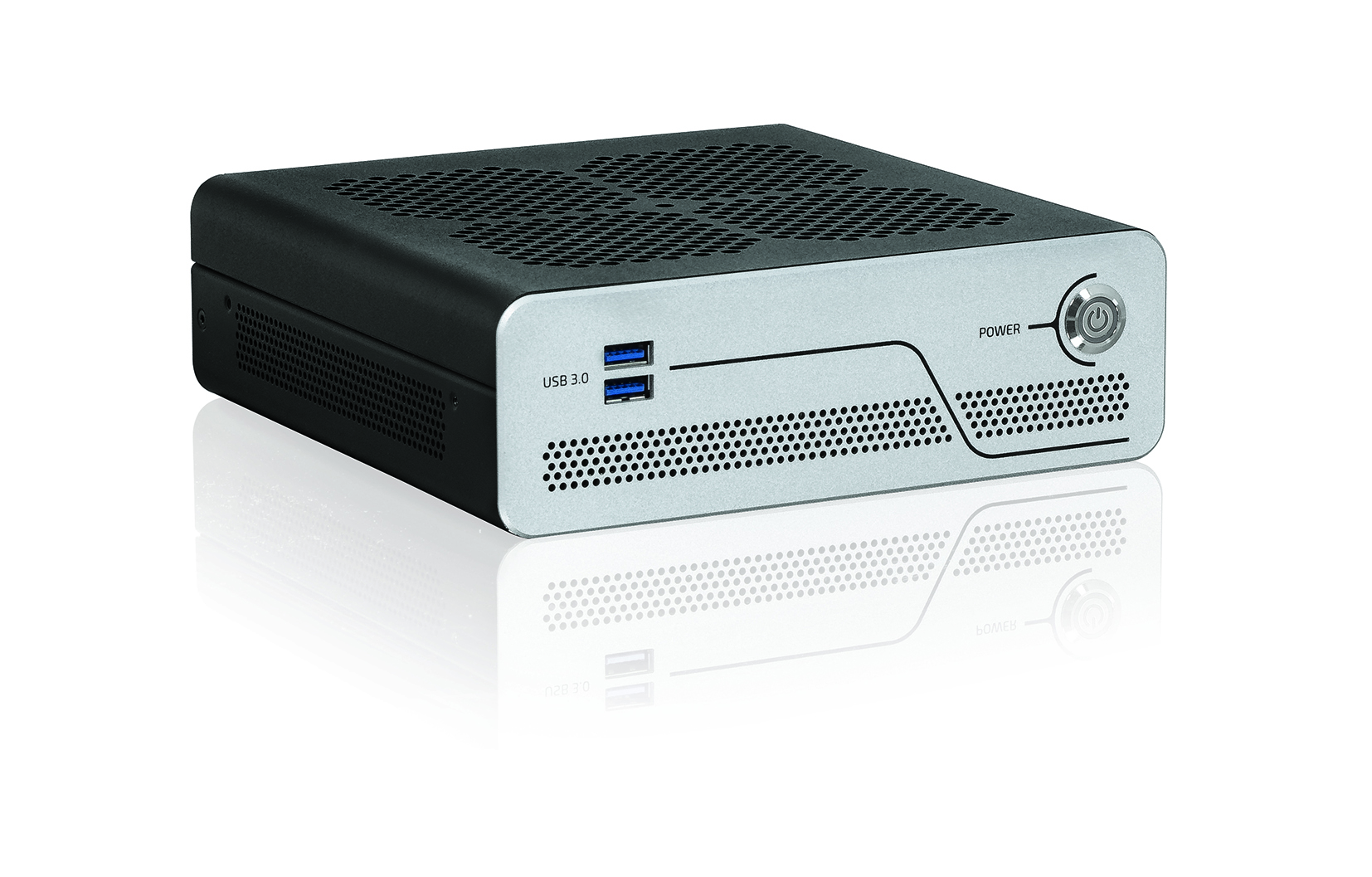

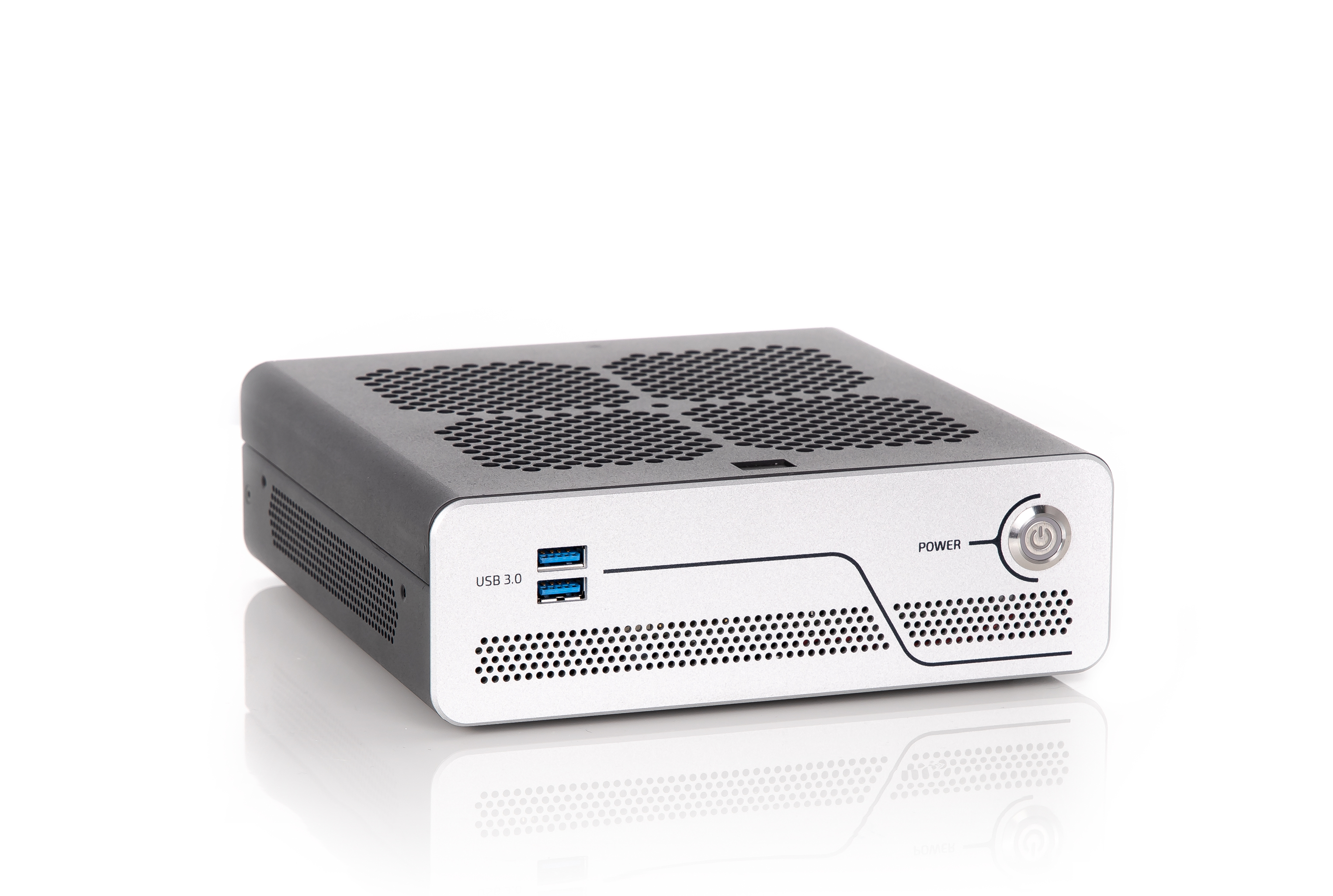

KBox B-201

For new designs please refer to

The KBox B-201 is characterized by high performance levels requiring little space. The Mini-ITX motherboard in the compact 170x170 mm form factor is equipped with two to four processor cores: optionally, users can choose between three 7th Gen Intel® Core™ processors (i3-7101E/i5-7500/i7-7700); on request, 6th Gen Intel® Core™ processors are available as well. KBox B-201’s performance further gets boosted by the Intel® Core™ Q170 Express chipset.

The KBox B-201’s housing is manufactured of continuously hot-dip zinc coated mild steel sheet (according to EN10215) and aluminium with the measurements 190x60x190mm. Five different mounting options guarantee highest flexibility. The KBox B-201 can be used horizontally or vertically as a desktop PC, or the box PC can be fixed directly behind a monitor using a VESA mounting. For mounting underneath a table, on the wall or in a control cabinet, special angle pieces are available, likewise offering horizontal or vertical operation.

The Box PC can be used in ambient temperatures ranging from 0 to 45 degrees Celsius. The KBox B-201’s typical application areas are image processing tasks, plant data collection, as well as manufacturing executive systems (MES) in the automation pyramid.
