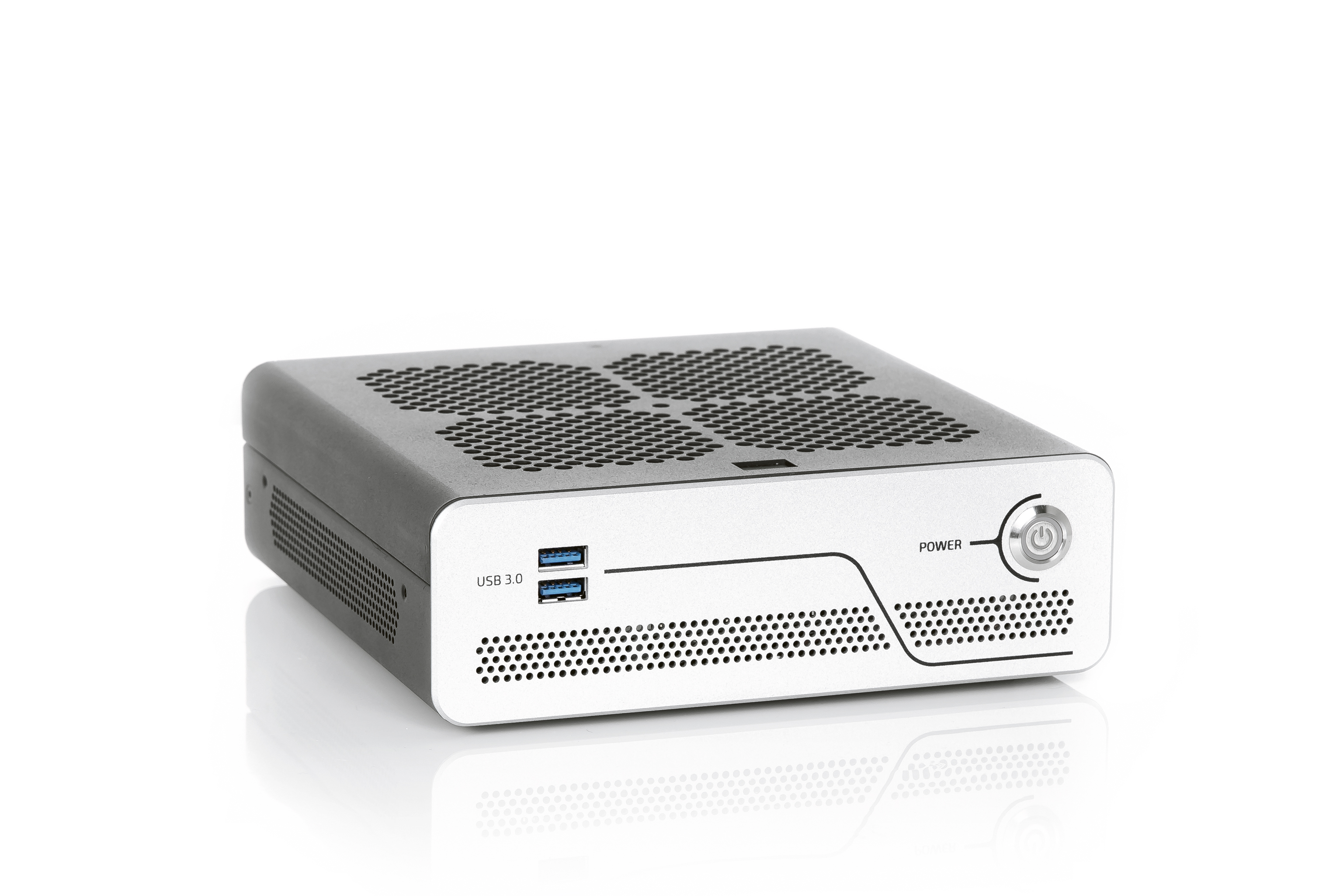

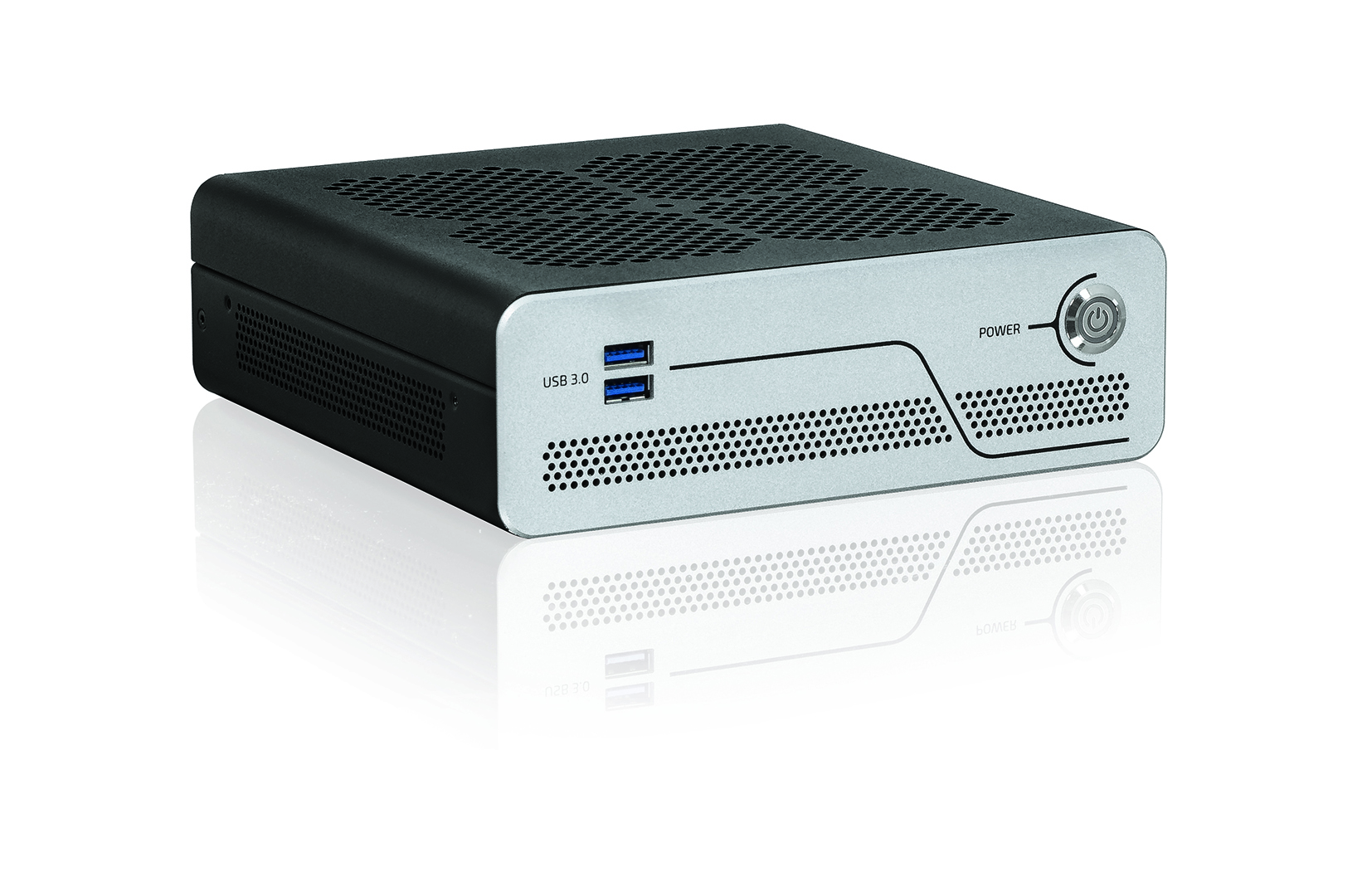

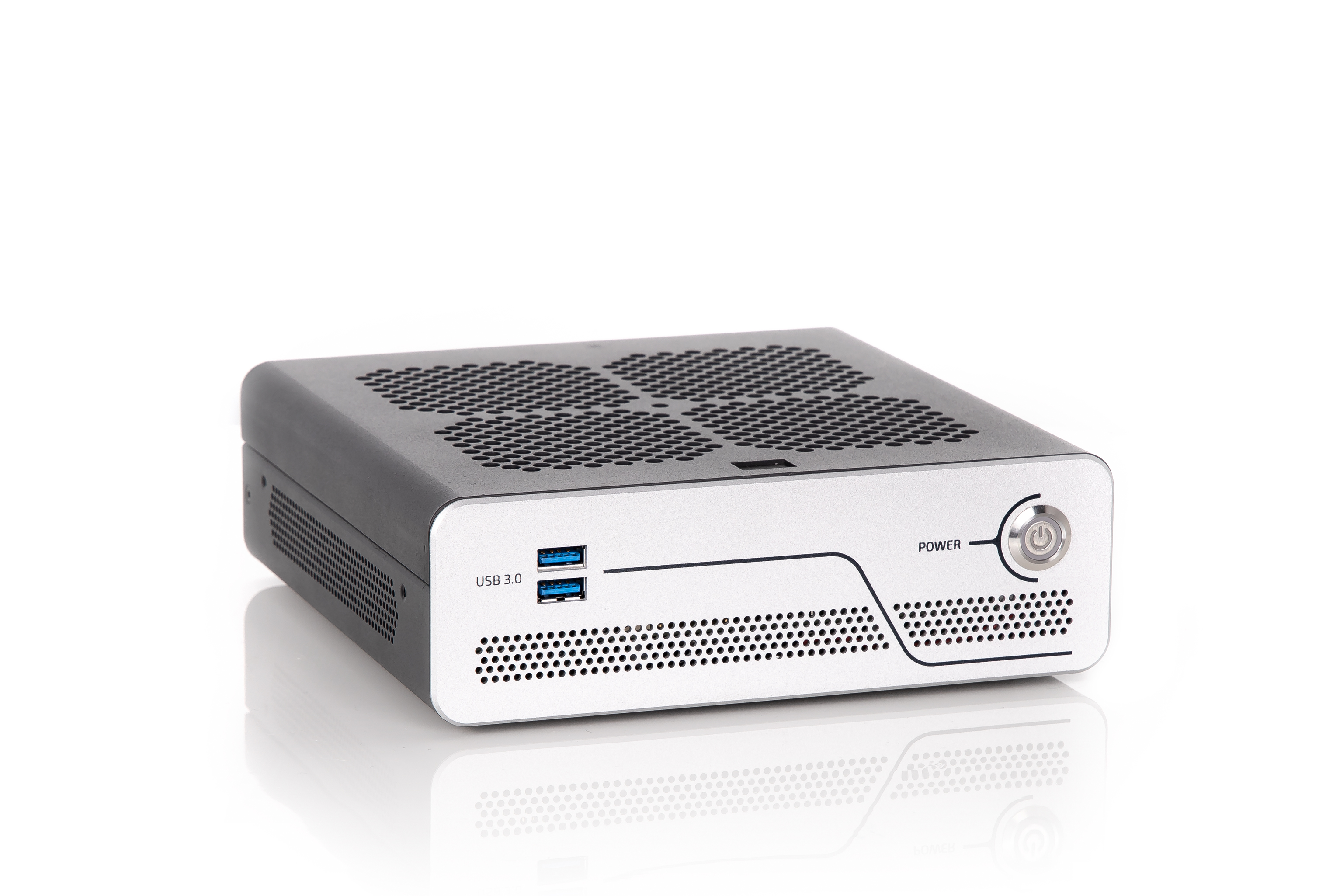

KBox B-201-CFL

High Performance Embedded Box PC with 8th/9th Generation Intel® Core™ processor in a compact design
Mouseover Zoom loading...
Specifications
  • High processing capability: 8th/9th Gen Intel® Core™ i7/i5/i3
  • Small form factor with mITX motherboard
  • Removable 2,5” SSD
  • Low noise design, max 34 dB(A)
  • Various mounting options: desktop, directly behind a monitor, wall, control cabinet etc., likewise horizontal or vertical operation
Download Datasheet

The KBox B-201-CFL features high performance in a compact housing and with low noise level (maximum 34 dB(A)). Thanks to its 8th/9th Gen Intel® Core™ i3/i5/i7 processors the KBox B-201-CFL is geared towards compute-intensive processes and large amounts of data.

This makes it particularly suitable for use in high-end image processing and plant data collection. In addition, the KBox is EN55032 class B-certified, complying with stricter radio interference limits than class A. This makes it ideal not only for use in industrial environments, but also for residential and commercial applications, or in their immediate vicinity. Along with its modern design, this makes the KBox B-201-CFL the ideal computer for architecture and graphics offices as well as music studios. The large number of interfaces, as well as the 2.5 inch SSD, and a fast M.2 SSD provide a wide range of applications. Optionally the KBox B-201-CFL can be equipped with a RAID system (2x M.2 SSD).

The core of the KBox B-201-CFL is a motherboard in the Mini-ITX form factor (170x170 mm), and a CPU with up to six processor cores: Depending on the requirements, three 8th Gen Intel® Core™ i3/i5/i7 processors can be selected. The KBox B-201-CFL is available in two versions. The full featured Smart Line with the Intel® Q370 chipset and the cost optimized value line which uses the H310 chipset.

Various mounting options guarantee maximum flexibility: Using a VESA mount, the KBox B-201-CFL can be operated directly behind a monitor, or as a desktop PC horizontally or vertically. Special brackets, which also enable horizontal and vertical operation, are available for mounting under the table, on the wall, or in the control cabinet.

Features

CPU 8th Gen Intel® Core™ i3/i5/i7
Intel® i3-8100 (4x 3.6 GHz)
Intel® i5-8500 (6x 3.0 GHz)
Intel® i7-8700 (6x 3.2 GHz)
Chipset Intel® H310 or Q370 Express Chipset
Security TPM V2.0, Kontron APPROTECT on request
BIOS AMI® Aptio 5.x
Capacity 8/16/32 GByte, non ECC SODIMM
Graphics Internal Intel® UHD 630 Graphics, DX12
USB 2x USB 3.0
Graphics 1x DVI-D, 1x DisplayPort V1.2 (value line)
1x DVI-D, 2x DisplayPort V1.2 (smart line)
Audio 1x Line in, 1x Line out
USB 3x USB 2.0, 2x USB 3.1 Gen 1 (value line)
4x USB 2.0, 2x USB 3.1 Gen1, 2x USB 3.1 Gen2 (smart line)
Ethernet 2x LAN (10/100/1000 MBit/s (WoL))
Ports 1x Serial (COM1, RS232)
Internal Drives 1x M.2 (2280, 2260, 2242)
Mini-PCI 1x miniPCIe half size and M.2 2260/2242 or
1x miniPCIe fullsize and M.2 2242 or
1x M.2 2280
Cooling Internal silent fan
Dimensions (H x W x D) 190 x 60 x 190 mm
Weight Approx. 2 kg
Mounting Desktop (horiz. & vertical), Wall mount (horiz. & vertical), VESA mount
Operating Temperature 0 °C to +45 °C (32 °F to 113 °F)
Temperature -20 °C to +80 °C (-4 °F to 176 °F)
Humidity rel. 93 % @ 40 °C, non-condensing
Vibration 5-500 Hz, 1G acc. IEC 60068-2-6
Shock half sine, 15 g, 11 ms acc. IEC 60068-2-27
Altitude 5000 m (16400 ft)
MTBF 62257 h at 40 °C
Input Voltage 90 to 264 VAC (external power supply)
24 VDC (on request)
Certifications CE, UL, BIS, CCC, EAC
Power Supply AC power supply (150W) included
Mounting Wall mounting kit
Vertical stand mounting kit
VESA mounting kit
