KTQ45 - Datasheet
1.05 MB | March 26, 2026
This product is legacy and no longer actively supported.

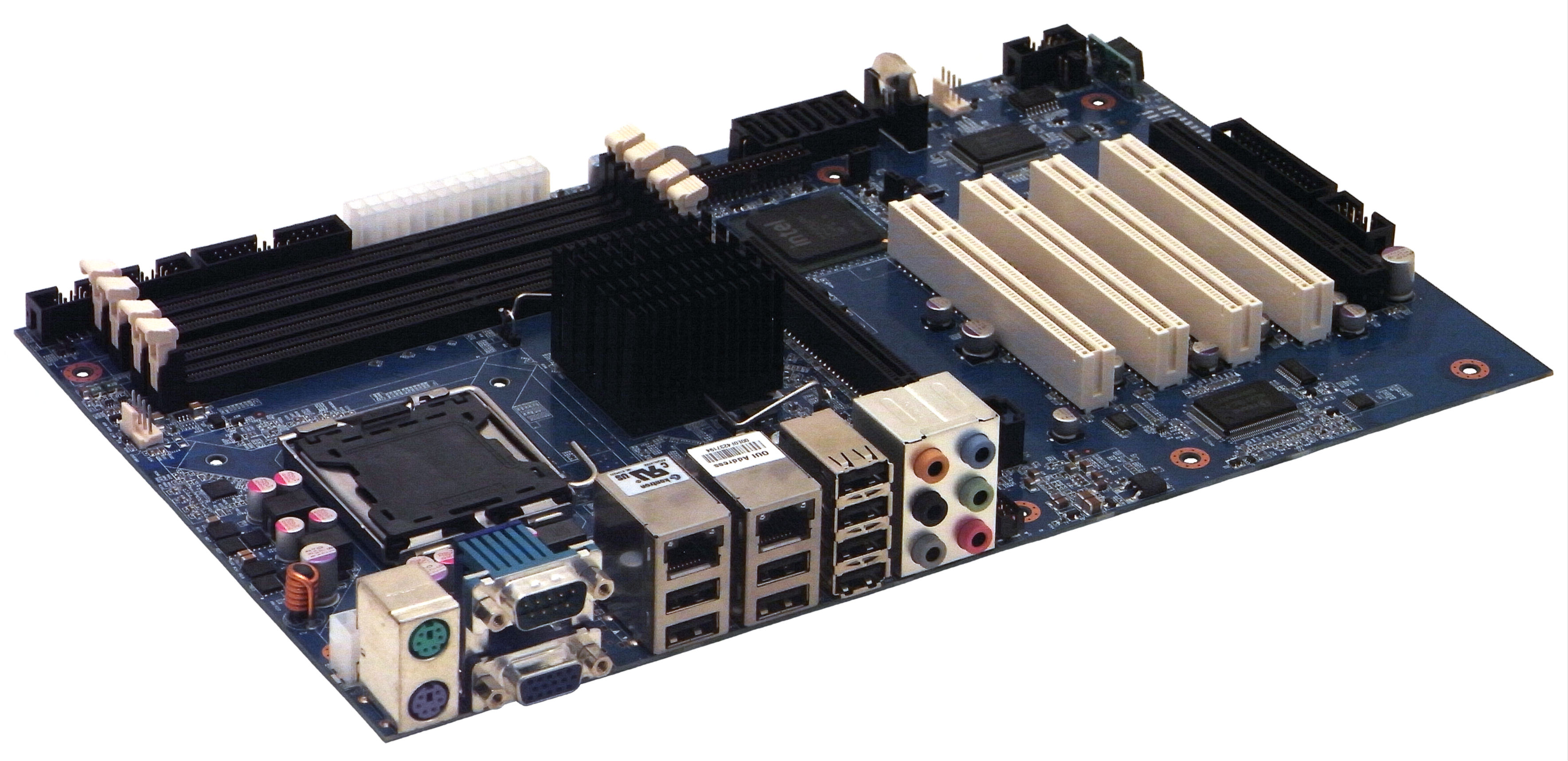

KTQ45/ATXE
Intel® Core™2 Duo & Intel® Core™2 Quad desktop processor support incl. E8400 and Q9650. Available in Q2 2009
- Intel® Core™2 Duo & Intel® Core™2 Quad desktop processor support incl. E8400 and Q9650
- Long term available embedded Flex motherboard
- Intel® Q45 + ICH10DO Embedded Chipset
- Intel® GMA 4500 graphics
- Flat panel support via ADD2-cards (DVI, LVDS & HDMI)
2 x Intel® Gigabit Ethernet, one with Intel® AMT 5.0 support Up to 8 GB DDR3, 4 pcs. DIMM 240 pin, 5x SATA150/SATA300 w. RAID 0/1/5/10, HD Audio, 12x USB 2.0, RS485
The Intel® Q45 Express Chipset, when combined with the Intel® Core™2 processor family, delivers innovative capabilities and energy-efficient performance for industrial platforms.
The new technologies featured in the Intel Q45 Express chipset are an Intel® Trusted Platform Module (Intel® TPM) and enhancements to Intel® Active Management Technology release 5.0 which include: Remote Alerts, secured access in Microsoft* NAP* environments, Access Monitor, Fast Call for Help, and Remote Scheduled Maintenance.
The new technologies featured in the Intel Q45 Express chipset are an Intel® Trusted Platform Module (Intel® TPM) and enhancements to Intel® Active Management Technology release 5.0 which include: Remote Alerts, secured access in Microsoft* NAP* environments, Access Monitor, Fast Call for Help, and Remote Scheduled Maintenance.
Technical data
| Form Factor | ATX |
|---|---|
| Dimensions (H x W x D) | 9,6" x 12" |
| CPU | Supports Intel® Celeron Processor 440, 2.00GHz Intel® Celeron Processor E1500, 2.20GHz, dual Core Intel® Pentium Processor E2160, 1.80GHz, dual Core Intel® Pentium Processor E5300, 2.60GHz, dual Core Intel® Core™ Duo Processor E4300, 1.80GHz, dual Core Intel® Core™ 2 Duo Processor E6400, 2.13GHz, dual Core Intel® Core™ 2 Duo Processor E7400, 2.80GHz, dual Core Intel® Core™ 2 Duo Processor E8400, 3.00GHz, dual Core Intel® Core™ 2 Quad Processor Q9400, 2.66GHz, quad Core |
| Chipset | Intel® Q45 ICH10DO Embedded Chipset |
| Main Memory | up to 8 GB DDR3 DIMM-240 (max. 4x 2GB) |
