High performance, industrial grade and scalable Rackmount System for challenging and noise sensitive environments with 8th/9th Gen Intel® Core™ i7/i5/i3 or Intel® Xeon®-E series
Mouseover Zoom loading...
  • Industrial grade for challenging environments: robust, reliable and sustainable
  • Maximum performance up to 8th/9th Gen Intel® Core i7/i5/i3 or Intel® Xeon® processors
  • Low noise level: <= 35dBA
  • Modular and flexible concept for easy customization
  • Long-term availability (5+ years)
  • Tool-free replacement of fans, filter mats, or hard disk drives in the removable tray
  • Microsoft Azure certified, TSN functionality optionally

Kontron’s KISS high performance rackmount systems are designed and tested for challenging environments, and are therefore the perfect fit for high temperature and mechanical stress conditions. Industrial grade design, in combination with high processing performance allows industrial applications requiring high performance and storage capabilities, e.g. high-end image processing and SCADA/MES applications.

The new KISS high performance rackmount systems are ideally suited even for complex computing tasks such as ‘Artificial Intelligence’ (AI) and machine learning based on processing and analytics of a huge amount of data. Efficient thermal concepts, maintenance-free and customizable designs, high performance computing and graphics power enable 24/7 operation and long-term deployment.

A high degree of customization is facilitated through features like removable drives and various expansion cards.


19" Rack Mounting 4U
Altitude 5000 m operating
Approvals CE,FCC,NRTL(UL 62368-1),CB(IEC 62368-1)
Available Extensions 7 slots (Full High): 5x PCIe, 2x PCI
Chipset C246
Common Features Flexible Customisation, low noise design
CPU Intel® Xeon® E-2100 /E-2200 series
8th/9th Gen Intel® Core™ i7/i5/i3 series
Dimensions (H x W x D) 177 x 482 x 472 mm (4U x 19” x 18.58”)
DRAM speed 2666 MHz
Drives 3x 5.25” SATA drive bays
1x 2.5”/3.5” SATA drive internal
1x M.2 2280 PCIe drive
RAID support
Humidity rel. 10 % to 93 % @40 °C, non-condensing
Main Memory 4x DIMM DDR4-2666 up to 64 GByte, ECC support optional
MTBF > 50.000 h
Operating System Windows 10 64 bit LTSC, Linux Ubuntu 18.04, others on request
Operation Temperature 0 °C to +50 °C continuous operation
Power Supply 100-240 V AC 600 W (80+), AC redundant 500 W , others on request

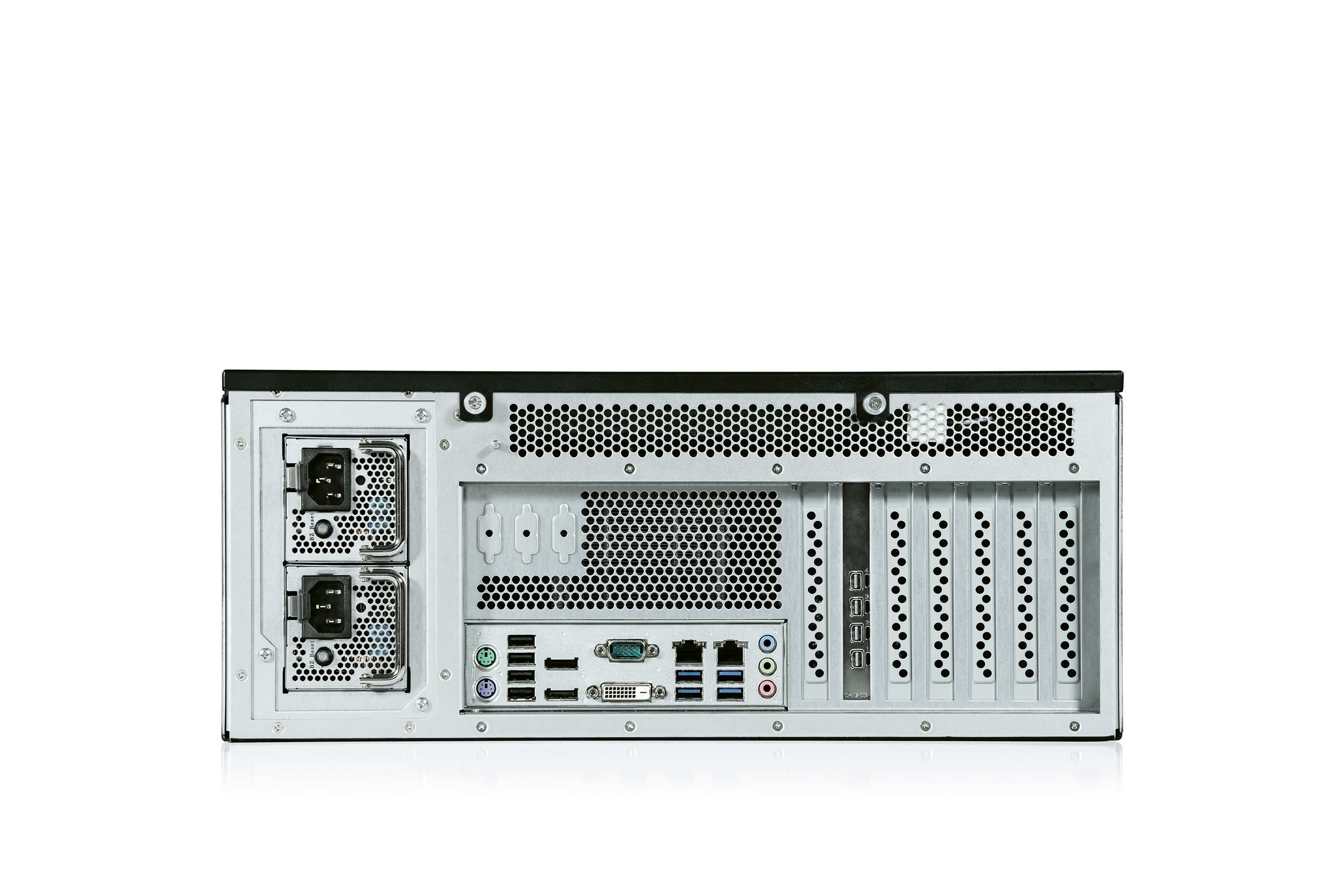

Rear I/O 2x GB LAN, 4x USB 3.1, 4x USB 2.0, 1x DVI-D, 2x DP
1x RS232, 1x Mouse, 1x Kbd, 1x Audio
Shock Operating: 15 G 11 ms duration
Non-operating: 30 G 11 ms duration
Vibration Operating: 10-150 Hz: 1G/3 axis
Non-operating: 10-150 Hz: 2G/3 axis
Weight Approx. 18 kg
RAID On board RAID, RAID by RAID controler card, HW RAID included in DA 235, DA 225



KISS 4U V3 CFL_20180918_datasheet
[ kiss-4u-v3-cfl_datasheet.pdf, 1.74 MB, Sep.04.2023 ]

[ d3646-satx_en_data-sheet_kontron.pdf, 1.05 MB, Jan.12.2024 ]


KISS 4U V3 CFL User Guide
Rev 1.3 Sept. 15. 2023
[ kiss-4u_v3_user-guide_rev-1-3_2023-09-15.pdf, 5.46 MB, Sep.15.2023 ]

General Safety Instruction
[ general-safety-instructions.pdf, 560.72 KB, Jan.04.2021 ]

Tech Spec Sheet

Tech Specs Rack Mount Servers
[ rackmount-kiss_tech-specs_en_kontron.pdf, 1.37 MB, Feb.09.2024 ]


Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]

More Downloads

All other downloads such as drivers, bios, drawings etc. are available on Kontron’s Customer Section
