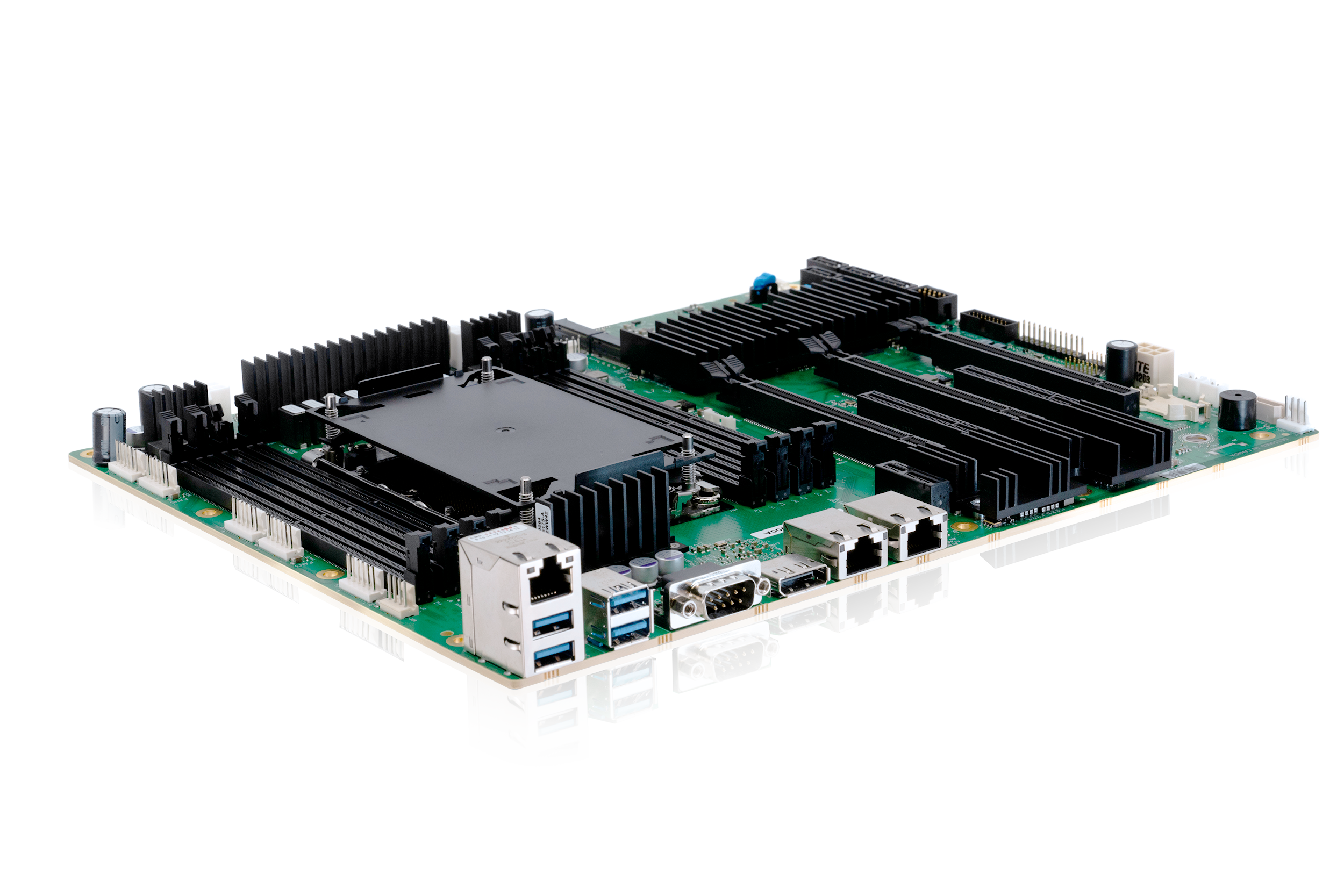

K9051-C ATX
Intel® 4th/5th Generation Xeon® Scalable Processor(SP) with Intel® C741 chipset
Mouseover Zoom loading...
Specifications
Coming soon- Up to 64 cores with maximum TDP 350W
- DDR5 memory up to 5600 MHz RDIMM, up to 768 GByte
- 5x PCIe Gen 5 expansion slots
- Dual LAN Intel® X710 10 GbE including teaming
SPECIFICATIONS
The server-class K9051 ATX motherboard is paired with the Intel® C741 chipset and supports Intel® 4th/5th Gen Intel® Xeon® scalable processors with up to 64 cores. With memory density up to 768 GByte and 5 PCIe Gen 5 expansion slots, today’s most demanding applications including AI, imaging, sequencing and industrial processing are possible. The K9051-C741 ATX supports board management and monitoring via ASPEED A2600 using OpenBMC. The motherboard is designed for continuous 24/7 operation for 10 years in demanding environments.
- Intel® 4th/5th Generation Xeon® scalable processor
- Intel® C741 Chipset
- 8x DDR5 5600 MT/s RDIMM Independent Channels
- 3x PCIe Gen5 x16 slots and 2 x PCIe Gen5 x8 slots
- 2x 10GBASE-T RJ45 Ethernet ports
Features
| Processor | Intel® 4th/5th Gen Xeon® SP up to 64 cores Socket LGA4677 |
| Chipset | Up to 350W TDP |
| Memory | Intel® C741 8x RDIMM Sockets DDR5-5600, max. 768 GBytes, 8x Independent Channels registered, ECC |
| Graphics | 1 DisplayPort 1.1a/1920x1200 32bpp@60Hz ASPEED AS2600 (via OpenBMC) |
| Audio CODEC | Tempo Semiconductor 92HD68D |
| Audio Interface | 8-Channel (HD), line-in, line-out, mic in, 3.5mm jack, 9- pin header |
| Ethernet 1/2 | Intel® X710 with dual 100/1000/10000 MBit/s PXE Support & Teaming |
| USB | 4x USB 3.1 Gen 1 (rear I/O, Type-A) 2x USB 3.1 Gen 1 (by header) |
| Serial Ports | 1x RS232 (rear I/O, DB9 connector) |
| SATA | 6x SATA III Interface (up to 6GBit/s), NCQ, AHCI, RAID 0/1/5/10 |
| M.2 PCIe/NVMe | 2x M.2 2280/2242 (Key-M, PCIe/NVMe Gen4 x4 SSD modules) |
| Connector | ATX (Multirail) 24- pin, 2x 8-pin, 1x 6-pin sockets |
| BIOS | AMI Aptio 5.x (UEFI) BIOS Modified and adapted by Kontron; Recovery BIOS, SM-BIOS (DMI), BIOS and CPU Microcode Update, Quick Boot, Logo Boot, Quiet Boot, Plug & Play, Automatic DRAM and PCIe Configuration, BIOS Support for S.M.A.R.T., Advanced Power Management, ACPI S3/S4, Wake on time from S5. HW No legacy OS support, no MBR support (UEFI only) |
| Watchdog | Onboard via BMC |
| Real Time Clock | Integrated |
| TPM | TPM V2.0 |
| FP Header | 1x Header for Reset button, HDD LED & External Speaker, Power button, Power LED |
| Fan | 6x 6-pin headers (support for 3/4-pin fans), controlled via BMC |
| Security | Secure Boot, Recovery BIOS, BIOS Password, Boot Sequence Control, Write Protection for Flash BIOS, Trusted Platform Module (TPM) |
| OS Support | Ubuntu 22.04 Windows Server 2022 |
| Dimensions. (LxW) | ATX: 9.6“x12“ (244x305 mm) |
| Operating Temperature | 0 °C - 55 °C (select SKUs and configurations) |
| EMC & Safety | FCC Part 15 Class A, ICES-003 Class A, cCSAus IEC62368-1 |
