ETX®-LX, Datasheet
1.21 MB | March 26, 2026
This product is legacy and no longer actively supported.
ETX®-LX2

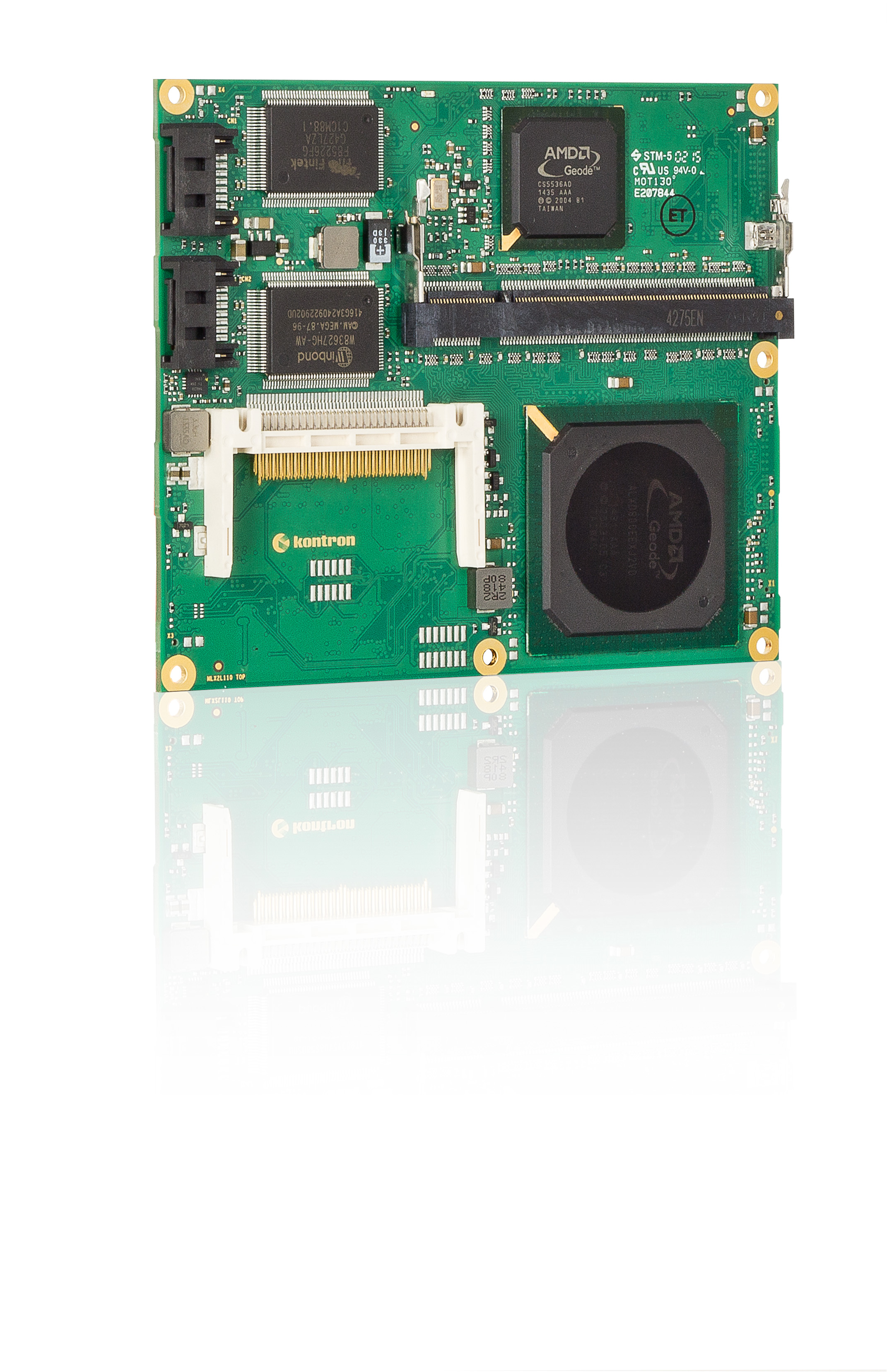

ETX®-LX2 with AMD® Geode™ LX800 with 500 MHz and CS5536.
- AMD Geode™ LX800 and CS5536
- Lowest power consumption
- DDR SODIMM for maximum memory throughput
- ETX® 3.0 – Long Term Support
- 2x SATA, 4x USB 2.0, Graphics, CompactFlash™, etc.
Lowest power consumption with ETX® 3.0 Long Term Support.
The ETX®-LX2 (Embedded Technology eXtended) is a highly integrated and fast Computer-on-Module with extreme low power consumption. It allows, due to the used AMD® LX800 processor, the usage of the board without active cooling in applications, where space limitations (the maximum height without heat sink is only 10 mm!) are major requirements.
On the small dimension of 95 x 114 mm ETX®-LX2 offers all standard interfaces such as sound, 2x SATA, 4x USB 2.0 ports, graphic. The AC'97 compatible sound chip is supported by most operating systems.
For networking purposes the ETX®-LX2 comes with a 10/100 MBit Ethernet controller. A CompactFlash™ socket is already mounted on the EXT®-LX2 and offers you a lot of possibilities. For further expansions two PATA ports with UDMA66 capabilities are available. They do not provide the PCI bus only, the ISA bus signals are also available. A lot of existing ISA boards can still be used via an ISA slot on a baseboard. This avoids expensive redesigns and well proven ISA cards to PCI versions for standard PC motherboards.
