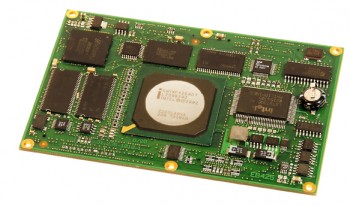

EB425

Intel XScale(r) IXP425 based Computer-On-Module. Powerful and versatile communication module.

Intel XScale(r) Communication Processor IXP425
Up to 256MB soldered SDRAM, up to 32MB soldered Flash
1MB SRAM with backup (optional)
Dual Fast Ethernet and UTOPIA
2 terminal interfaces (Rx/Tx)

Request product Download datasheet

Product Information

Enhanced performance and connectivity, minimal power consumption and heat dissipation. Based on the Intel XScale(r) IXP425, the EB425, designed as a comprehensive E²Brain ComputerOnModule, covers required system functionality of embedded communication and industrial control applications to the highest degree possible.

Comprehensive board support packages (BSP) are available for Linux and VxWorks.

More information can be found at the E²Brain homepage: www.e²brain.com

Technical support

Technical data

Ethernet	2x 100 Base-Tx Ethernet interface
Additional	Passive cooling, RTC, Watchdog, extended temperature range, CompactFlash interface, CAN, Security engine
CPU	Intel® XScale IXP425
CPU Clock	533 MHz
Cache	32 kByte instruction, 32 kByte data, 2 kByte mini-data
