This product is legacy and no longer actively supported.
New product

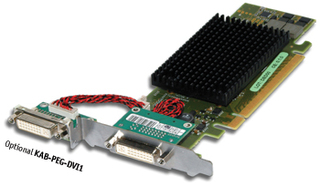

dFLAT-PEG-M72
High End PEG Card (PCI Express for Graphics) - Available now!
- GPU AMD / ATI Radeon Mobility HD2400 (M72)
- 128 MB and 256 MB GDDR3 Video Memory
- Native PCI Express Interface (scaleable x1, x2, x4, x8, x16)
- Extensive 3D and HD Video Hardware Acceleration
- Available Interfaces 2 x CRT, 2 x DVI, TV (opt.), LVDS (opt.)
Low-Profile Standard Graphics Card with highest Performance at lowest Power Consumption
The dFLAT-PEG-M72 is a high end PCI Express Graphics (PEG) Card built around the AMD / ATI Radeon Mobility HD2400 mobile GPU.
Beneath all standard display interfaces like CRT, DVI and TV-Out it also drives TFT panels through dual-channel 24-bit color depth LVDS interface directly. With its two independent display pipes it can be configured for almost any output configuration.
The Unified Video Decoder (UVD), accelerating H.264, VC-1 and Blu-Ray motion video and the powerful 3D engine dramatically off-load the CPU. DirectX10, OpenGL2.0, and Shader Model 4.0 3D-Hardware acceleration are supported.
On the output side the unique Avivo Display System enables for highest quality display support at resolutions up to QXGA (2048 x 1536) incl. HDTV (1920 x 1080) and all Wide-Screen ratios.
Typical Applications: e.g. industrial motherboards for gaming systems with 2D/3D-HW-acceleration and HD Video hardware playback or multimedia devices.
HDMI variants coming soon!
Technical data
| Power Supply | +3.3 V DC +/- 5% +12.0 V DC +/- 5%, fully PCI Express powered |
|---|---|
| Power Consumption | Power Consumption: typ. 8 W, max. 15 W |
| Temperature | Operating*: 0° C to 60° C Storage: -40° C to 85° C * The maximum operating temperature is the maximum measurable temperature on any spot on the modules surface. It is the user’s responsibility to keep this temperature within the above specification. |
| Controller | GPU AMD / ATI Radeon Mobility HD2400 (M72) |
| Resolution | CRT: 2 x ports, up to QXGA (2048 x 1536) each LCD: 1 x single link DVI/HDMI, (1920 x 1200) incl. HDTV (1920 x 1080) and all Wide-Screen ratios. 1 x dual link LVDS, 2048 x 1536 (opt.) |
