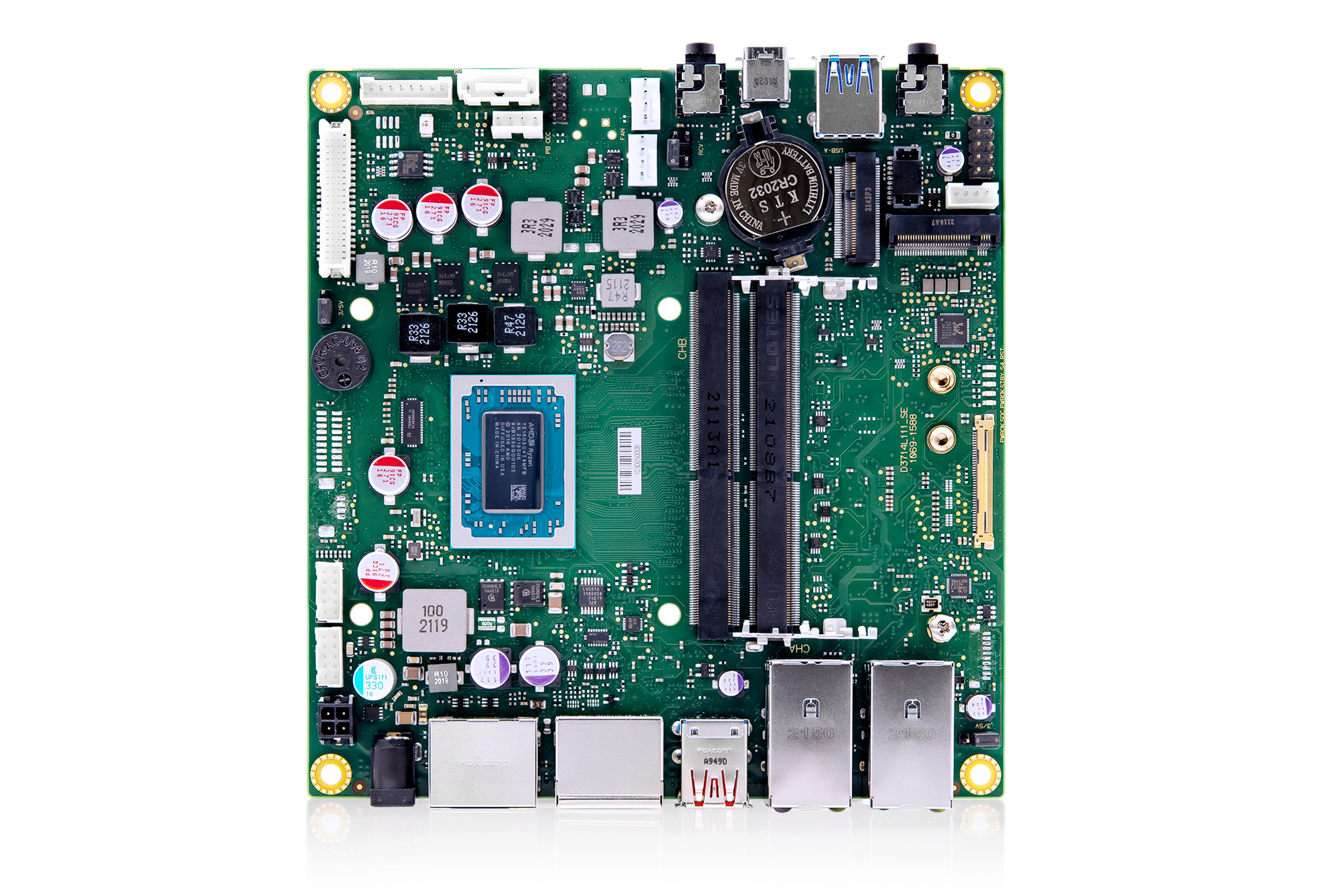

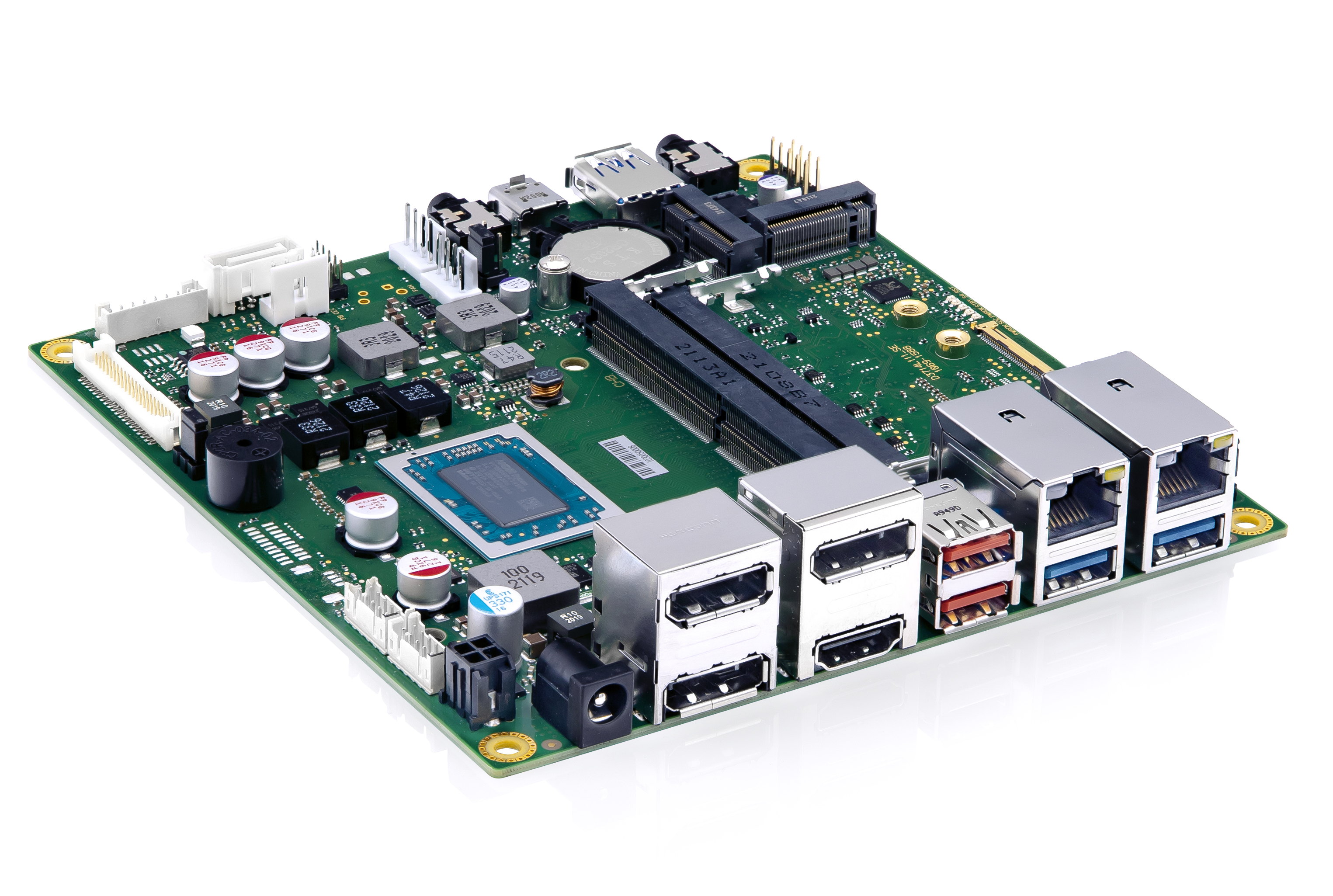

D3724-R mSTX

Industrial Motherboard supporting the AMD Ryzen™ Embedded R2000 Series SOC
Specifications
Coming soon
  • AMD Radeon™ Vega Graphics (within SoC)

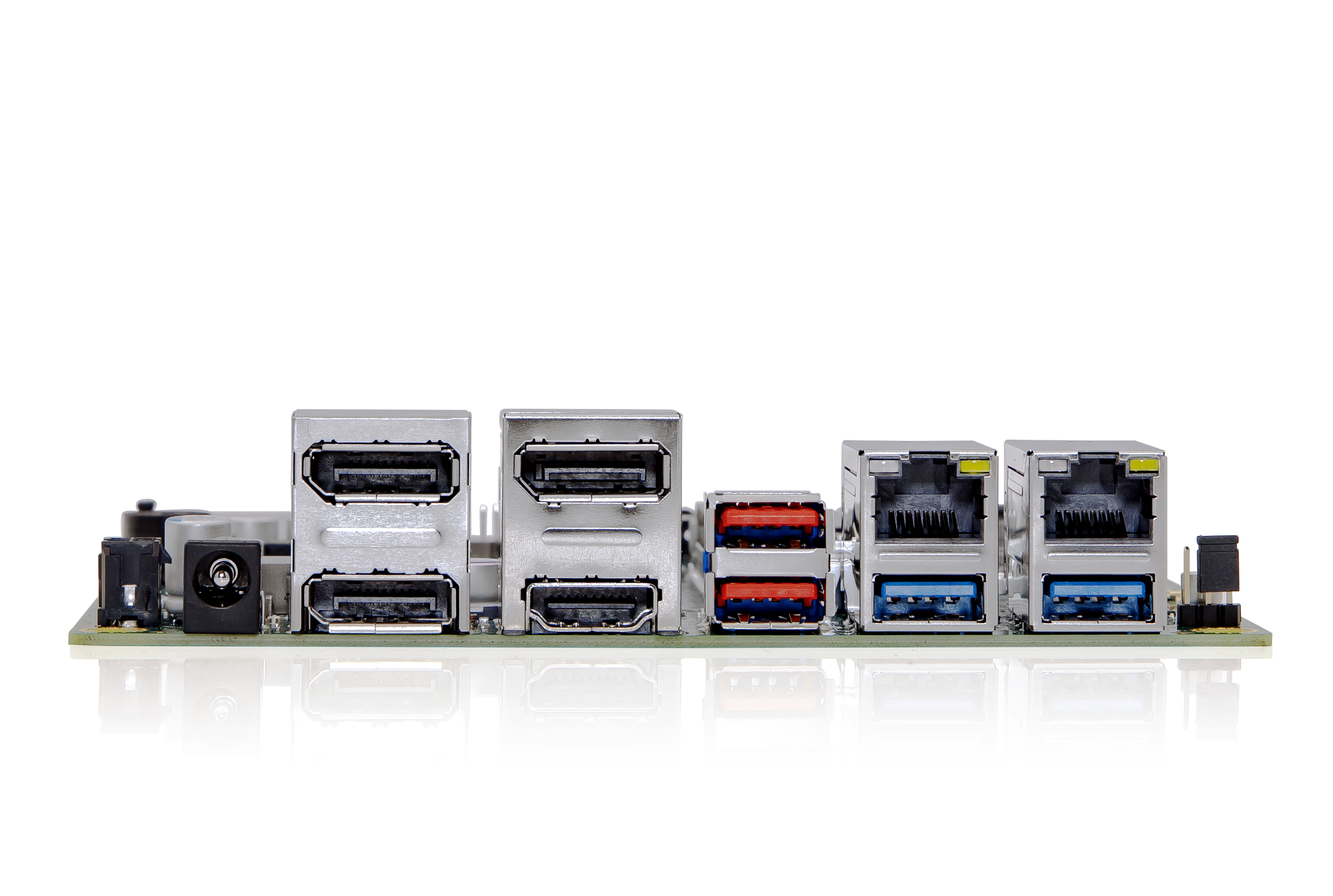

  • Up to 3x DisplayPort V1.4 plus HDMI V2.0b
  • Dual Channel LVDS (24 Bit) and eDP V1.3 (4 k) onboard
  • Designed for Fanless Operation
  • MS Windows 11 Support
Download Datasheet Download Product Folder

The industrial motherboard D3724-R mSTX supports the AMD Ryzen™ Embedded R2000 series processors with integrated AMD Radeon™ Vega Graphics and can be used in applications with high graphical requirements like casino gaming, medical displays, thin clients and ultra small industrial PCs. It is equipped with up to three DisplayPorts, one HDMI Port, one embedded DisplayPort and one Dual-Channel LVDS (24bit) and powers up to four independent displays in 4K resolution. Depending on the requirements for (graphical) performance, there are three motherboard versions available.


Benefits of Kontron motherboards:

  • Highest quality through German engineering and production
  • Strict lifecycle management and reliable product maintenance
  • Comprehensive feature and tool set
  • Excellent technical support
  • Beneficial total-cost-of-ownership

Features

Processor AMD Embedded R2312 SoC
AMD Embedded R2314 SoC
AMD Embedded R2514 SoC
Chipset SoC
Main Memory 2x DDR4 2400/2666 SDRAM up to 32 Gbyte
Graphics Controller Integrated AMD Radeon™ Vega Graphics
Display Up to 3x DPP V1.4 incl. DP++ support
1x HDMI V2.0b
1x embedded DP (eDP V1.4; supporting 4K resolutions; shared with DPP1)
1x Dual-Channel 24bit LVDS (shared with DPP3)

Following max. display combinations are supported:
D3724-R2/-R3: 1x DPP + HDMI + LVDS + eDP; 2x DPP + HDMI + LVDS; 2x DPP + HDMI + eDP; 3x DPP + HDMI

D3724-R1: HDMI + LVDS + eDP; 1x DPP + HDMI + LVDS; 1x DPP + HDMI + eDP; 2x DPP + HDMI
Audio Controller Realtek ALC256
Audio High Definition Stereo Audio Codec
Ethernet Intel® i210 & Realtek RTL8111H with 10/100/1000 MBit/s
USB 2x USB 2.0 (by header)
2x USB 3.2 Gen1 (rear)
2x USB 3.2 Gen2 (rear)
1x USB 3.2 Gen1 (front)
1x USB 3.2 Gen1 (Type C, front)
Serial 1x RS232 (by header); 1x RS232/422/485 (by header)
Available I/Os 1x 8-Bit GPIO (by header)
SATA 1x Serial ATA III 600 Interface (up to 6GBit/s), NCQ, AHCI
Expansion 1x M.2 PCIe x4 (Key-M: 2230/2242/2280)
1x M.2 WLAN/Bluetooth (Key-E: 2230, supports PCIe x1/Gen3 + USB 2.0)
Power connector External/Internal DC-In (DC Jack/4-Pin Micro-Fit)
Input Voltage DC Input 12 V or 19-28 V, max. 5 A/65 W (external DC-In),
max. 10 A/100 W (internal DC-In)
BIOS AMI Aptio 5.x (UEFI) BIOS
Watchdog 3 level HW Watchdog (BIOS POST/BIOS Boot/OS)
Real Time Clock Integrated
Cooling 2x PWM fan (CPU/System)
Operating System MS Windows 10 / MS Windows 11
Linux-64
Mechanical Dimensions Mini-STX: 5.5“ x 5.8“ (140 x 148 mm)
Operating Temperature -10 °C – 60 °C
Humidity 5%-85%
Certifications CE Class-B, UKCA
cTÜVus acc. IEC62368-1
