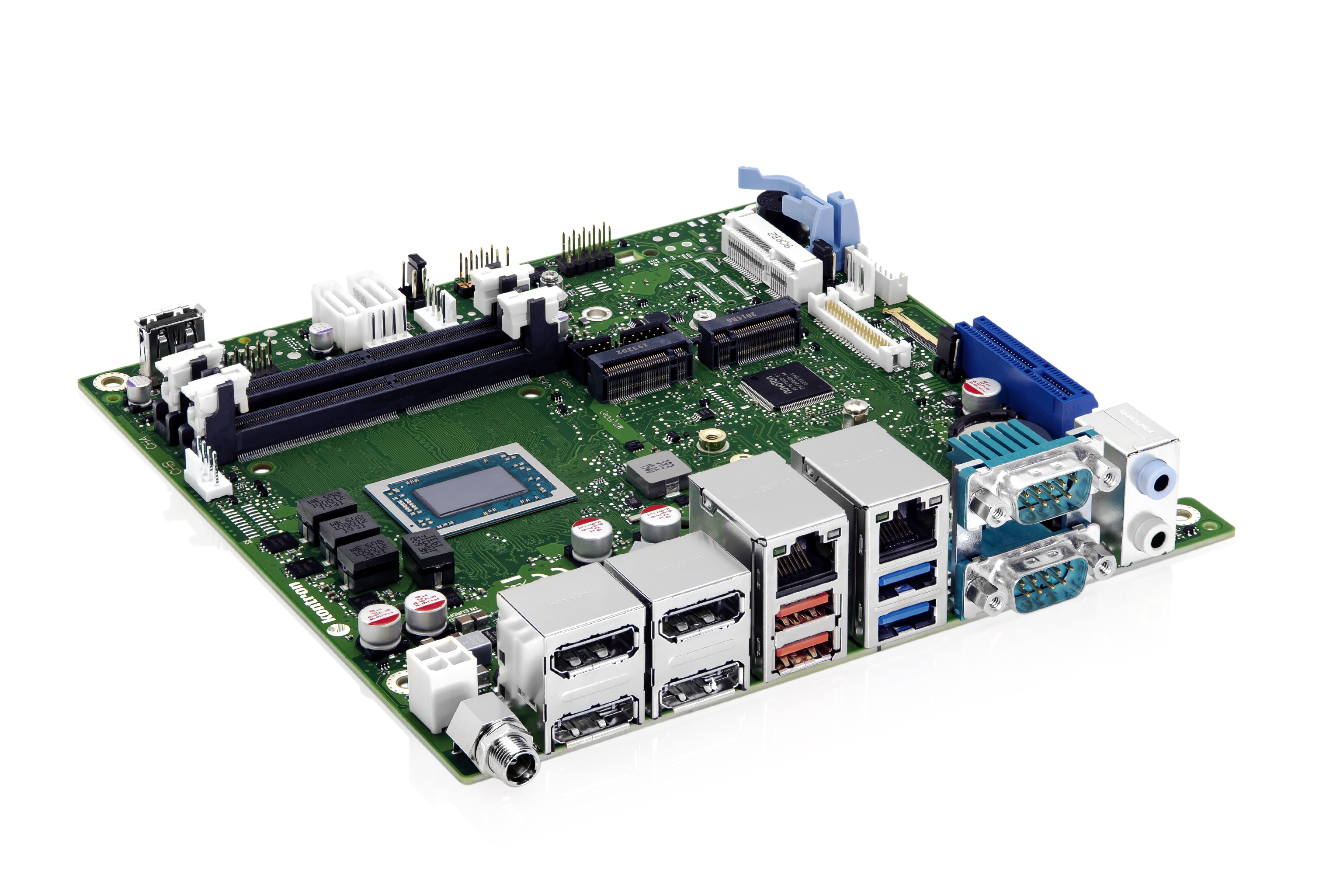

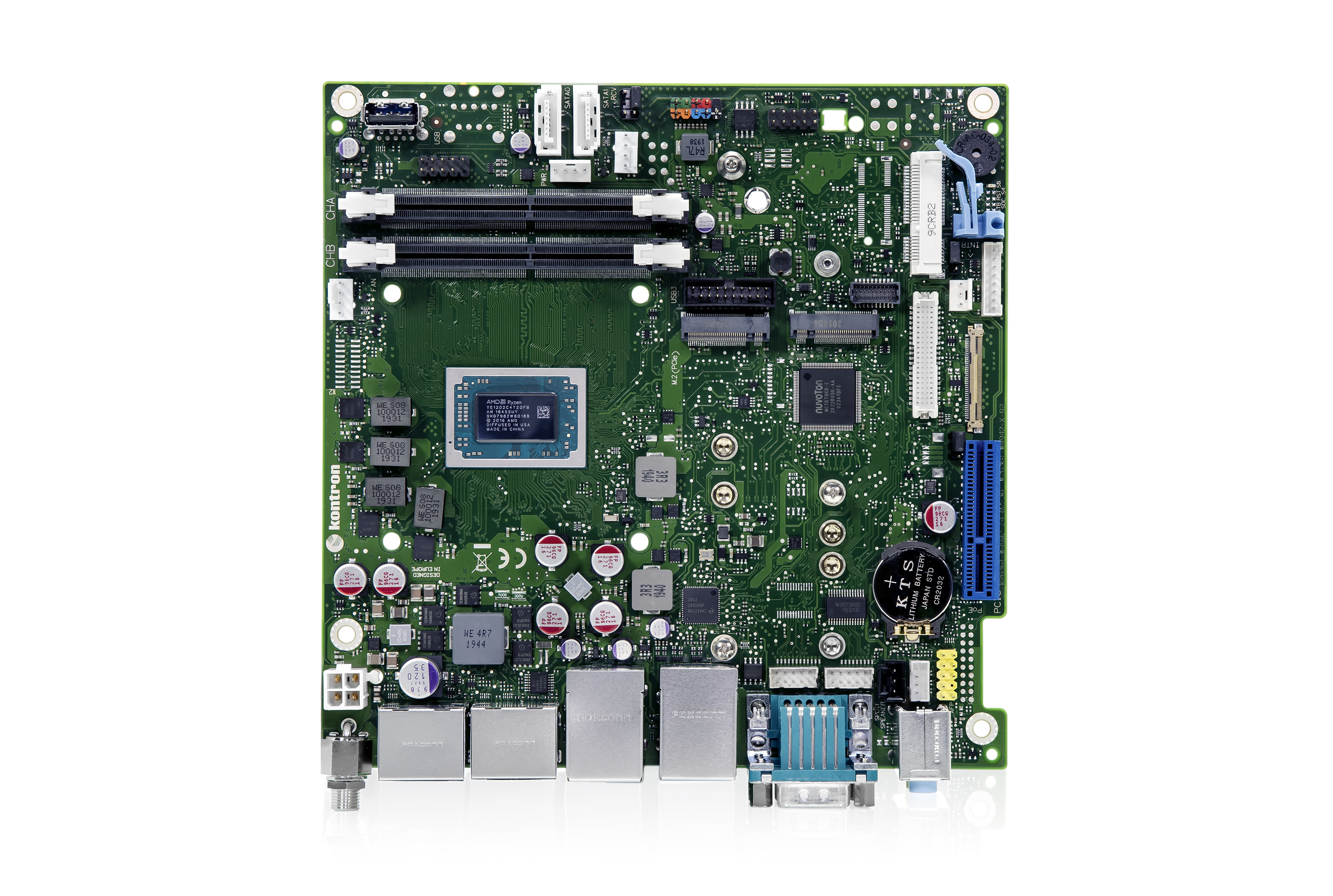

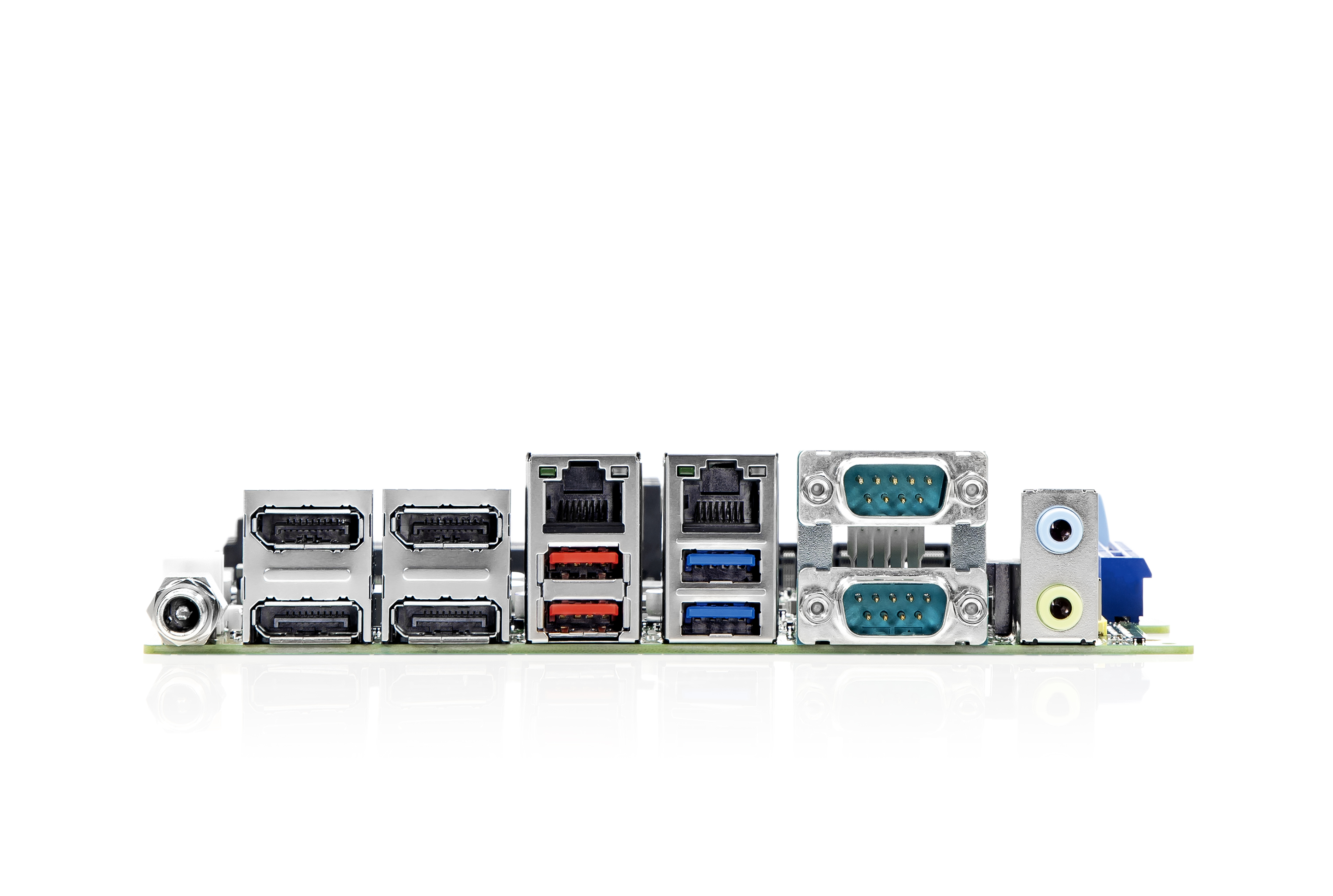

D3723-R mITX New

Industrial Motherboard supporting the AMD Embedded Ryzen™ R2000 Series SoC Platform for AMD FP5 SoC Processor
Mouseover Zoom loading...
Specifications
  • AMD Radeon™ Vega Graphics (within SoC)
  • Up to 4x DisplayPort V1.4
  • Dual Channel LVDS (24 Bit) and eDP V1.3 (4 k) onboard
  • M.2 Key-B & M.2 Key M & Mini-PCI Express® supported
  • Windows 11 support
Download Datasheet

The industrial motherboard D3723-R mITX supports the AMD Ryzen™ Embedded R2000 processor series with integrated AMD Radeon™ Vega Graphics and can be used in applications with high graphical requirements like casino gaming, medical displays, thin clients and industrial PCs. It is equipped with up to four DisplayPorts, one embedded Display-Port and one Dual-Channel LVDS (24bit) and powers up to four independent displays in 4K resolution.

Are you looking for a mini-STX motherboard that supports the same AMD Ryzen™ Embedded R2000 processors? Discover the D3724-R mSTX sibling now!

Benefits of Kontron motherboards:

  • Highest quality through German engineering and production
  • Strict lifecycle management and reliable product maintenance
  • Comprehensive feature and tool set
  • Excellent technical support
  • Beneficial total-cost-of-ownership

Features

Processor AMD Embedded R2312 SoC
AMD Embedded R2314 SoC
AMD Embedded R2514 SoC
AMD Embedded R2544 SoC
Chipset SoC
Main Memory 2c DDR4 2400/2666/3200 up to 32 Gbyte; ECC Option
Graphics Controller Integrated AMD Radeon™ Vega Graphics
Display up to 4x DP V1.4
1x eDP @ 4 lanes
1x LVDS
Audio Controller Realtek ALC256
Audio Stereo
Ethernet Intel® i210LM with 10/100/1000 MBit/s
USB 2x USB 2.0 (by header)
2x USB 3.2 Gen1
2x USB 3.2 Gen1 (by header)
2x USB 3.2 Gen2
Serial 1x RS232/422/485; 3x RS232 (2x by header)
Available I/Os GPIO (by header)
SATA 2x Serial ATA III 600 Interface (up to 6GBit/s), NCQ, AHCI
Expansion 1 x M.2 Key-M (PCIe x4)
R1: M.2 Key-M socket shared with PCIe x4 slot (M.2 or PCIe slot usable; BIOS Setup option)
1 x M.2 Key-B (SATA or PCIe)
Power connector External/Internal DC-In 8-34 V (DC Jack/4-Pin)
Input Voltage DC Input 8 V-34 V (max. 10 A /max. 125 W)
BIOS AMI Aptio 5.x (UEFI) BIOS
Watchdog 2 level HW Watchdog (BIOS Boot/OS)
Real Time Clock Integrated
Cooling 2x PWM fan (CPU/System)
Operating System MS Windows 11
MS Windows 10
Linux-64
Mechanical Dimensions Mini-ITX: 6.7“ x 6.7“ (170 x 170 mm)
Operating Temperature -10 °C – 60 °C
Humidity 5%-85%
Certifications CE Class-B, UKCA, cTÜVus acc. IEC62368-1

Downloads

Driver Updates

BIOS Updates

Datasheets

Datasheet D3723-R mITX
[ d3723-r_mitx_datasheet.pdf, 2.17 MB, Apr.20.2023 ]

Manuals

Kontron FTP Server

General Safety Instruction
[ general-safety-instructions.pdf, 560.72 KB, Jan.04.2021 ]

Tech Spec Sheet

Motherboard and SMARTCASE™ Tech Specs
[ productoverview_motherboards.pdf, 10.99 MB, Nov.27.2023 ]

Services

Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]

Accessories

SMARTCASE™ S711
S26361-F5000-J008
SMARTCASE™ S711 IPC mini-ITX Chassis incl. illuminated power button, 2x Front USB 3.1, HDD cage w. 4 pin PWM fan, SATA and drive power cable, stands (horizon./vert.), wall mount, Chassis intrusion, non branded!

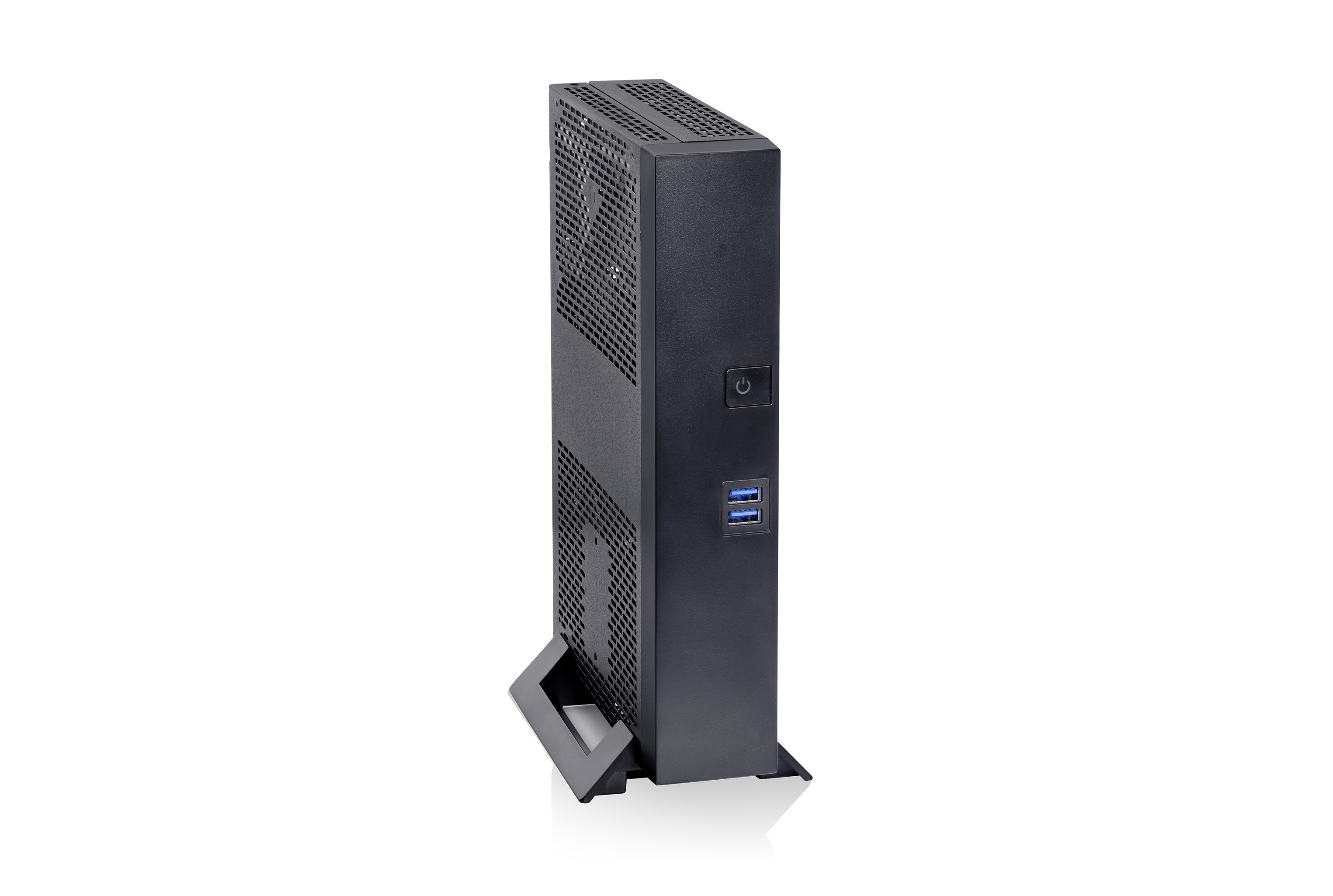

SMARTCASE™ S730
SMARTCASE™ S730 Chassis Kit Solution for D3713-V/R, D3723-R & K3931-N mITX more

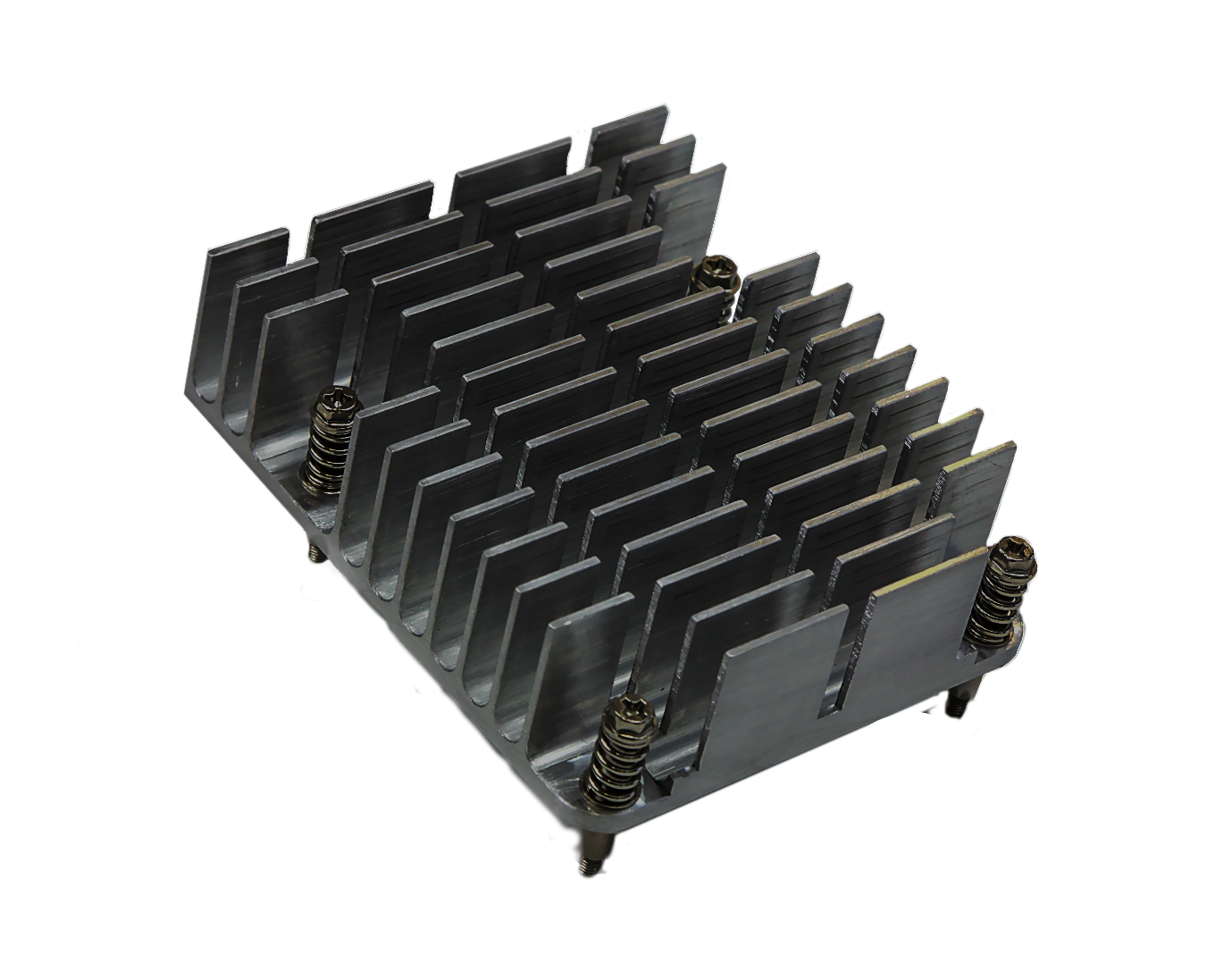

Passive Cooler AMD FP5 15W
S26361-F5000-C019
Passive Cooler AMD FP5 15W Passive cooler for Mini-ITX Ryzen Motherboard + Backplate for FP5

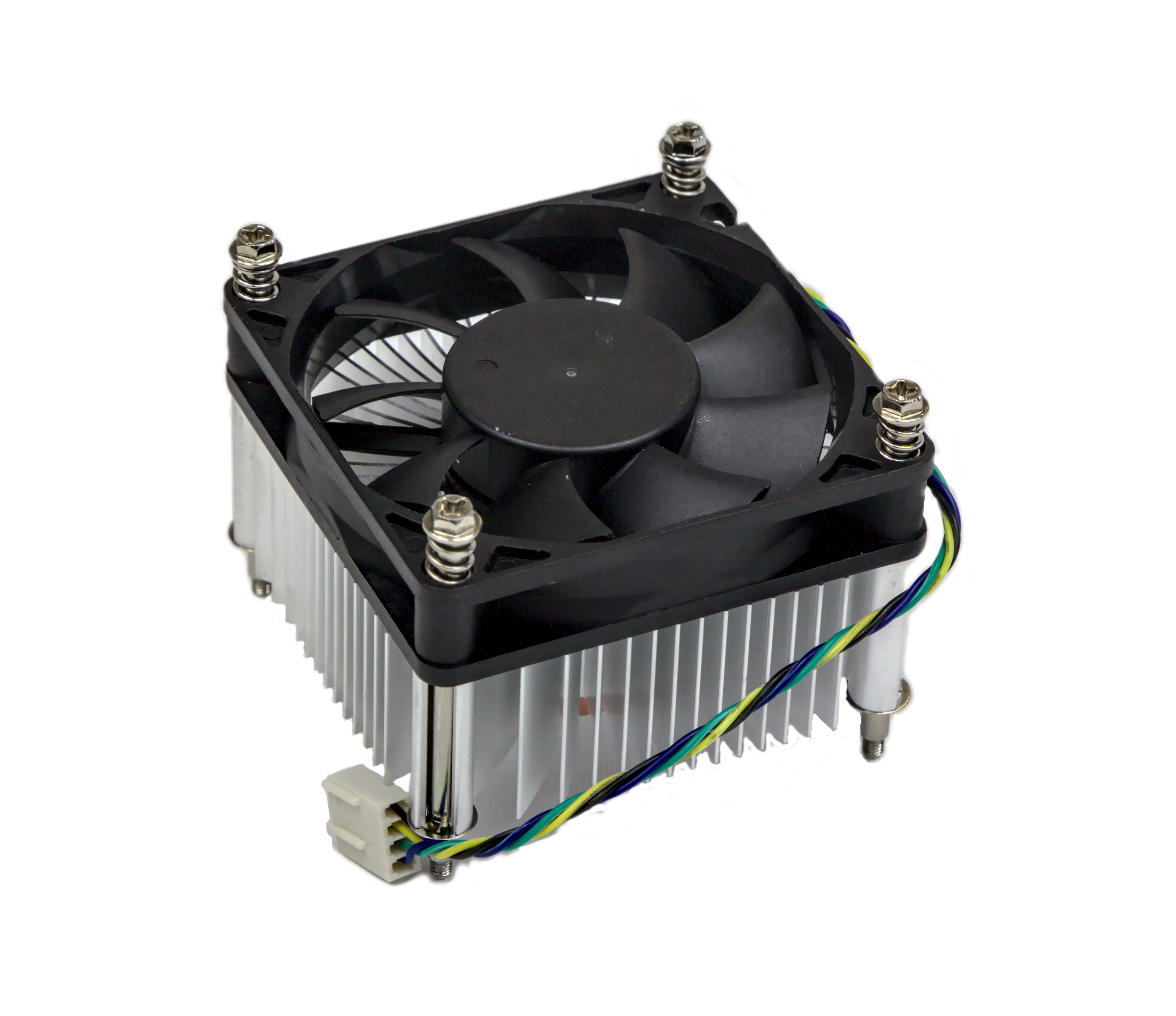

Active Cooler AMD FP5 54W
S26361-F5000-C020
Active Cooler AMD FP5 54W Active cooler for Mini-ITX Ryzen Motherboard + Backplate for FP5
Active Cooler AMD FP5 35W
S26361-F5000-C021
Active Cooler AMD FP5 35W Low height 35W active cooler for Mini-ITX Ryzen Motherboard + Backplate for FP5, suitable for SMARTCASE™ S711 chassis!
Internal PSU for chassis Kit
S26361-F5000-P004
Internal PSU for chassis Kit AC Adapter, 12V / 5.4A, 65W, low profile extension card format
AC Adapter
S26361-F5000-P006
AC Adapter 19V / 3.42A, 65W - w/o power cord
AC Adapter 20 V/120 W
S26361-F5000-P007
AC Adapter 20 V/120 W Delta ADP-120 VH D
DrivePowerCable
S26361-F5000-K001
DrivePowerCable Drive Power Cable for SATA HDD and SATA slimline DVD (length 200 + 200 mm)
COM Cable "long"
S26361-F5000-K010
COM Cable \ with fullsize slot bracket
Risercard
S26361-F5000-R006
Risercard 1 x PCIe x4

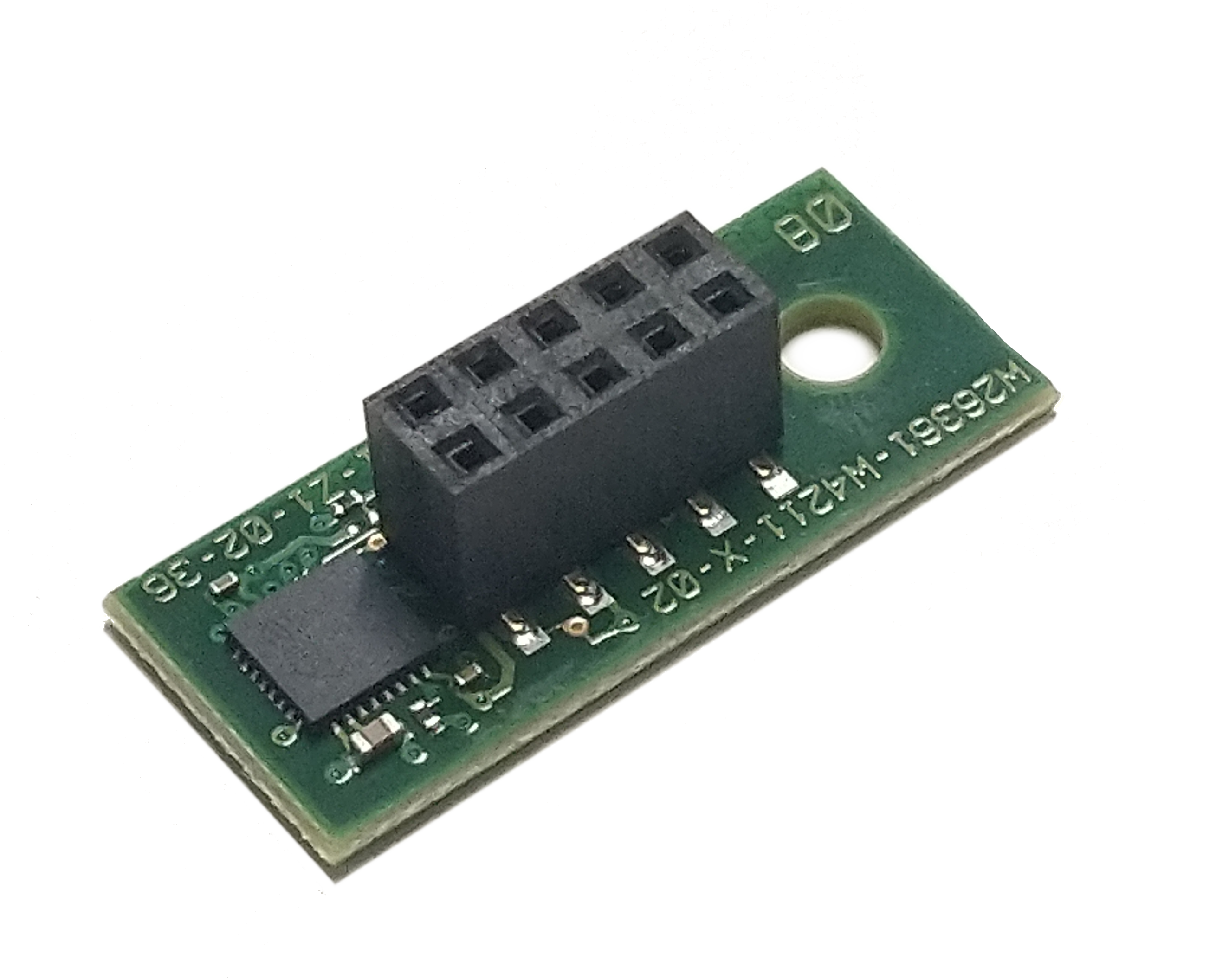

TPM Upgrade Module
S26361-F5000-R012
TPM Upgrade Module TPM V2.0 (for CoffeeLake; SPI Interface)
Mini-PCIe to M.2 2230 Converter for WLAN/BT
S26361-F5000-M003
Mini-PCIe to  M.2 2230 Converter for WLAN/BT all Boards with fullsize Mini-PCIe socket
DP 20P M to HDMI Adapter
F5000-A007
DP 20P M to HDMI Adapter DP 20P M to HDMI Adapter, up to 4k @ 60 Hz
M.2 Dual SATA Module
F5000-M004
M.2 Dual SATA Module M.2 Dual SATA Module
