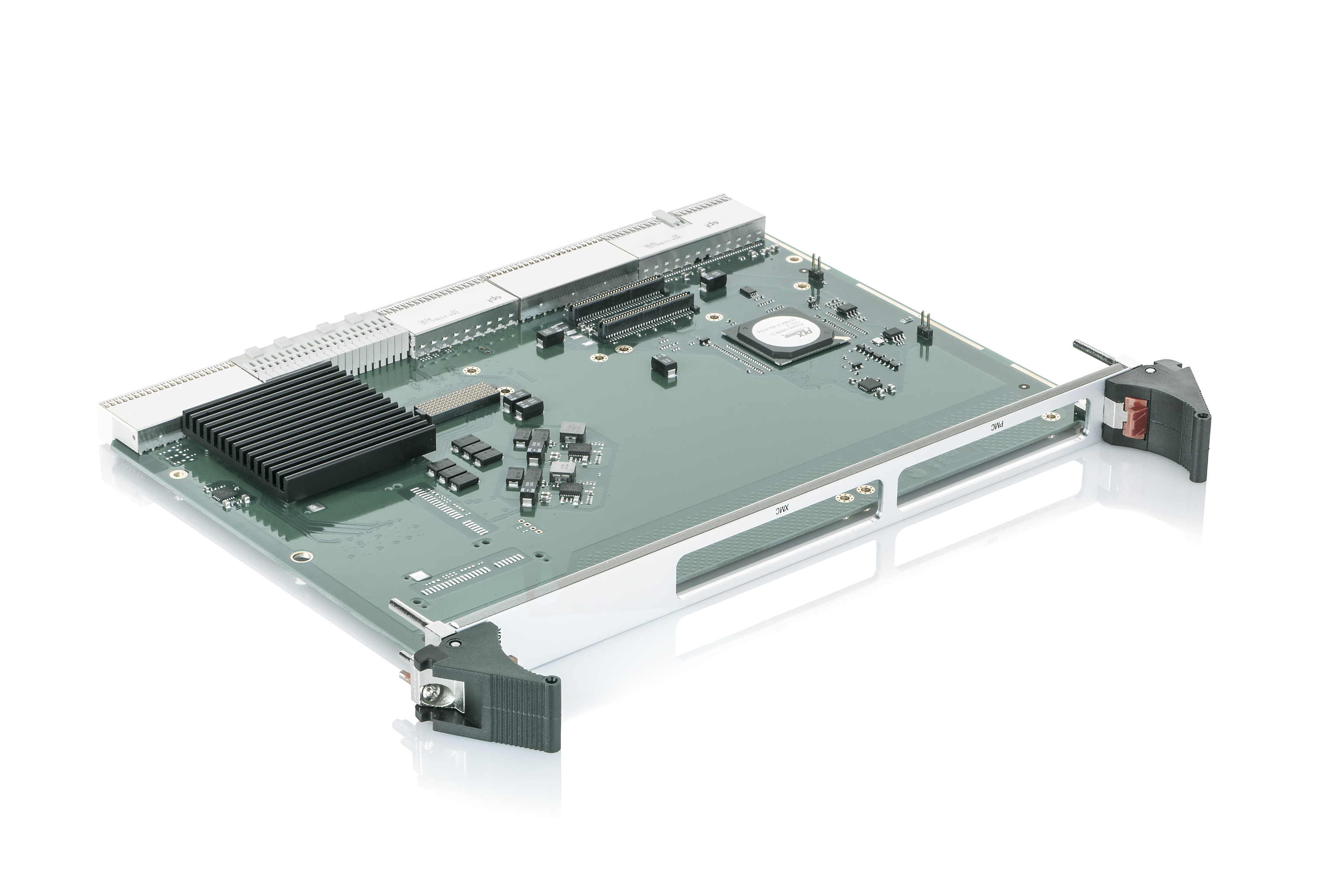

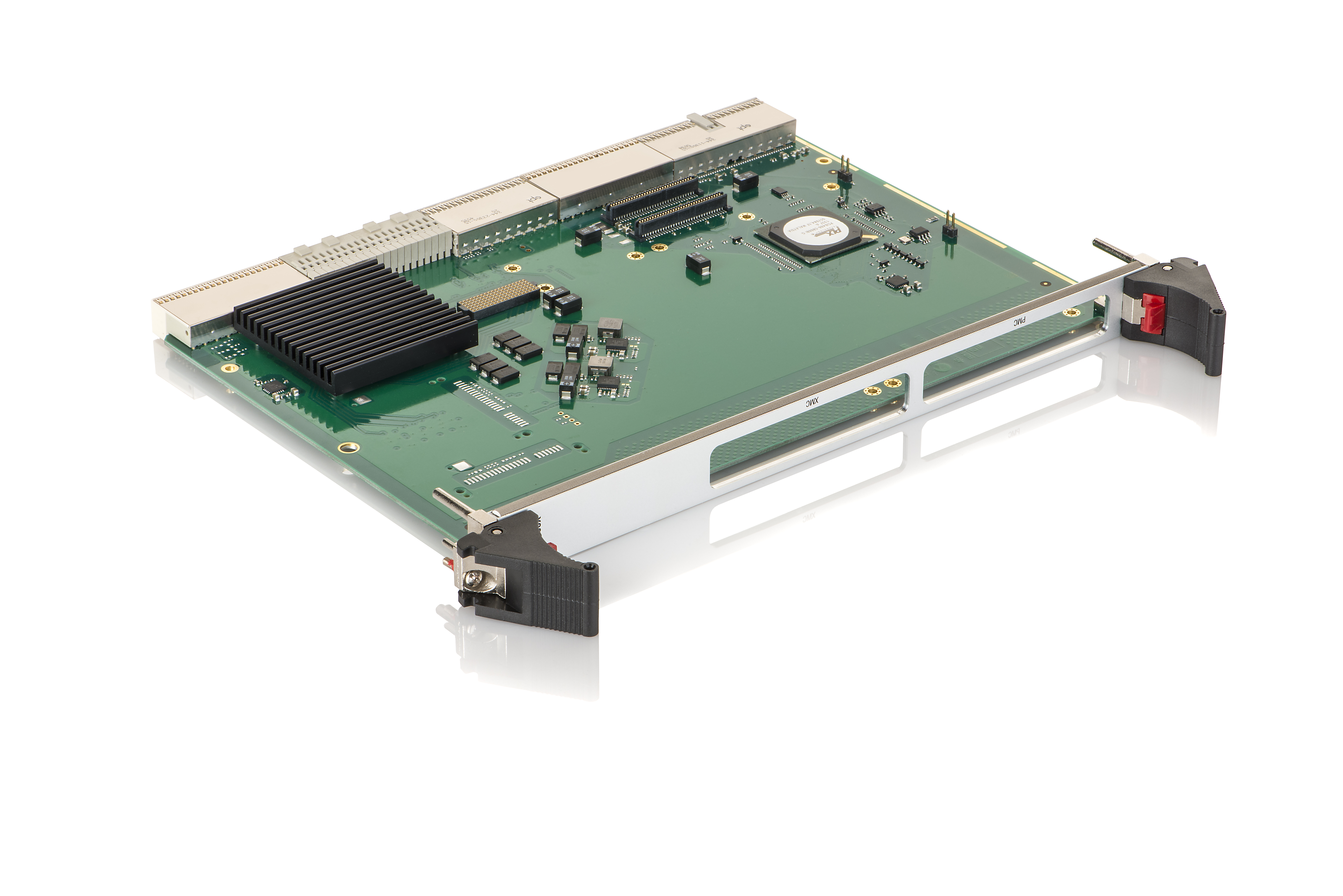

CP6105X

Open up for a wide range of applications

CP6105X opens 6U CPCI platforms up for a wide variety of COTS available XMC and PMC modules, such as Graphics, Framegrabber, Digitizer, Ethernet, and Storage. And FPGA modules, providing for highest possible interface customizations. The carrier may be used either in addition to a CPU-based XMC/PMC connector, or as alternative for an optimized balance of system temperature.

Highest data throughput and maximum bandwidth

The high speed J4 CompactPCI® backplane connector according to PICMG2.20 enables highest data throughput within the system. Data stream conversion from x8 PCI Express 2.1 (XMC) to x8 or x4 PCI Express 3.0 (system) provides for maximum data bandwidth (depending on capabilities of the selected CPU blade).

For 19" Rackmount systems with higher demands

The PICMG2.20 based CompactPCI® line provides a high-speed J4 backplane connector for serial interconnects within the system. This makes CompactPCI /PICMG2.20 the ideal choice for communication or for computing nodes, when ordinary 19" Rackmount systems do not meet the required robustness and longevity.

The CompactPCI® line for highest serial data throughput

Where CompactPCI® has been already loved because of its openness, modularity, robustness, or longevity, the PICMG2.20 based CompactPCI® line is the choice whenever highest data throughput is required. The
technology is open for PCI Express® 3.0, 10 or even 40 Gigabit Ethernet, and SATA 6Gb/s, depending on the capabilities of the selected CPU blades.
