CP605 This product is legacy

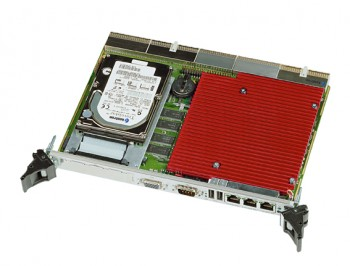

CPCI/PICMG 2.16 Pentium® 4 M up to 2.2 GHz System CPU

Specifications

Mobile Intel® Pentium® 4 processor up to 2.2 GHz
Single Slot CPU with passive cooling
Max 2GB DDR memory, 266MHz
5x USB 2.0, 2x Gigabit Ethernet, 1x FastEthernet
PICMG 2.16 compliant
Passive mode in peripheral slot
Hot swap capability
PMC interface
Rear I/O support

Download Datasheet

The connectivity star provides a future-proof investment combining latest Intel® Pentium® 4 processor technology with outstanding communication features.
If you need more information about sytems or PMC/XMC modules, please follow the links systems or PMC/XMC

Features

4HP Version

VGA, COM, 3x Ethernet, 2x USB, LEDs, Reset, PMC

Additional

Watchdog, HW monitor

Cache

512 KByte

Chipset

Intel® 845GV GMCH and ICH4

CPU	Pentium® 4-M up to 2.2 GHz

DRAM	up to 2GB DDR (up to 1GB soldered memory, 1GB via SODIMM DDR)

DRAM speed

266 MHz

Ethernet

2x GigE (front or PICMG2.16 rear), one 10/100Base-TX channel

Flash Disk

CompactFlash socket

Front Side Bus

400 MHz

Frontpanel

VGA, COM, 3x Ethernet, 2x USB, LEDs, Reset, PMC cutout

Graphics

845GV internal 2D/3D graphics accelerator

IPMI	Optionally (IPMI V1.5)

PMC	32 bit / 33 MHz, 5V (3.3V on request)

Power Consumption

1.7GHz max 38W; 2.2GHz max. 43W

Rear I/O

Yes

System peripheral

System or peripheral

Temperature/Humidity

0-60°C; 93% rel. humidity; -25-75°C optionally

USB	5x USB 2.0

Downloads

Datasheets

CP605 Datasheet
[ cp605_122006.pdf, 210.8 KB, Aug.31.2017 ]

Manuals

Manual
[ cp605_manual.pdf, 1.67 MB, Sep.11.2017 ]

Manual Errata 1
[ cp605_manual_errata_1.pdf, 160.26 KB, Sep.11.2017 ]

Manual Errata 2
[ cp605_manual_errata_2.pdf, 73.74 KB, Sep.11.2017 ]

Manual Errata 3
[ 25095_07_cp605_errata_3.pdf, 122.19 KB, Sep.11.2017 ]

General Safety Instruction
[ general-safety-instructions.pdf, 560.72 KB, Jan.04.2021 ]

BIOS

BIOS
[ cp605-ix0114.zip, 1.73 MB, Nov.27.2013 ]

Drivers

WXPEmbedded Board Support Package
[ cp605_bsp_ix0200_wxpe.zip, 6.04 MB, Jul.03.2018 ]

BSP for kernel 2.4
[ bsp-i845-pep-2-4-20-0104-noarch.rpm, 591.87 KB, Apr.20.2023 ]

Windows 2000 Board Support Package
[ cp605_ix0201_w2k.zip, 16.66 MB, Jul.03.2018 ]

BSP for kernel 2.6 (tar-Format)
[ bsp-cp605-kom-0106-1-tar.bz2, 523.59 KB, Apr.20.2023 ]

Windows Server 2003 Board Support Package
[ cp605_ix0200_w2k3.zip, 9.18 MB, Jul.03.2018 ]

Readme Windows Server 2003
[ readme_cp605_ix0200_w2k3.txt, 4.18 KB, Jul.03.2018 ]

Windows XP Board Support Package
[ cp605_ix0201_wxp.zip, 16.66 MB, Jul.03.2018 ]

Readme Windows XP
[ readme_cp605_ix0201_wxp.txt, 7.47 KB, Jul.03.2018 ]

Readme Windows 2000
[ readme_cp605_ix0201_w2k.txt, 7.42 KB, Jul.03.2018 ]

BSP for kernel 2.6 (rpm-Format)
[ bsp-cp605-kom-0107-noarch.rpm, 232.69 KB, Apr.20.2023 ]

Readme Suse Linux
[ readme_cp605_suse.pdf, 22.06 KB, Jul.03.2018 ]

Readme Redhat Linux
[ readme_cp605_redhat.pdf, 19.97 KB, Jul.03.2018 ]

Tools

Cross toolchain for i386
[ i386-unknown-linux-gnu-tar.bz2, 33.45 MB, Apr.20.2023 ]

Cross toolchain for i686
[ crosstool-x86-i686-linux-0101-tar.bz2, 109.88 MB, Apr.20.2023 ]

Technical Info

Power Requirements for CPCI Boards
[ cpci_manual_technical-info_power-requirement.pdf, 38.05 KB, Apr.20.2023 ]

ESD Protection Guidelines
[ 29789_02_sk-man-esd_protection.pdf, 134.59 KB, Nov.27.2013 ]

Product safety & Implementation Guide
[ 1021-9142_r10_sk-man-psig.pdf, 719.94 KB, Nov.27.2013 ]

Services

Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]

Variants

CP-RIO6-05
CP-RIO6-05

Rear I/O module for CP605
