CB 511 Datasheet
1.2 MB | March 26, 2026
This product is legacy and no longer actively supported.

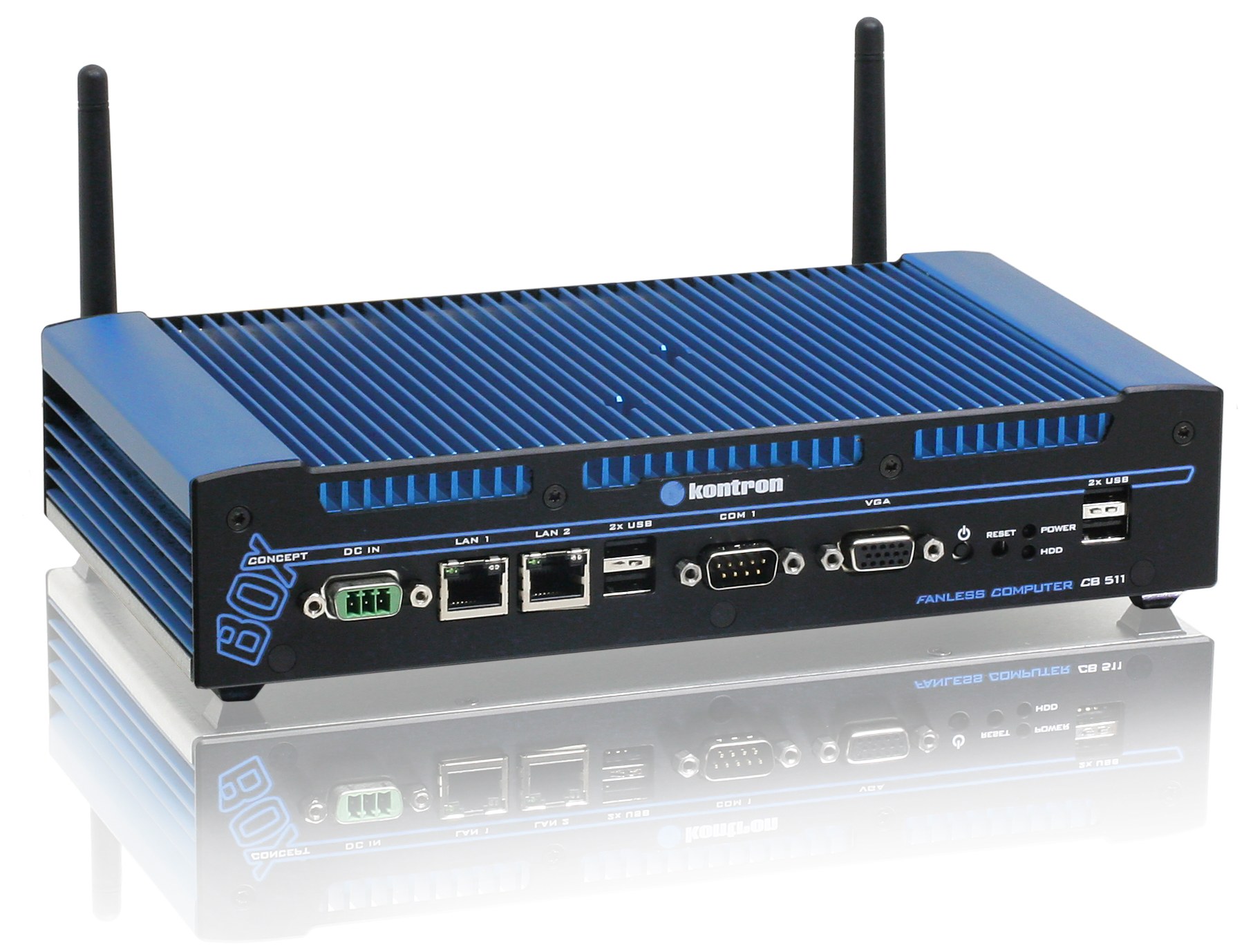

CB 511
- Intel® Atom N270 1.6GHz, 533 MHz
- Chipset 945GSE/ICH7M
- Mini PCI_e socket for e. g. WLAN
- HDA output, line out
- CF card socket
Product Information
In a rugged aluminum outfit, the CB 511 provides a full set of I/Os including 2 Gigabit Ethernet, 4 USB 2.0 ports, 2 COM ports, VGA connector, and audio connector. As options CB 511 can be equipped with DVI. This long term available embedded computer supports CompactFlash(TM) card for high-capacity storage. Additionally, this embedded box PC features DDR2 memory up to 2GB. For flexible installation, CB 511 can be standalone, wall-mounted, or frontmounted.
CB 511 built with low-cost and power-efficiency in mind is a compact value added platform for medical, digital signage, transportation, and industrial applications.
The innovative fanless design and unique thermal solution support CB 511 to operate without noise in critical environments at temperature from -15°C to 60°C.
CB 511 built with low-cost and power-efficiency in mind is a compact value added platform for medical, digital signage, transportation, and industrial applications.
The innovative fanless design and unique thermal solution support CB 511 to operate without noise in critical environments at temperature from -15°C to 60°C.
Downloads
Manuals
General Safety Instruction
628.88 KB | March 26, 2026
Quick Manual for Windows CE 6.0 used on B649 board
1.43 MB | March 26, 2026
Quick Manual for Linux used on B649 board
86.29 KB | March 26, 2026
User Guide CB511 (english)
1.56 MB | March 26, 2026
Handbuch CB511 (deutsch)
1.53 MB | March 26, 2026
Service
Kontron Services Brochure
8.9 MB | March 26, 2026
Configuration Guide CB511, CB751, CB752 and CB753
205.23 KB | March 26, 2026
Outline drawing CB 511
508.95 KB | March 26, 2026
EMC Text Report CB 511
11.9 MB | March 26, 2026
Safety Test Report CB 511
954.29 KB | March 26, 2026
Declaration of Conformity CB 511
201.44 KB | March 26, 2026
Manual Supervision
304.29 KB | March 26, 2026
Technical Manual_B649
107.65 KB | March 26, 2026
Customer Portal
This section is exclusively for Kontron customers. After registration, you will gain access to BIOS images, Product Change Notifications (PCNs), 3D models for CAD, and software development tools.
