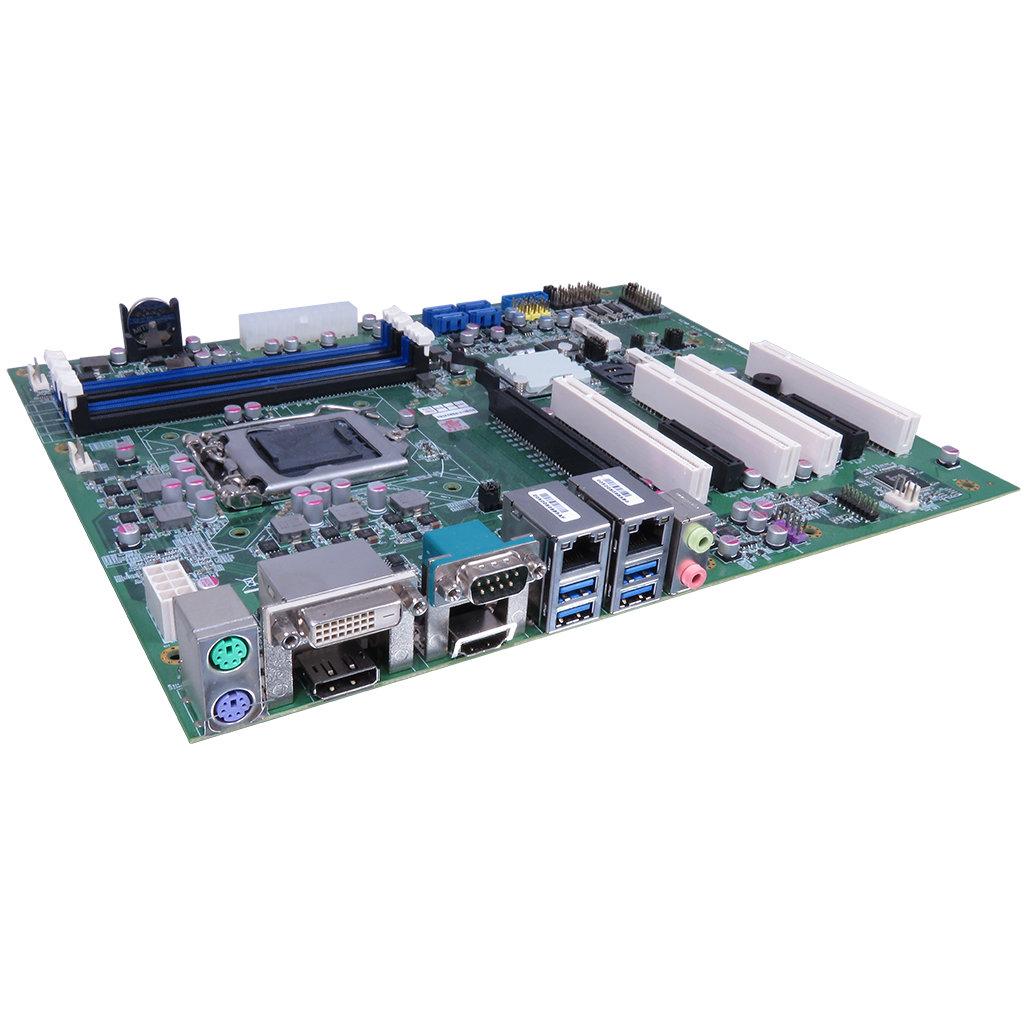

ATX-KBL-S
ATX Industrial Motherboard with 7th Gen Intel® Core™ / Celeron® S-Series Processors
- 1x DP, 1x HDMI, 1x DVI-D, 1x VGA for display output
- 2x GbE LAN for Ethernet
- 6x USB 3.0, 6x USB 2.0, 2x RS232/422/485, 4x RS232, 16-bit DIO for peripherals
- 4x SATA 3.0, up to 2x mSATA for storage
- Up to 2x mPCIe, 4x PCI, 1x PCIe x16, 2x PCIe x4 for expansion
Designed for Graphics-Intensive Applications
Great Graphics Performance
ATX-KBL-S is an ATX (Advanced Technology eXtended) form factor industrial-grade motherboard equipped with powerful 7th Generation Intel® Core™ / Celeron® S-Series Processors. It delivers greatly improved graphics performance, power efficiency and wireless connectivity in comparison with the models powered by the previous generation processors.
Rich I/O Ports and Expansion Slots
In addition to 1x DP, 1x HDMI, 1x DVI-D, 1x VGA, 6x USB 3.0, 6x USB 2.0, 2x RS232/422/485, 4x RS232, 16-bit DIO and 2x GbE LAN for display support, peripheral applications and wired networking, it features a great number of expansion slots / sockets for wireless functionality, storage expansion and industrial legacy device connection, including PCI, PCIe x16, PCIe x4, mPCIe, SATA, mSATA slots / sockets.
Technical data
| Processor | 7th Gen Intel® Core™ / Celeron® S-Series Processors (FCLGA1151 Socket) |
|---|---|
| Chipset | Intel® Q170 |
| Main Memory | 4x DDR4 2133 / 2400 UDIMM up to 64 GByte (Core™) 4x DDR4 2133 UDIMM up to 64 GByte (Celeron®) |
| Graphics Controller | Intel® HD Graphics 630 (Core™) Intel® HD Graphics 610 (Celeron®) |
| Display | 1x DP (on rear, 4096 x 2304 @ 60 Hz) 1x HDMI (on rear, 2560 x 1600 @ 60 Hz / 4096 x 2160 @ 24 Hz) 1x DVI-D (on rear, 1920 x 1200 @ 60 Hz) 1x VGA (by header, 1920 x 1200 @ 60 Hz) Triple display support |
