AT8010 Datasheet
265.16 KB | March 26, 2026
This product is legacy and no longer actively supported.

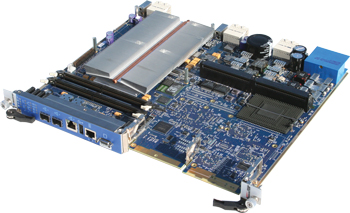

AT8010
AdvancedTCA Processor Board with dual AdvancedMC support
- RoHS compliant AdvancedTCA PICMG 3.0/3.1 Processor Board
- Intel® Xeon™ 2.8 GHz; 800 MHz FSB
- Dual AMC.1/.2/.3 (SATA) module support
- Dual DDR-II DIMM for 4 GB of PC2-3200 registered 400 SDRAM
- Dual Gigabit Ethernet base interface
AT8010 - high performance with the flexibility of dual AdvancedMC module support
The Kontron AT8010 AdvancedTCA processor board is fully RoHS
compliant and is an ideal building block for multiple wireless, IMS and
wireline network applications. With its support for two AdvancedMC
modules, the Kontron AT8010 enables designers a higher number of
design options for open modular-based systems.
Powered by a LV, high performance Intel® Xeon™ processor up to
2.8 GHz, the Kontron AT8010 features dual Gigabit Ethernet and dual
Fiber Channel on the fabric interface. The base interface offers dual
Gigabit Ethernet. With up to 4 GB of DDR-II 400 SDRAM, IPMI v1.5
support, this node board provides high interconnect performance that
is ideally suited to support any number of high throughput I/O communication
applications.
Kontron pre-integrated open modular solutions offer best-in-class
carrier-grade hardware platforms, combined with carrier-grade OS and
middleware solutions. Kontron offers a diverse selection of
AdvancedTCA processor, switch and carrier boards plus complementary
field-replaceable AdvancedMC processor, storage, and I/O modules.
compliant and is an ideal building block for multiple wireless, IMS and
wireline network applications. With its support for two AdvancedMC
modules, the Kontron AT8010 enables designers a higher number of
design options for open modular-based systems.
Powered by a LV, high performance Intel® Xeon™ processor up to
2.8 GHz, the Kontron AT8010 features dual Gigabit Ethernet and dual
Fiber Channel on the fabric interface. The base interface offers dual
Gigabit Ethernet. With up to 4 GB of DDR-II 400 SDRAM, IPMI v1.5
support, this node board provides high interconnect performance that
is ideally suited to support any number of high throughput I/O communication
applications.
Kontron pre-integrated open modular solutions offer best-in-class
carrier-grade hardware platforms, combined with carrier-grade OS and
middleware solutions. Kontron offers a diverse selection of
AdvancedTCA processor, switch and carrier boards plus complementary
field-replaceable AdvancedMC processor, storage, and I/O modules.
