Connect
IoT Bundle

IoT Gateway for easy Integration of Data Interfaces in Production

IoT Connectivity made easy: simple, fast and flexible solution for networked machines and systems

Are you looking for a simple and reliable solution for networking your machines and systems? With the Connect IoT Bundle, you have found the perfect combination of hardware and software. It includes the robust KBox A-251-AML/ADN industrial PC and the FabEagle®Connect integration software to set up data interfaces quickly and easily.

Thanks to the low-code configuration dialogues, you can get started right away and set up standardized interfaces for your IoT applications in no time. If your applications are more complex, you can simply develop your own components for additional logic or data transformations with a little specialist knowledge.

Whether standard protocols or an open framework - with the Connect IoT Bundle, you are flexible. It offers you every opportunity to implement the digitalization of your production exactly as you want it.

A stylized illustration of an automated assembly line featuring robotic arms, a conveyor belt, and various components being assembled. Data displays are shown above the assembly line, indicating monitoring and control features. The color scheme includes shades of blue and white, suggesting a modern, high-tech environment.

You receive this software and hardware in the Connect IoT Bundle

A futuristic digital landscape featuring interconnected glowing cubes and lines, illuminated in shades of blue and purple, creating a high-tech, abstract network design.
FabEagle®Connect

The low-code integration software for standardized interfaces in production

Learn more
A compact gray industrial device with various ports and connectors on one side, including Ethernet, USB, and serial ports. The device has a ribbed top and is designed for mounting or integration in technical systems.
KBox A-251-AML/ADN

Compact industrial box PC for demanding IoT edge applications

Learn more

Your advantages at a glance

Quick onboarding

Quick onboarding

Flexible and customizable

Flexible and customizable

Reduce costs

Reduce costs

Versatile

Versatile

Reliable at all times

Reliable at all times

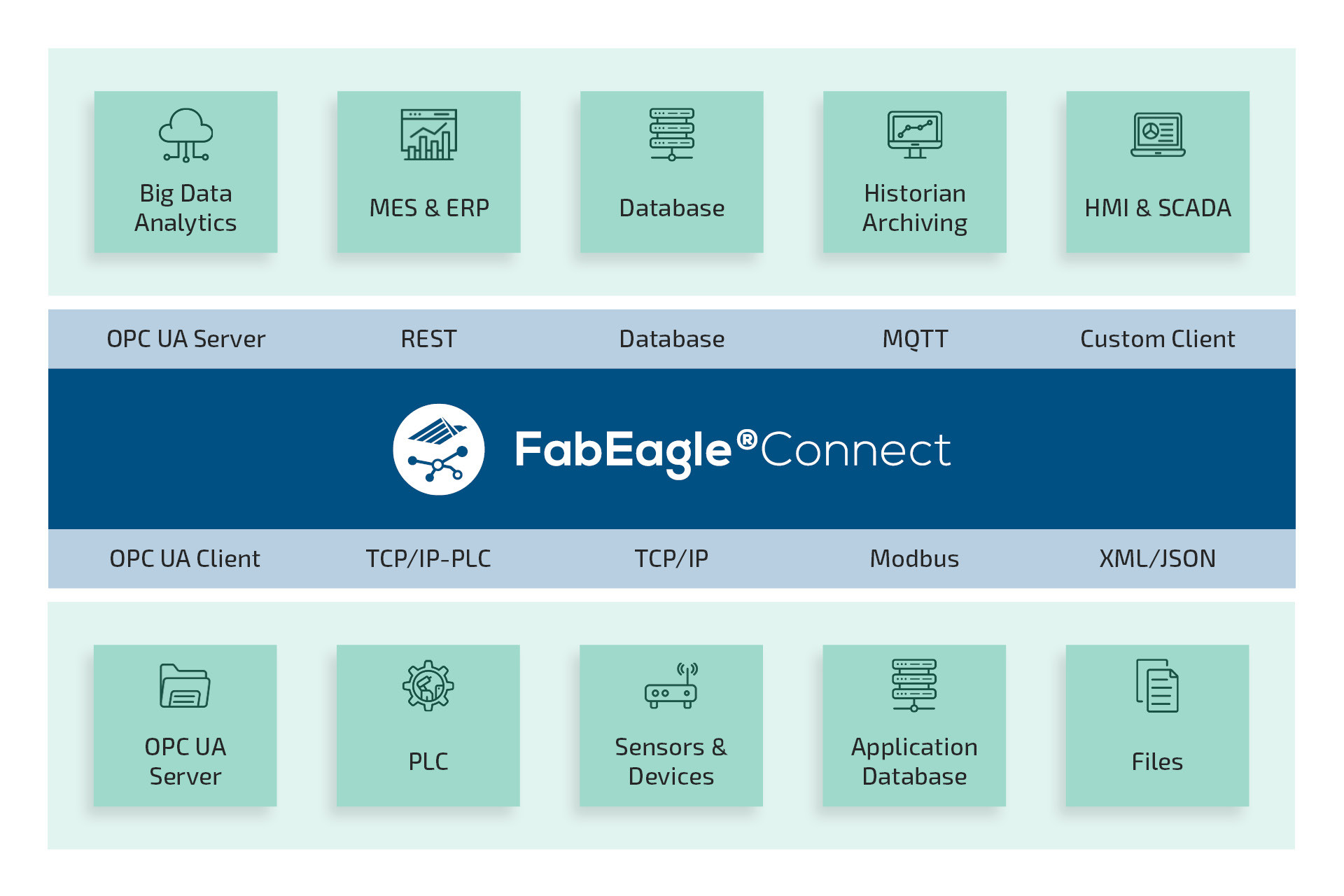

A diagram showing the components of FabEagle® Connect, including OPC UA Server, Database, MQTT, and various clients and protocols. Features categories like Big Data Analytics, MES & ERP, Historian Archiving, and HMI & SCADA. The central area highlights connectivity options between different systems.

Data interfaces in production: configuration instead of programming

Mit der komponentenbasierten Schnittstellenintegrationssoftware FabEagle®Connect erstellen Sie funktionale With the component-based interface integration software FabEagle®Connect, you can create functional interfaces in the shortest possible time. Each component takes on a clear task - from the implementation of specific interface protocols and the transformation of message types and structures to individual programming with C# code for your special solutions. This allows you to efficiently connect data sources and sinks and translate between protocols. Whether simple or complex - FabEagle®Connect is the software for optimal networking of your store floor with IT systems.

A compact gray industrial device with various ports and connectors on one side, including Ethernet, USB, and serial ports. The device has a ribbed top and is designed for mounting or integration in technical systems.

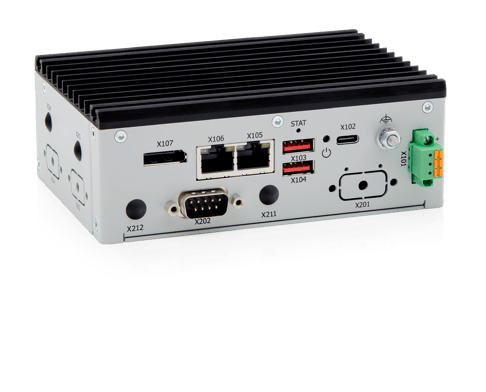

Gateway integration at the machine

The industrial-grade KBox A-251-AML/ADN was specially developed for demanding IoT gateway applications in an industrial environment. At the heart of the industrial PC are the latest generation processors from the Intel Atom® X7000, Intel® N or Intel® Core™ i3 N series with up to eight computing cores and a maximum of 16 GB DDR5 memory. In addition to a DisplayPort and two 2.5GbE interfaces, the new KBox A-251-AML/ADN also has three USB 3.2 ports, including a USB-C port, as well as a USB 2.0 port and a serial RS232 interface. The KBox A-251-AML/ADN can be expanded with a wide range of functionalities using the two internal M.2 expansion slots, which can be used to integrate SSDs as well as fieldbuses and wireless technology such as 4G/5G or WiFi 6 connectivity.

Features of the Connect IoT Bundle at a glance

The image features the logo for FabEagle® Connect over a dark background with abstract blue and white digital lines and nodes, suggesting a global network or connectivity theme.
FabEagle®Connect Software

  • Easy configuration and customization

    • Low-code dialog guidance

    • Import and export of configurations

    • User roles for clear administration

  • Low-code components for data interfacesPrepared component types with all important settings and parametersIoT interfaces with MQTT and REST clientIndustry standards such as OPC UA, TCP/IP and Modbus

Futuristic circuit board featuring glowing cylindrical components with digital patterns and intricate neon lines connecting them.

  • Edge logic with C# component

    • Framework component for individual logics with C#

    • Transformation of message structures and content

  • Connection of SQL databases

    • Write and read directly from SQL databases

    • Connection of MS SQL Server, Oracle DB, PostgreSQL DB and SQLite DB

A compact gray industrial device with various ports and connectors on one side, including Ethernet, USB, and serial ports. The device has a ribbed top and is designed for mounting or integration in technical systems.
Hardware Gateway KBox A-251-AML/ADN für Industrie 4.0

  • Intel® N97, Core™ i3-N305 or Atom® x7000RE processors

  • Based on a powerful 2.5" single board computer

  • Options for Wi-Fi, LTE/5G, additional GbE, serial ports and GPIOs

  • Direct mounting on the machine or in the control cabinet

Download IoT Bundle Factsheet

PDF

Connect-IoT-Bundle
