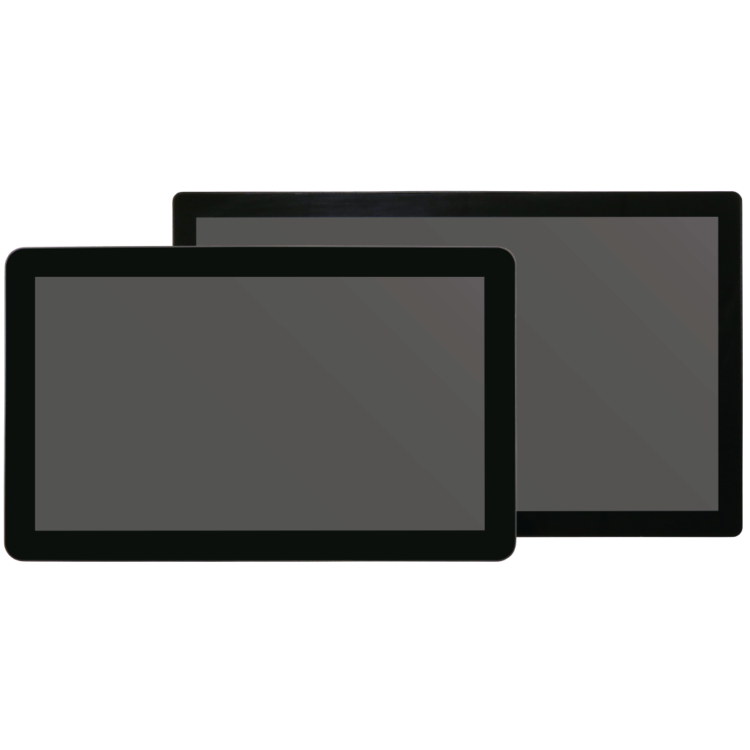

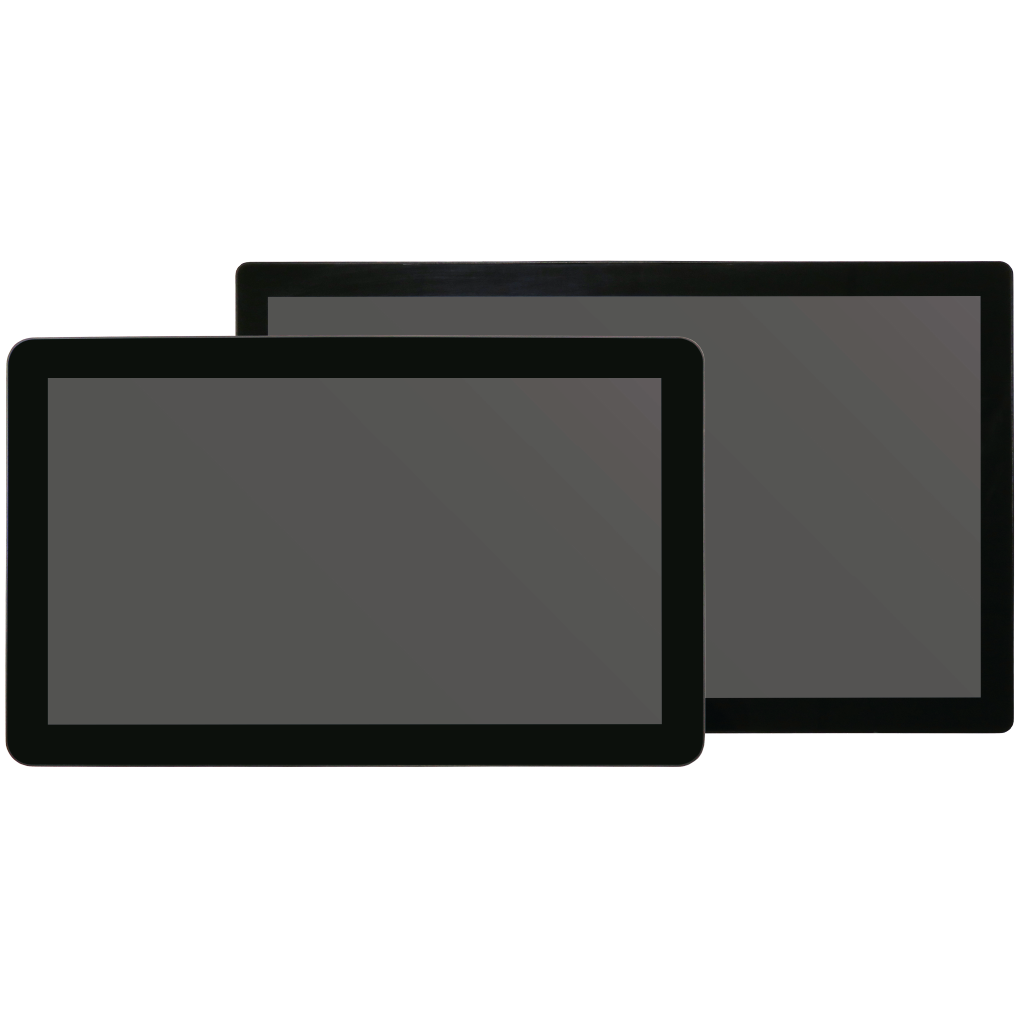

XtremeView
Widescreen 10-point PCAP Multi-touch Monitor
Spezifikationen
- 1x HDMI, 1x DVI-D, 1x VGA for video input
- 1x USB2.0 for touch functionality
- IP65-rated front design
- Fully flat front design without height gap
- Ultra-slim frame design
Ultra-slim Frame, Fanless & Anti-spray
Kontron XtremeView is a widescreen monitor. It features 10-point PCAP multi-touch panel and enables fast / intuitive operation. Besides, it comes with a variety of display ports, including 1x HDMI, 1x DVI-D and 1x VGA, for various viewing options, and 1x USB 2.0 for touch functionality.
The XtremeView has an IP65-rated fully flat front design and anti-scratch glass surface. It can thus protect against water spray intrusion, resist scratches / abrasion from sharp / rough stuff, and prevent the accumulation of visible or non-visible contamination on the surface. As a result, it is able to provide excellent resistance to harsh conditions and is highly suitable to a wide range of industrial applications.
Eigenschaften
| Display | 18.5" / 21.5” widescreen 10-point PCAP multi-touch LCD display 1x HDMI (on rear) 1x DVI-D (on rear) 1x VGA (on rear) |
| Audio | 1x Line-in (on rear) 1x Line-out (on rear) |
| USB | 1x USB 2.0 (Type A on rear) |
| Input Voltage | DC 9 V ~ 36 V |
| Power connector | 3-pin Phoenix Connector (on rear) |
| Cooling | Passive |
| Housing | Glass Surface + Metal Chassis w/ Ultra-slim Frame |
| Dimensions (H x W x D) | 286.3 mm x 465.2 mm x 50.5 mm / 11.27" x 18.31" x 1.99" (18.5" model) 316 mm x 521 mm x 50.9 mm / 12.44" x 20.51" x 2.00" (21.5" model) |
| Mounting | Panel Mount |
| Operating Temperature | 0 °C ~ 50 °C / 32 °F ~ 122 °F |
| Humidity | 0 % ~ 95 % |
| Compliance | IP65 (front) |
