VXI-D size 6021

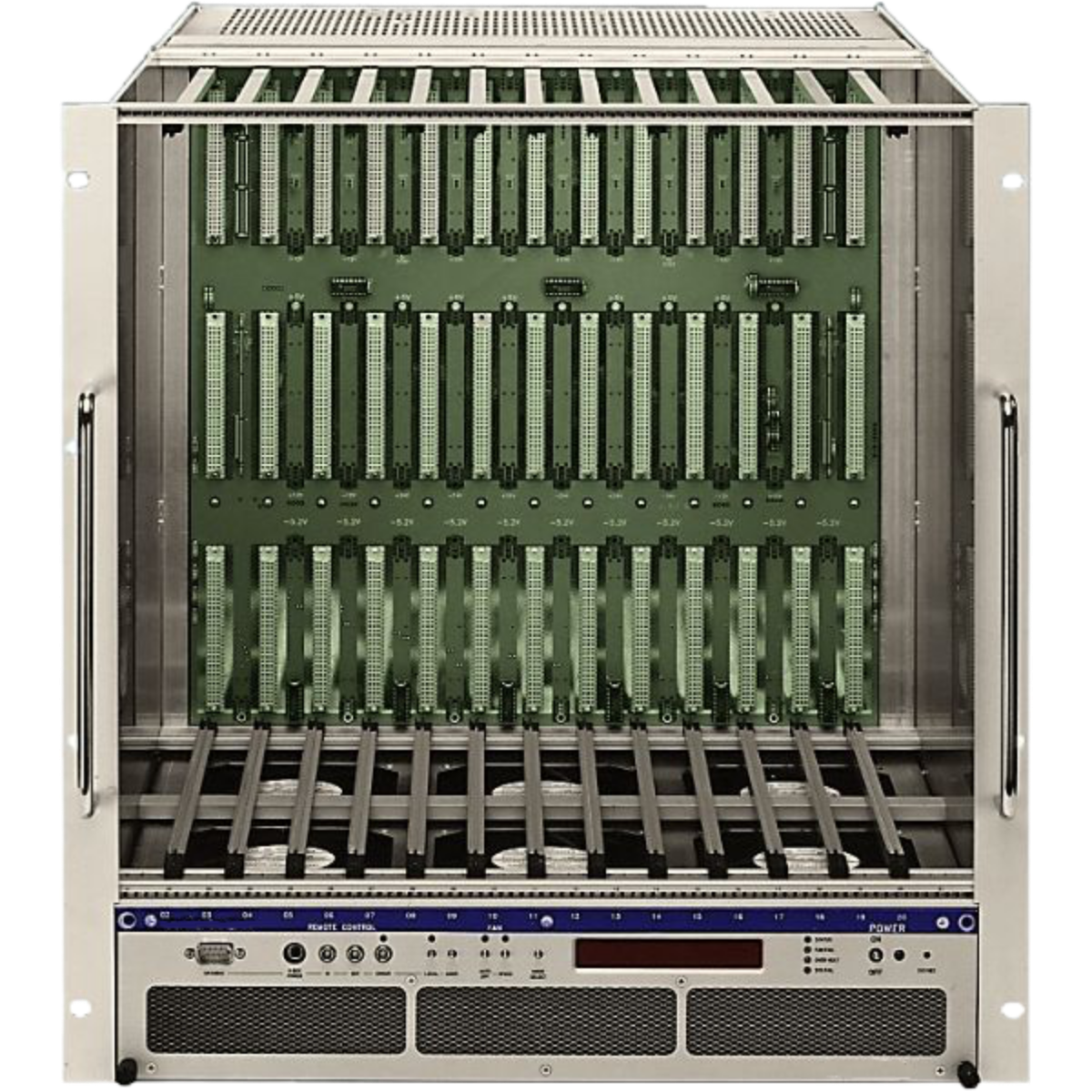

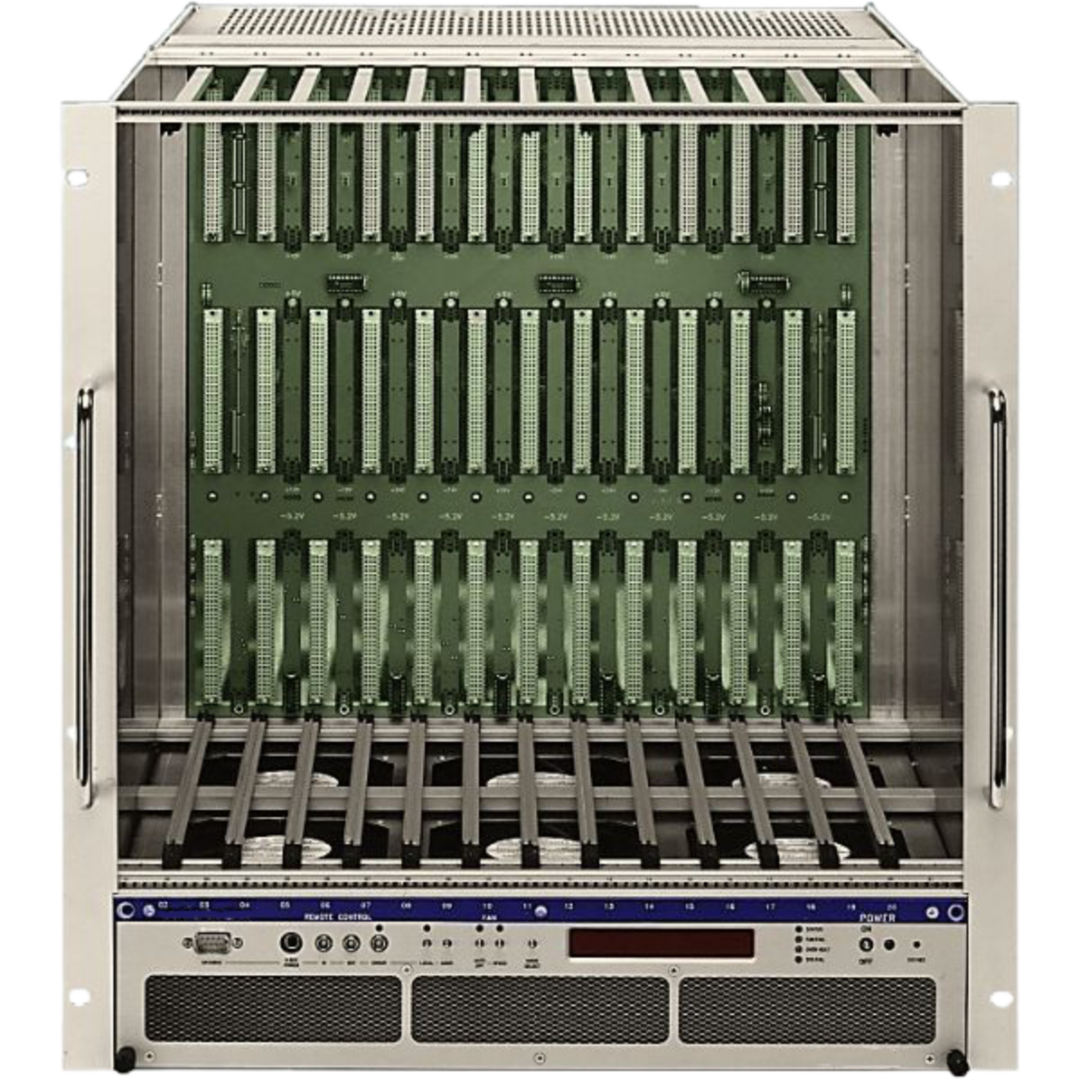

The VXI‑D size 6021 Crate is a high-performance, D‑size (9U × 340 mm) VXI chassis offering 13 module slots in a rugged 11U enclosure.
- Mechanics: 11U × 19″ rackmount, VXI D-size compliant, EMC/ESD-protected
- Slots: 13 VXI D-size user slots (9U × 340 mm)
- Power Supply: Up to 6 kW DC output, modular PSU configuration (UEP 6021)
- Interfaces: Ethernet, RS232, CAN-bus for remote monitoring & control
- Cooling: Fan tray with 6 adjustable DC fans, bottom-to-top airflow, optional filter
Produktinformationen
It provides up to 6 kW DC power, advanced cooling via a high-pressure fan tray, and full microprocessor-controlled diagnostics and remote monitoring.
The VXI‑D size 6021 Crate features a robust steel‑aluminum 11U enclosure with precise rail alignment and a monolithic 13‑slot D-size VXI backplane (J1/J2/J3) with active termination and automatic daisy-chain. A front-mounted fan tray delivers high airflow using six individually controlled, long‑life DC fans with speed and temperature monitoring, managed via a microprocessor and alphanumeric LED display—remote control is available via Ethernet. Its modular “Cavity‑VHF” power supply system offers ultra-low noise, programmable voltages and current limits, full protection circuitry, and up to 6 kW output in a scalable design. Overall, the crate is engineered for mission-critical test environments where reliability, serviceability, and high power density are essential.
Technische Daten
| Mechanics & Slots | 19″ × 11U enclosure supporting 13 D-size VXI modules (9U × 340 mm) Heavy-duty steel–aluminum construction with 5 mm side plates and precise rail alignment Monolithic 13-slot 9U backplane (J1/J2/J3), 8-layer PCB, active termination and automatic daisy-chain 2U space below for fan tray; power supply mounted at rear top; support for up to 8 temperature sensors |
|---|---|
| Cooling & Fans | High-performance fan tray delivering bottom-to-top airflow via six individually controlled long-life DC fans (MTBF > 65,000 h) Adjustable fan speed (1,200–3,600 RPM) with integrated thermal and fan monitoring Microprocessor control with alphanumeric LED display and Ethernet interface for remote operation |
| Power Supply | “Cavity-VHF” modular switching power system with excellent RF shielding and ultra-low ripple (<3 mVpp for <12 V rails; <10–15 mV on others) Supports up to 3 kW (3U variant) or 6 kW (6U variant) with multiple modules, soft-start, PFC, full protection, and Power Protect Memory (PPM) |
| Diagnostics & Remote Control | Microprocessor-based monitoring of fan tray, bin, and supply parameters via front-panel LED and Ethernet interface |
| Dimensions (W x H x D) | Approx. 19″ × 11U × 640 mm (W × H × D) |
