VXI-C size 6021 Datasheet
2.02 MB | 26. März 2026
VXI-C size 6021

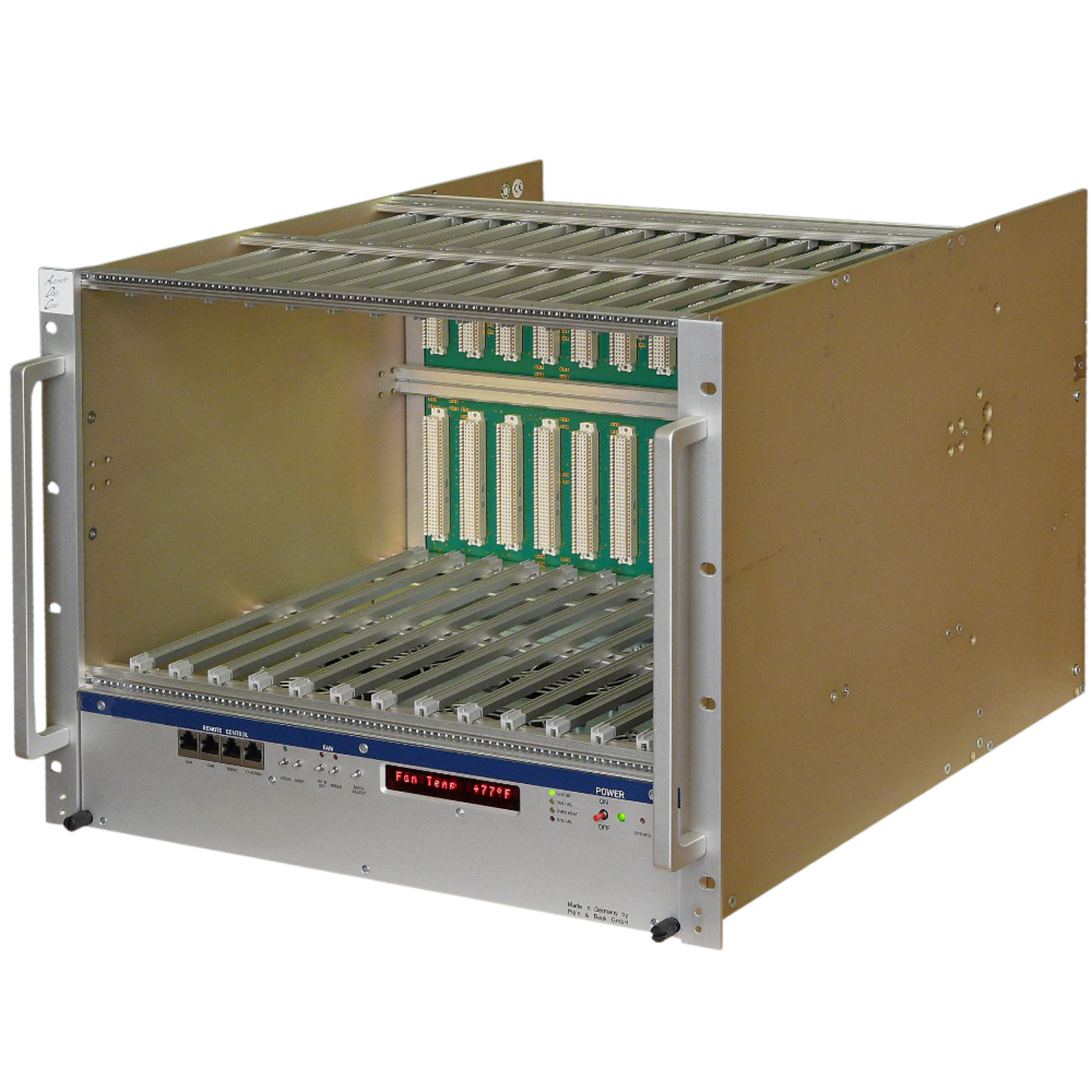

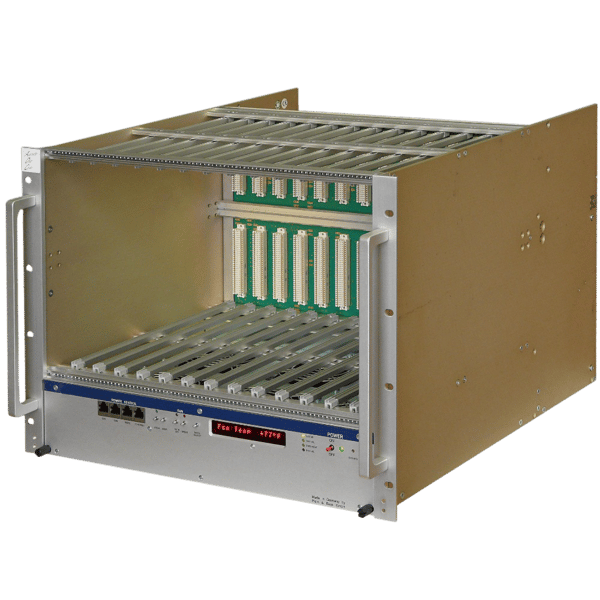

The VXI‑C size 6021 Crate is a rugged, high-performance 13-slot VXI chassis (C‑size, 6U × 340 mm) designed for demanding test and measurement applications.
- Compact 6U VXI-C Mini crate with integrated 650 W PSU
- 5 V / 120 A high current rail for demanding loads
- Low-noise design: < 50 mVpp ripple, < 3 mVrms
- Integrated overvoltage & overcurrent protection
- Forced-air cooling with long-life DC blower (MTBF > 60,000 h)
Produktinformationen
It offers modular design with up to 6 kW DC power capacity, advanced cooling, and microprocessor-based monitoring in an 8U enclosure.
The VXI‑C size 6021 Crate combines a rugged steel–aluminum 8U enclosure with a 13-slot VXI backplane, microprocessor-controlled fan tray, and modular high-density power supplies. It delivers up to 6 kW of DC power via “Cavity‑VHF” switching modules with comprehensive protection and programmability. High-performance cooling is provided by a bottom fan tray housing six individually controlled DC fans (1,200–3,600 RPM) with thermal and speed monitoring. Built-in diagnostics, LED display, and remote control interfaces (Ethernet) enable full system monitoring and integration into automated setups. With optional temperature sensors and a flexible, modular layout, this crate is engineered for reliability in high-demand environments.
Technische Daten
| Mechanics & Slots | 19″ × 8U enclosure for 13 VXI modules (6U × 340 mm) Rugged steel–aluminum structure with precise rail alignment and 2 U fan tray space below card cage Monolithic 13-slot multilayer VXI backplane with active termination and automatic daisy-chain |
|---|---|
| Cooling & Fans | Front fan tray with six DC fans (bottom-to-top airflow), MTBF > 60,000 h at 40 °C Adjustable fan speed (1,200–3,600 RPM), integrated thermal and fan monitoring with LED display and Ethernet control |
| Power Supply | “Cavity-VHF” low-noise, modular DC power supply architecture with up to 6 kW output Programmable voltages and current limits, under-/over-voltage/temperature protection, and Power Protect Memory (PPM) Worldwide auto-range input (94–260 V AC) with Power Factor Correction (PFC) |
| Control & Monitoring | Microprocessor-controlled system with front-panel LED display, remote Ethernet interface for monitoring of bin, fans, and power status Supports up to eight optional temperature sensors above VXI modules |
| Dimensions (W x H x D) | Approx. 19″ × 8U × 660 mm (depth) |
