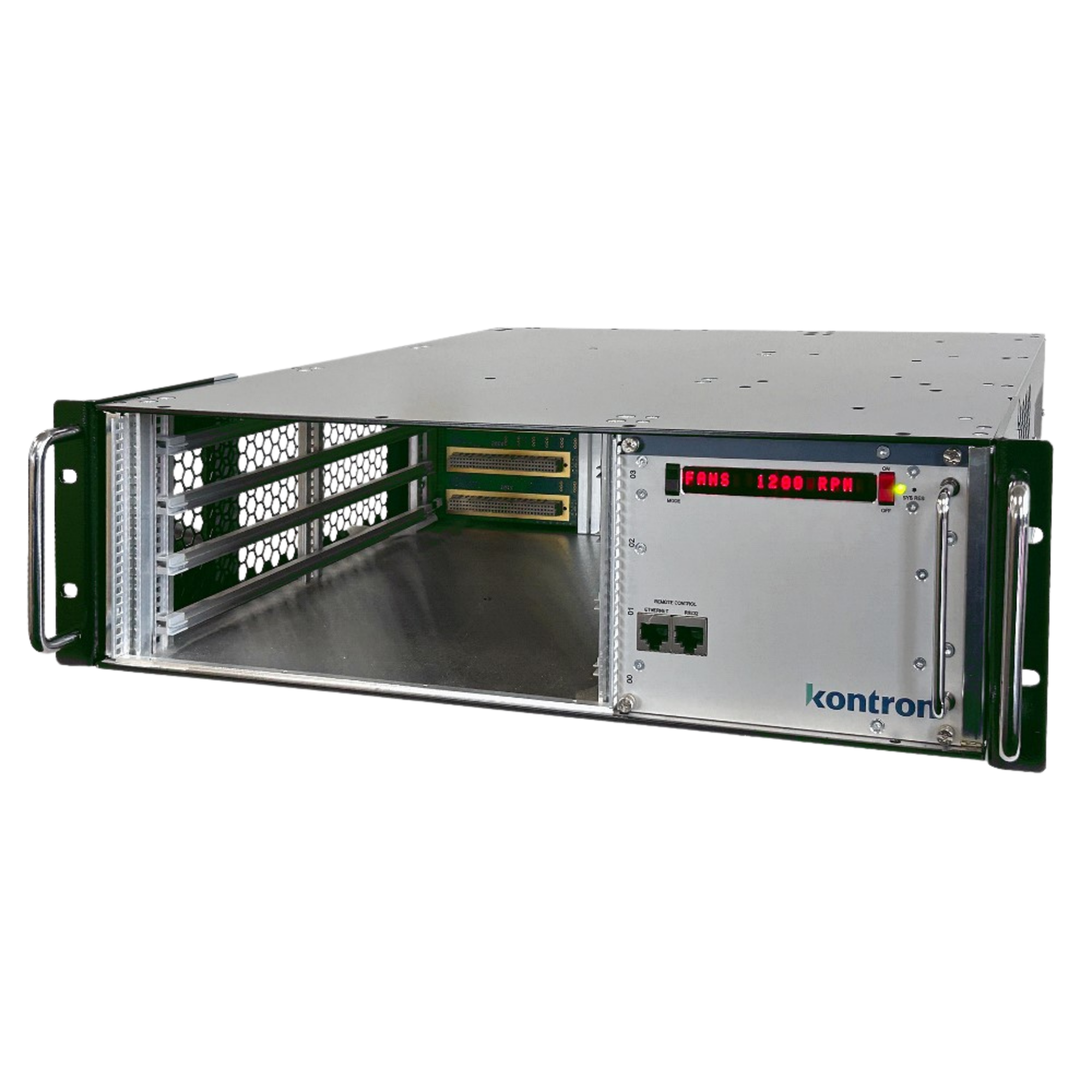

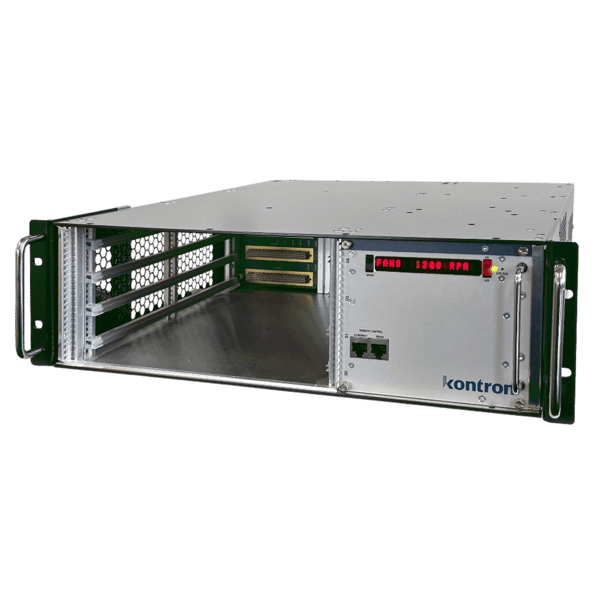

VXI-C size 343 Mini
The VXI‑C size 343 Mini Crate is a compact, 4-slot VXI chassis (C‑size) tailored for small-scale test and instrumentation setups
- Compact 6U VXI-C Mini crate with integrated 1100 W PSU
- Mechanics: VXI-MINI-Bin for 6U × 340 mm
- C-size) VXI modules; suitable for 19″ rack, tower, or desktop use
- Power: Integrated power supply with worldwide auto-range
- AC input (94–264 V), PFC, CE-conformity
Produktinformationen
The VXI-C size 343 Mini Crate integrates a high-performance power supply and a removable fan tray and can operate either as a compact desktop unit or as a 19″ rack-mounted system.
This mini crate is a 4-slot chassis designed for C-size VXI modules (6U × 340 mm), combining the proven technology of Kontron Hartmann Wiener with a minimal footprint. Its microprocessor-controlled architecture enables both local and remote monitoring, supported by an alphanumeric LED display, system status indicators, and a recessed reset button.
The front-accessible fan tray contains two high-efficiency DC blowers with adjustable speeds between 2,400 and 3,400 RPM, ensuring optimized right-to-left airflow. Continuous system supervision covers fan performance, thermal conditions, and power status, with support for up to four optional temperature sensors and programmable over-temperature protection.
Remote connectivity via Ethernet enables full system diagnostics and control. The integrated, wide-range AC power supply (94–264 V AC) with active PFC ensures reliable, CE-compliant operation. With a height of only 3U (107 mm) and a weight of approximately 11 kg, the VXI-C size 343 Mini Crate is ideal for space-constrained, high-performance test and measurement environments.
Technische Daten
| Mechanics & Slots | VXI-MINI-Bin mechanics for C-size (6U × 340 mm) VXI modules, suitable for desktop, tower, or 19″ rack mounting Monolithic 4-slot VXI backplane |
|---|---|
| Control | Microprocessor-controlled with alphanumeric LED display, one status LED, and recessed RESET button |
| Cooling & Fans | Front-accessible, removable fan tray (optional filter) with two DC blowers, adjustable speed (2,400–3,400 RPM), airflow from right (IN) to left (OUT) Integrated monitoring for power, fan, and temperature; supports up to four optional temperature sensors; temperature display in °C/°F; programmable over-temperature protection |
| Interface | Ethernet interface for remote monitoring and control |
| Power Supply | Built-in power supply, CE-compliant; worldwide auto-range AC input (94–264 V) with PFC |
