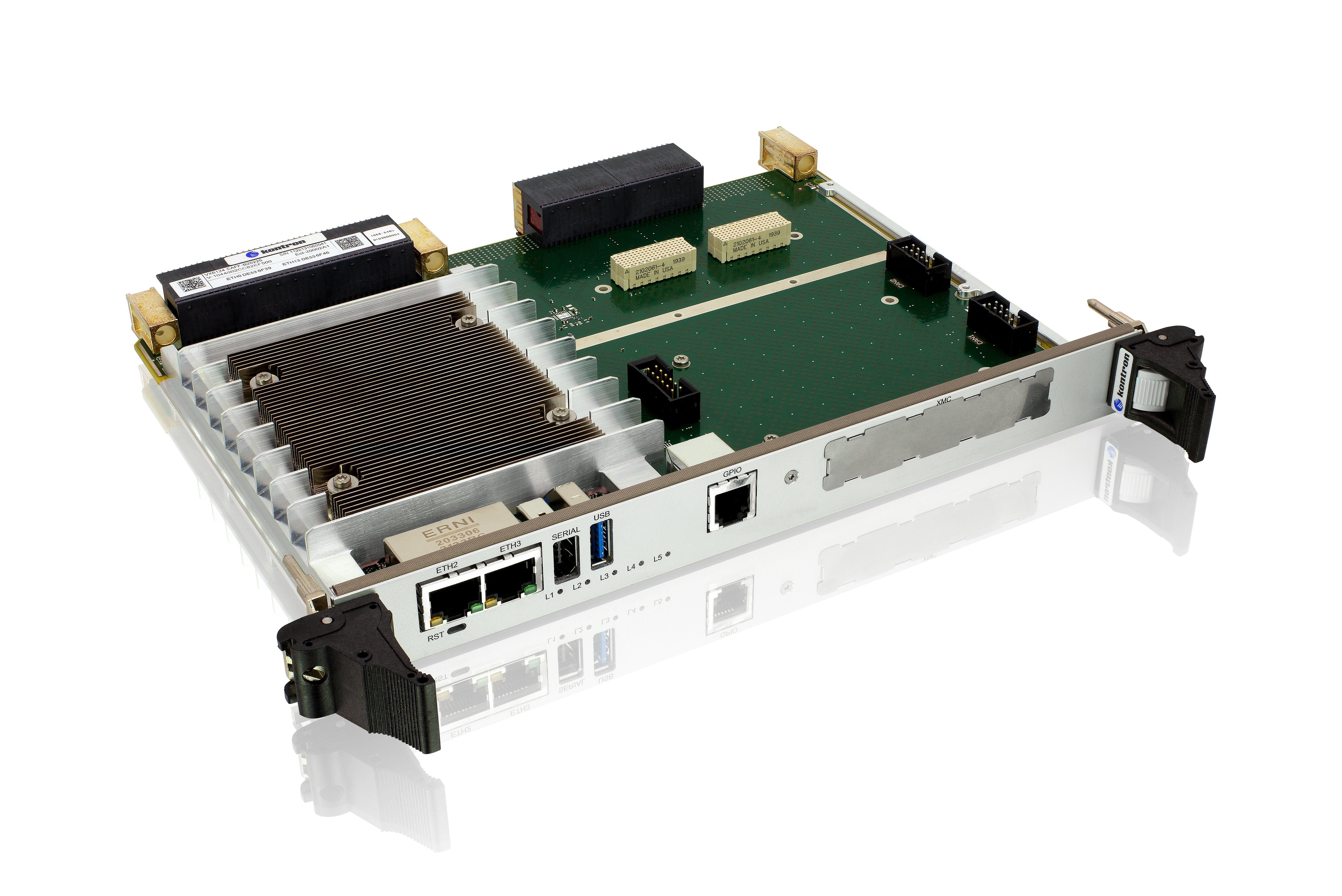

VX6124
6U OpenVPX ARM A72 Computing Node
Mouseover Zoom loading...
Spezifikationen
- High End, Low power: 200k+ DMIPS, 30W SBC
- 16 ARM A72 cores @ 2.0GHz NXP LX2160A SOC
- 16 128-bit NEON™ SIMD engines
- 40G BaseKR4 data plane, 10G BaseKR control plane port
- Arm TrustZone, Kontron AppProtect support
- 40G Data Plane ready, SOSA compatible test vehicle
VX6124, a 6U VPX 200k+ DMIPS processing blade features 40G Ethernet connectivity, enabling powerful HPEC architectures for the next decade. VX6124 is the 6U version of an architecture designed for long term programs and harsh environments, ideal for applications requiring outstanding bandwidth and digital security. This architecture can be used as a vehicle for 40G data plane system experiments (with Kontron VX6940 40G/100G switch for example)
The VX6124 NXP QorIQ Layerscape LX2160A processor is coupled with up to 32GB DDR4 memory. The air cooled version is thermally and mechanically designed to optimize the use of Kontron XMC-GPU91 Radeon™ E9171, which adds to the massive computing power offered by the main CPU, another 1.2 TFlops of computing power via its eight compute units.
Eigenschaften
| Processor | QorIQ® Layerscape® LX2160, 16-core, 30W TDP |
| Cache | 8Mbyte |
| DRAM DDR4 | 16Gbyte dual channel DDR4 SDRAM with ECC |
| Expansion Slots | XMC |
| Backplanes | SLT6-PAY-4F1Q1H4U1T1S1S1TU2U2T1H-10.6.3-0 MOD6-PAY-4F1Q1H4U1T1S1S1TU2U2T1H-12.6.3-2 |
| I/O Features | Data plane: Dual 40/100GBASE-KR4 ports Expansion plane: x4 PCIe Gen2 Control planes: 10GBASE-KR + 1000BASE-T ports SATAIII for storage Dual USB2.0 ports USB3.0 port Serial line 8 GPIOs XMCIOs Dual SMB/IPMB, JTAG, Power Supplies |
| Cooling | VITA 47 Standard air-cooled (0/+55°C) VITA 47 Conduction-Cooled CC-4 (-40/+85°C) |
| Storage | 32GB eMMC on-board storage |
| Frontpanel | 2x 10/100/1000Base-T(X) on RJ-45 connectors 1x RS-232 UART interfaces on iX connector 1x USB3 type A port 1x RJ11 connector with GPIOs One Reset button Bicolor LEDS |
Downloads
Datasheets
VX6124 datasheet
[ vx6124_datasheet.pdf, 3.38 MB, Oct.19.2023 ]
Manuals
VX6124 User's Guide
[eingeschränkter Download]
[ d280304-1-0-vx6124_ug_v1-0.pdf, 5.24 MB, Dec.06.2024 ]
General Safety Instruction
[ vpx-360-manual.pdf, 5.67 MB, Dec.02.2025 ]
