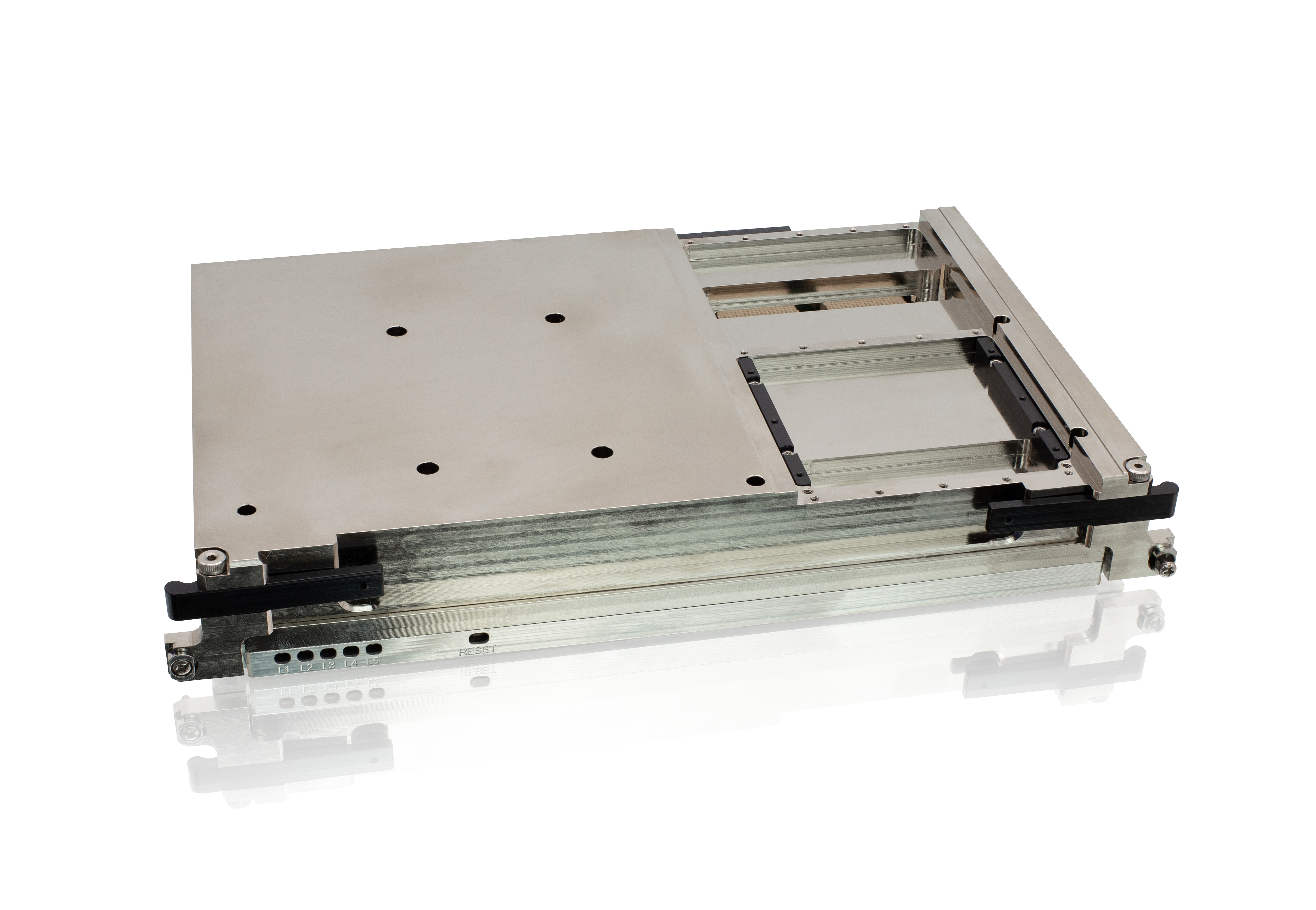

VX6096 Neu

SOSA-aligned 6U VPX Intel® Xeon® D-2700/2800 Plug-in Card
Spezifikationen
  • Intel® Xeon® D-2700/2800 processors with 100G Integrated Ethernet
  • Up to 128 GByte DDR4 memory with ECC
  • XMC/MXM Mezzanine slots
  • Air-Flow Through cooling technology
  • Designed in accordance with SOSA™ standard
Datenblatt herunterladen

Designed for imaging, radar and embedded server applications

VX6096 can handle very high data processing capabilities with the Intel Xeon-D2700/2800 in 16- and 20-core versions and increased network capabilities with the support of 100G Ethernet. A GPU board can enhance graphics and compute capabilities thanks to the XMC or MXM expansion slots.  Its advanced Air-flow through cooling technology (VITA48.8) significantly improves power dissipation making it fit for demanding environmental constraints. Hardware security features such as TPM2, a secure PLD and software techniques such as measured and secure boots, guarantee the integrity of all the firmware images loaded before any code is executed thus protecting the board from cyber-attacks.

VX6096 is a perfect fit for compute intensive applications in all military radar segments, such as Airborne mapping, navigation, surveillance & airborne early warning radars, long distance tracking and target localization.



Eigenschaften

CPU Intel® Xeon®-D2775TE, 16-core/32 threads, 100W TDP or
Intel® Xeon®-D2896TER, 20-core/40 threads, 110W TDP
Cache 25Mbyte or
30Mbyte
DRAM DDR4 64-128 GByte quad channel DDR4 SDRAM with ECC
Expansion Slots XMC or MXM
Backplanes SLT6-PAY-4F1Q1H4U1T1S1S1TU2U2T1H-10.6.3-0
MOD6-PAY-4F1Q1H4U1T1S1S1TU2U2T1H-12.6.3-2
I/Os Data plane: Dual 40/100GBASE-KR4 ports
Expansion plane: x16 PCIe Gen4
Control planes: Dual 10GBASE-KR + dual 1000BASE-T ports
x4 PCIe Gen3 / SATAIII for storage
DP++ 1.2 Graphic port
Dual USB2.0 ports
Dual USB3.0 ports
Dual serial lines
8 GPIOs
XMCIOs
Dual SMB/IPMB, JTAG, Power Supplies

Downloads

Datasheets

VX6096 Datasheet
6U VPX Plug-in Card with Intel® Xeon® D-2700/2800 processors for compute intensive applications
[ vx6096_datasheet_v1-0.pdf, 653.09 KB, Jun.10.2024 ]

Manuals

General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]

Services

Kontron Modular Computers S.A.S. Service and Support Offering
This data sheet contains a detailed description of all the support and service offering from Kontron Modular Computers S.A.S, including the Long Term Supply (LTS) Services.
[ support-brochure-03-2018.pdf, 894.71 KB, Jun.28.2018 ]
