VX3800

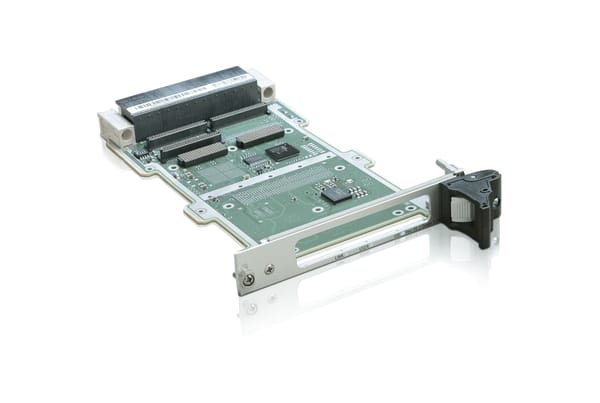

3HE VPX/VPX-REDI PMC/XMC Carrierboard
Mouseover Zoom loading...
Spezifikationen
  • x4 oder x1 PCI-Express XMC Interface #32-bit 66 MHz PCI PMC Interface #konventionell luftgekühlte oder besonders robuste, über Wärmeleitung gekühlte Versionen

Das 3HE VPX Carrierboard VX3800 kann alle Standard XMC/PMC Mezzaninekarten aufnehmen und erweitert damit die I/O-Flexibilität von VPX Systemen. Es bietet einen XMC/PMC Konnektor, der entweder als 32-bit/66 MHz PCI-Bus oder auf dem XMC Steckplatz mit einem x4 oder x1 PCI-Express Link zur VPX Backplane genutzt werden kann. Das VX3800 ist ein Mitglied von Kontrons VITA 46 VPX Ökosystem, das die Implementierung von VPX erleichtert.

Eigenschaften

Dimensions (H x W x D) 99.85 mm x 162.54 mm. 0.8 inch face plate. (1 inch is a built option)
Input Voltage 5V payload power by default on the VPX backplane for 3U/6U compatibility
Interface PMC: PMC rear I/Os on mezzanine J4 are connected to the VPX P2 connector
Temperature VITA 47-Class AC1 and VITA 47-Class CC4
Operation Temperature Standard Commercial: 0° to +55°C; Rugged Conduction-Cooled: -40° to +85°C
Cooling Convection or Conduction
Supply Voltage V(I/O) signaling is +3.3V by default. V(I/O) signaling at 5V is a build option
Shock Standard Commercial: 20g/11 ms Half Sine; Rugged Conduction-Cooled: 40g/11 ms Half Sine
Humidity Standard Commercial: 90% without condensation; Rugged Conduction-Cooled: 95% without condensation
Vibration Standard Commercial: 20/500 Hz: 2g; Rugged Conduction-Cooled: 22/2,000 Hz: 2g

Downloads

Datasheets

VX3800 datasheet
[ vx3800_20170801_datasheet.pdf, 913.7 KB, Aug.31.2017 ]

VME-VPX shortform catalog
[ shortform-vme-vpx.pdf, 1.36 MB, Jun.18.2024 ]

Kontron Modular Computers S.A.S. Service and Support Offering
This data sheet contains a detailed description of all the support and service offering from Kontron Modular Computers S.A.S, including the Long Term Supply (LTS) Services.
[ support-brochure-03-2018.pdf, 894.71 KB, Jun.28.2018 ]

Manuals

VX3800 3U VPX XMC/PMC Carrier User's Guide [eingeschränkter Download]
[ cadta78-vx3800-ug.pdf, 1.07 MB, Sep.11.2017 ]

General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]

White Papers

VXFabric White Paper
[ whitepaper_en_vxfabric-v2-final.pdf, 5.87 MB, Nov.27.2013 ]

Release Notes

VX3800 Hardware Release Notes [eingeschränkter Download]
[ cadta92-vx3800-hrn.pdf, 454.06 KB, Jan.13.2023 ]
