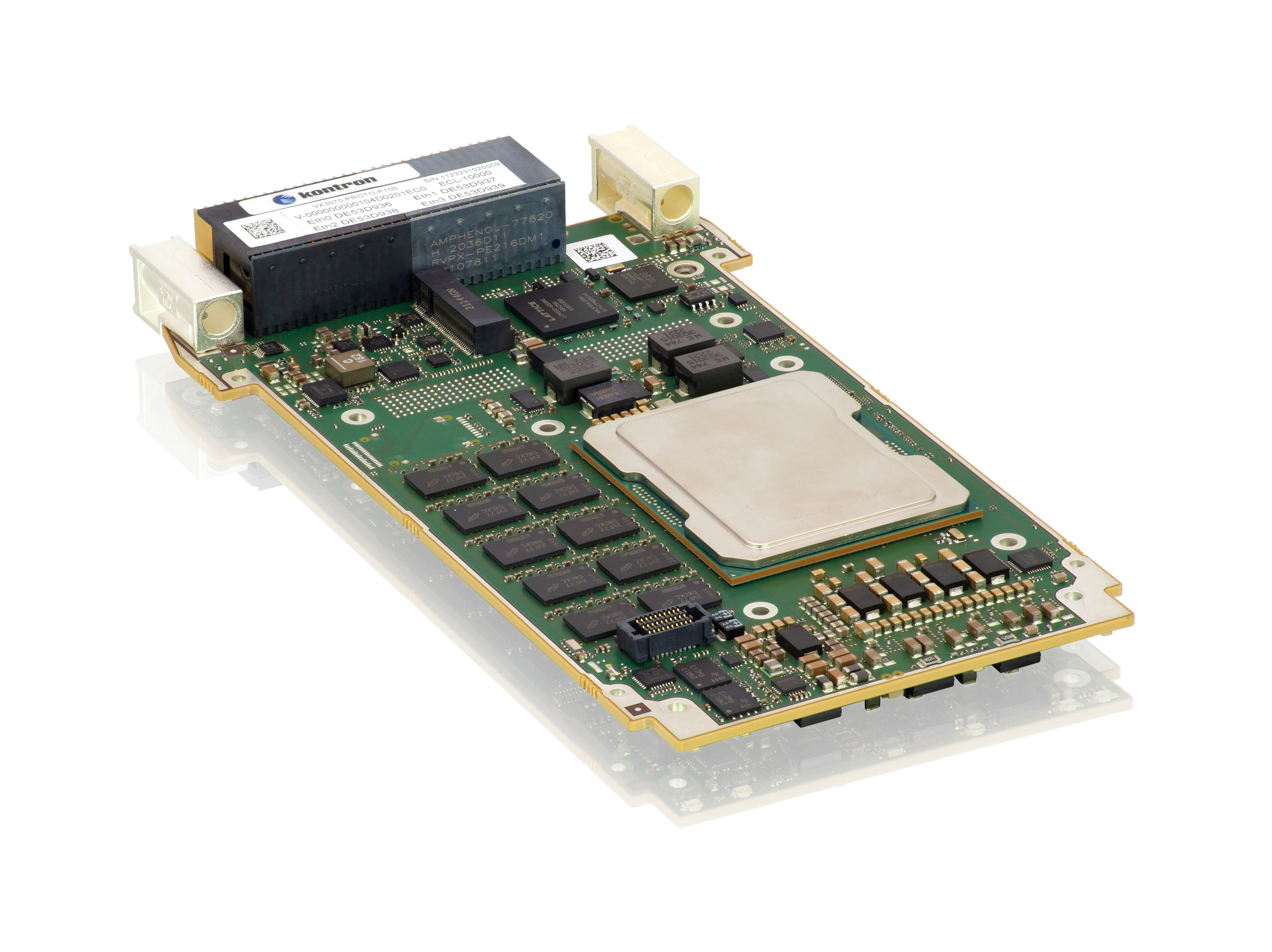

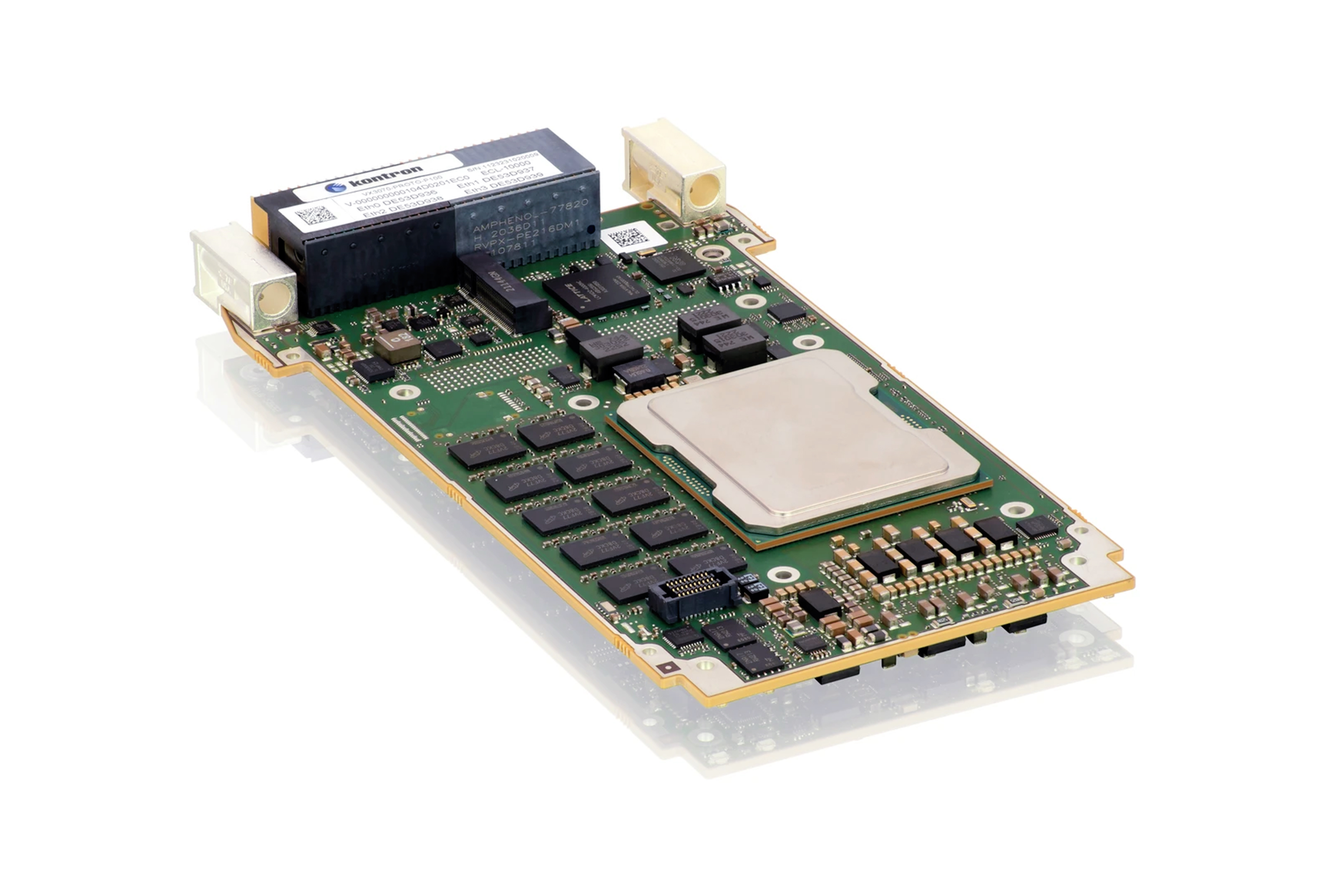

VX307H
SOSA-aligned Intel® 10nm x86 Microserver 3U VPX Blade
- Intel® Xeon® D-2700 processors with 100G Integrated Ethernet
- Up to 20 cores with AVX-512 vector engine
- Security enforced by Hardware Root of Trust
- VITA48 cooling builds with VITA 47 CC3 support
- Designed in accordance with SOSA™ requirements
Produktinformationen
Outperforming the previous Intel® Xeon® D-1500 SOC silicon, the 10nm SoC of the VX307H targets a new generation of microserver and parallel computing node, with superb performance with a reasonable power budget.
Technische Daten
| Processor | Intel® Xeon® D-2775TE 16 cores (25M Cache, up to 3.10 GHz) 100W TDP Intel® Xeon® D-2896TER 20 cores (30M Cache, up to 3.20 GHz) 110W TDP |
|---|---|
| Cache | 25Mbyte or 30Mbyte |
| DRAM DDR4 | Up to 64 GB dual channel DDR4 SDRAM running at 2400 MT/s, with ECC, soldered |
| Expansion Slots | Optional XMC VITA42/VITA61 slot (AFT variant) |
| Backplanes | SLT3-PAY-1F1U1S1S1U1U2F1H-14.6.11-0 & SLT3-PAY-1F1U1S1S1U1U4F1J-14.6.13-0 Slots Profiles MOD3-PAY-1F1U1S1S1U1U2F1H-16.6.11-11 & MOD3p-PAY-1F1U1S1S1U1U4F1J-16.6.13-1 Modules Profiles |
